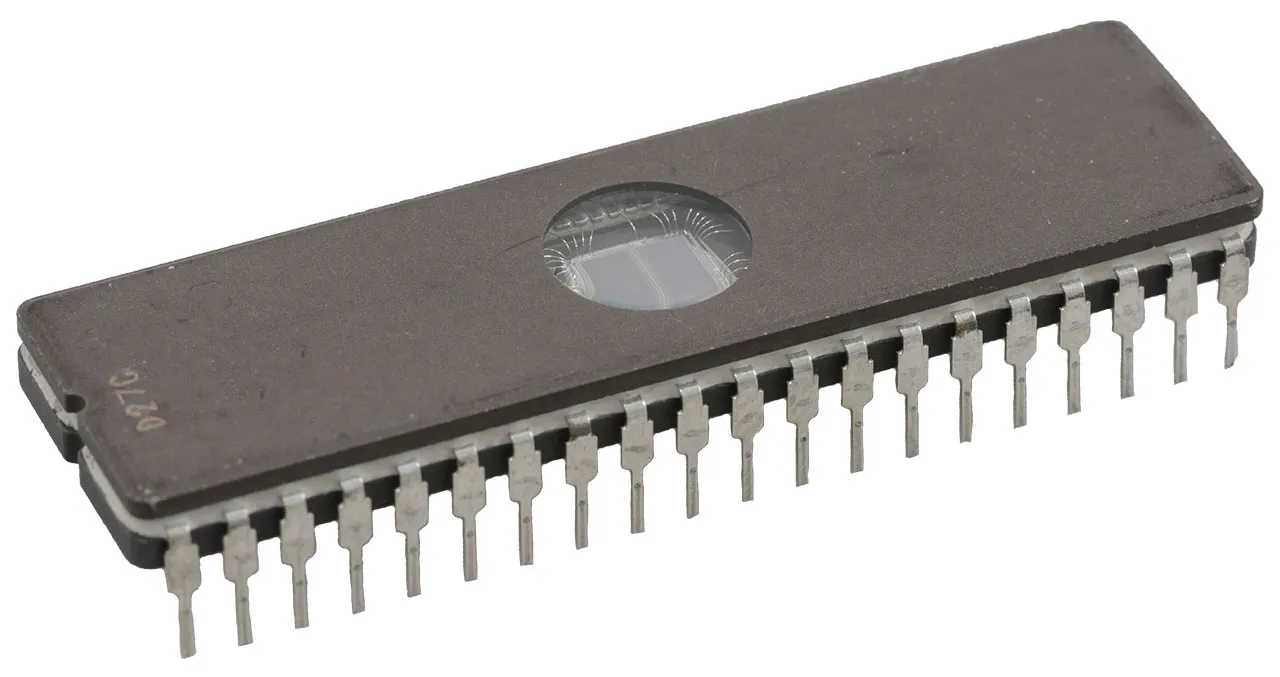

IC EPROM Memory 4Mb (256K x 16) Parallel 120ns DIP-40 UV with Window

Specifications

  • Memory Type: Non-Volatile
  • Memory Format: EPROM
  • Technology: EPROM - UV
  • Memory Size: 4Mb (256K x 16)
  • Memory Interface: Parallel
  • Access Time: 120 ns
  • Voltage - Supply: 4.75 V to 5.25 V
  • Operating Temperature: 0°C to 70°C (TA)
  • Mounting Type: Through Hole
  • Package: DIP-40 (0.600", 15.24mm)

Dimensions & Appearance

Mounting:Through Hole

Operating conditions

Minimum Operating Temperature:0°C
Maximum Operating Temperature:70°C

Packaging

Package:DIP-40

Input

Input Voltage:5V

Output

Output Enable Access Time:60ns

Features

Reprogramming Technique:UV
Screening Level:Commercial
Programming Voltage:12.5V
Memory Density:4Mbit
Interface Type:Parallel
Maximum Random Access Time:120ns
Maximum Operating Current:30mA
Organization:256Kx16
,
