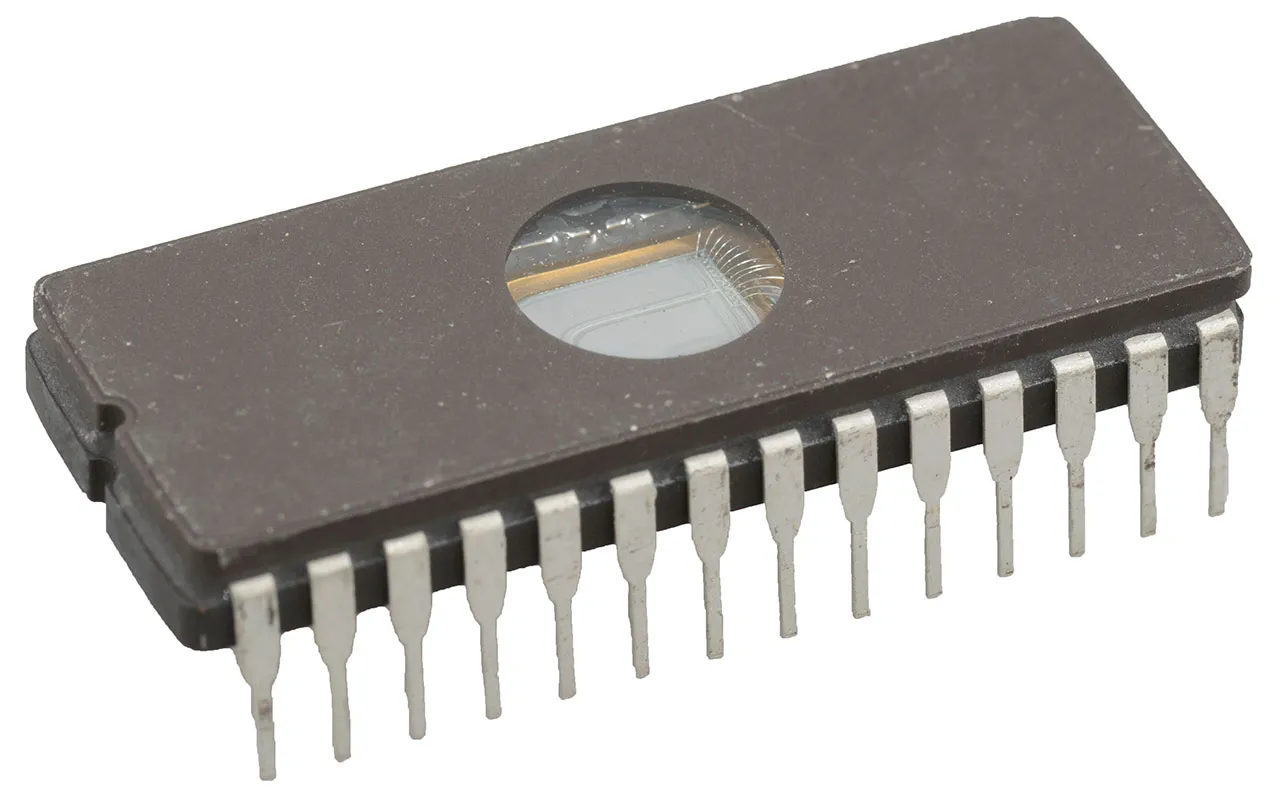

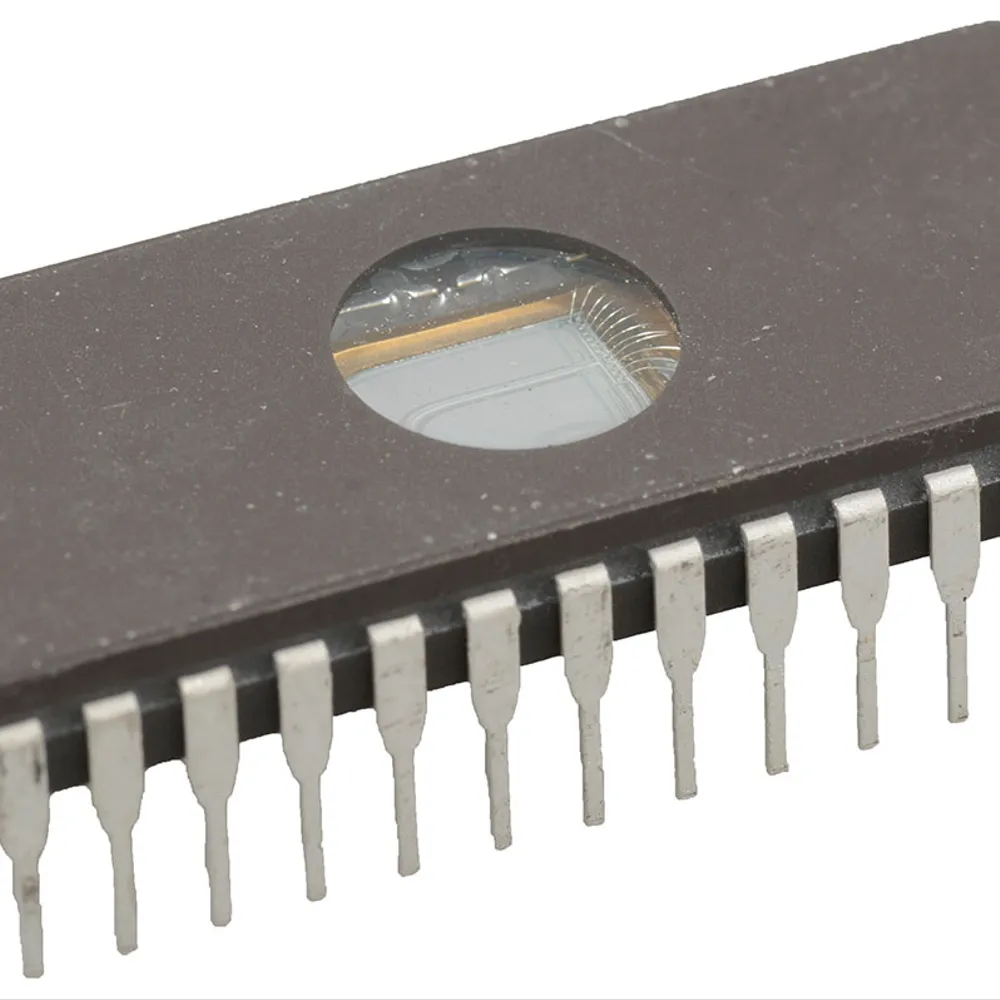

IC EPROM Memory 256Kb (32K x 8) Parallel 90ns 5V UV DIP-28

Specifications

  • Memory Type: Non-Volatile
  • Memory Format: EPROM
  • Technology: EPROM - UV
  • Memory Size: 256 Kb (32K x 8)
  • Memory Interface: Parallel
  • Access Time: 90 ns
  • Voltage - Supply: 5 V
  • Operating Temperature: 0°C to 70°C (TA)
  • Mounting Type: Through Hole
  • Package: 28-CDIP (0.600", 15.24mm) with Window
  • Base Number: AM27C256-95DC

Overview

Ultraviolet erasable (cerdip) Electrically Programmable Read-Only Memory (EPROM). The standard random access time is 90ns.

Dimensions & Appearance

Mounting:Through Hole

Operating conditions

Minimum Operating Temperature:0°C
Maximum Operating Temperature:70°C

Packaging

Package:DIP-28

Input

Input Voltage:5V

Output

Output Enable Access Time:40ns

Features

Reprogramming Technique:UV
Screening Level:Commercial
Programming Voltage:12.75V
Maximum Random Access Time:90ns
Interface Type:Parallel
Organization:32Kx8
Memory Density:256Kbit
Maximum Operating Current:50mA
,
