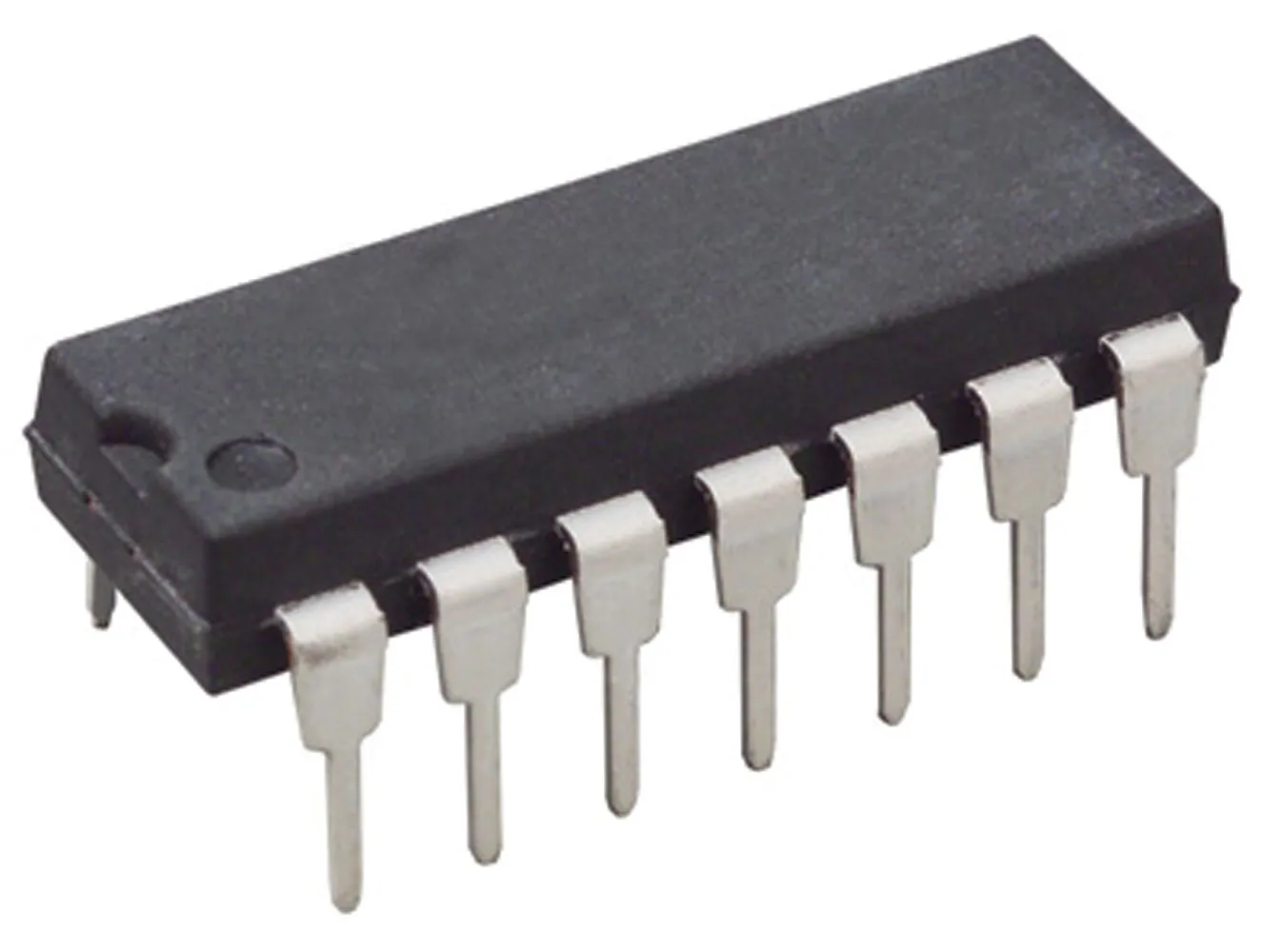

Hex Schmitt Trigger

Specifications

The CD40106B Hex Schmitt Trigger is a monolithic complementary MOS (CMOS) integrated circuit constructed with N and P-channel enhancement transistors. The positive and negative-going threshold voltages, VTa and VTb, show low variation with respect to temperature (typ 0.0005V/°C at VDD e 10V), and hysteresis, VTa b VTb t 0.2 VDD is guaranteed. All inputs are protected from damage due to static discharge by diode clamps to VDD and VSS.

Features

Wide supply voltage range 3V to 15V

High noise immunity 0.7 VDD (typ.)

Low power Fan out of 2 driving 74L

TTL compatibility or 1 driving 74LS

Hysteresis 0.4 VDD (typ.), 0.2 VDD guaranteed
