12 Stage Binary Ripple Counter

Specifications

The CD4040BC is a 12-stage ripple carry binary counter. The counters are advanced one count on the negative transition of each clock pulse. The counters are reset to the zero state by a logical "1" at the reset input independent of clock.

Features

  • High noise immunity: 0.45 VDD (typ.)
  • Schmitt trigger clock input

    • Packaging

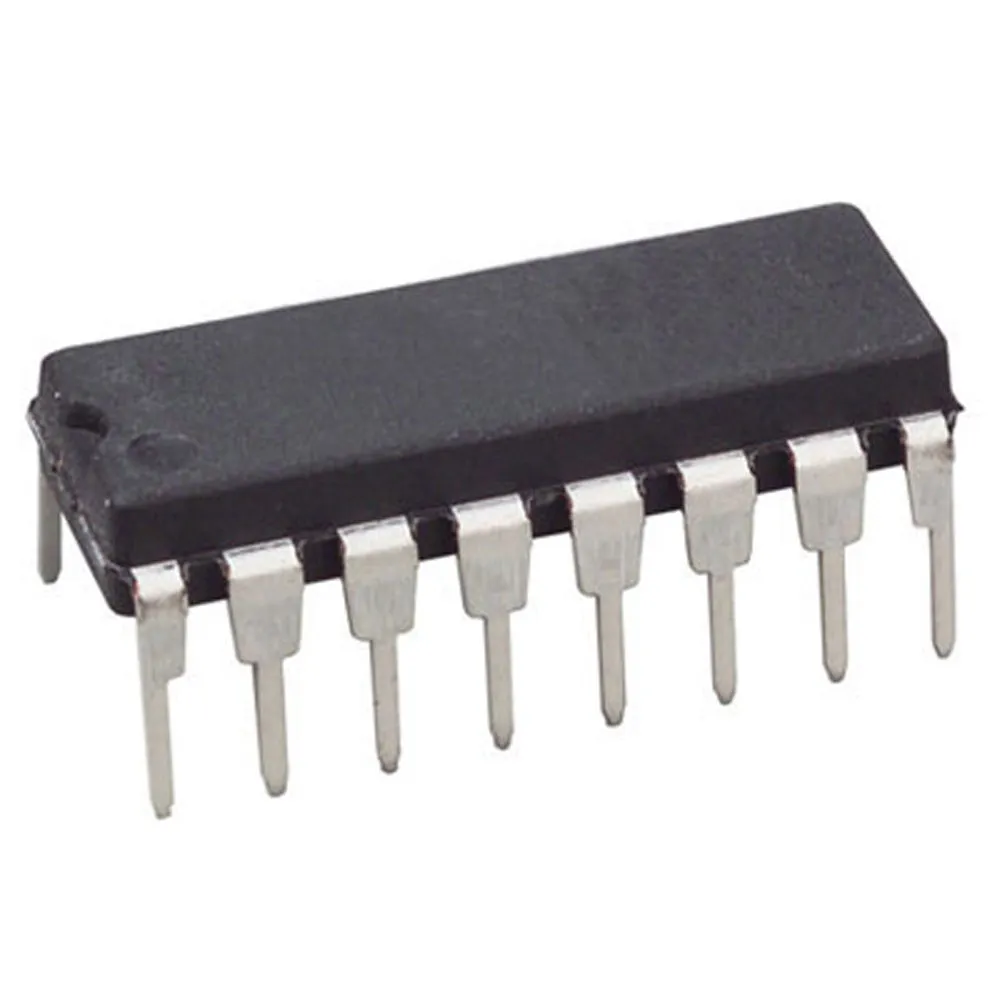

    Package:DIP-16
    ,
