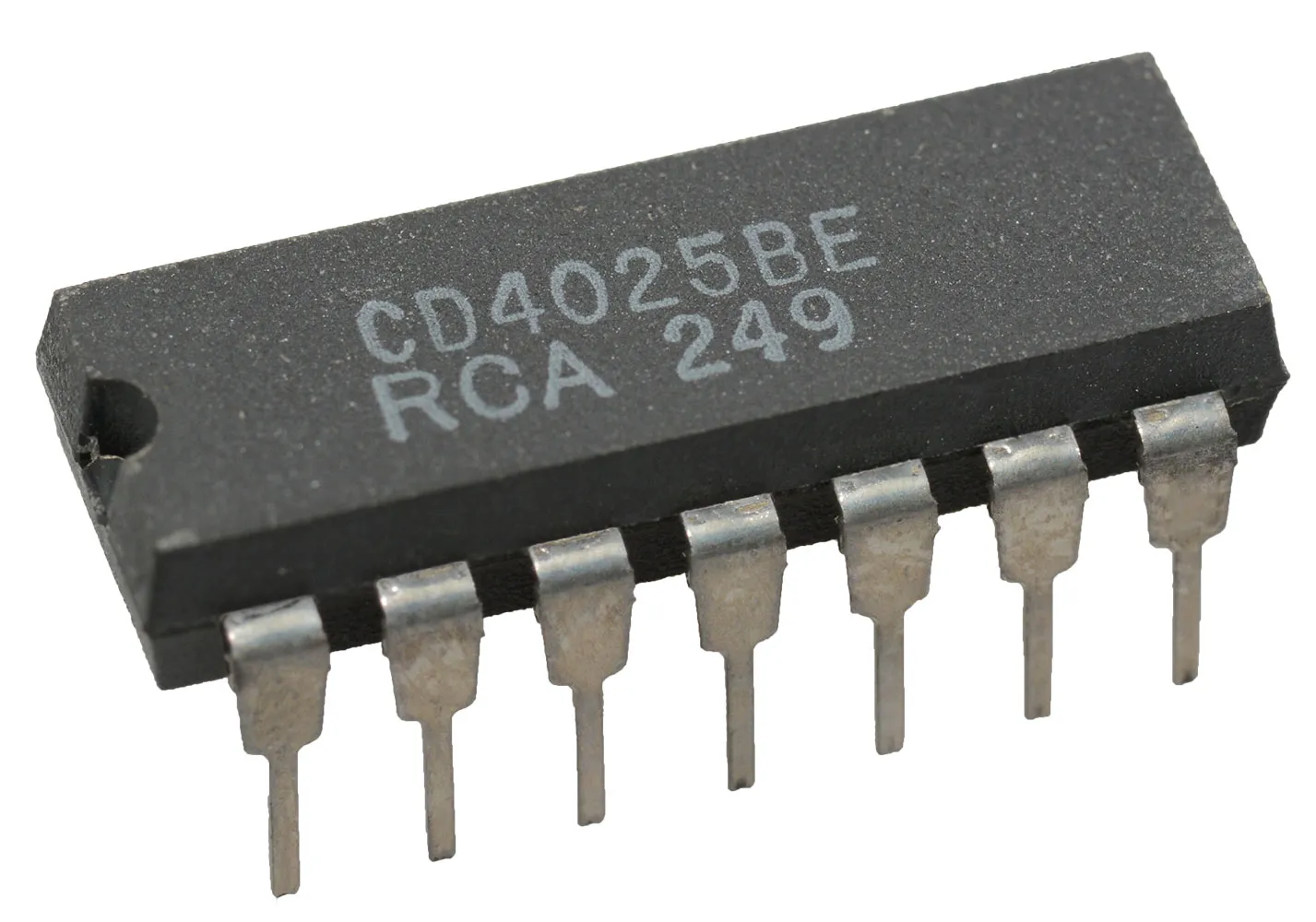

Triple 3-Input NOR Gate IC PDIP-14

Specifications

• Series: 4000B
• Logic Type: NOR Gate
• Number of Circuits: 3
• Number of Inputs: 3
• Voltage - Supply: 3 V to 18 V
• Current - Quiescent (Max): 1 µA
• Current - Output High, Low: 3.4 mA, 3.4 mA
• Logic Level - Low: 1.5 V to 4 V
• Logic Level - High: 3.5 V to 11 V
• Max Propagation Delay @ V, Max CL: 90 ns @ 15 V, 50 pF
• Operating Temperature: -55°C to 125°C
• Mounting Type: Through Hole
• Package: 14-DIP (0.300", 7.62mm)
• Base Number: 4025
