DUAL QUAD BILATERAL SWITCH

Specifications

The CD4016BC is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals. It is pin-for-pin compatible with CD4066BC.

Applications

  • Analog signal switching/multiplexing
  • Signal gating
  • Squelch control
  • Chopper
  • Modulator/Demodulator
  • Commutating switch
  • Digital signal switching/multiplexing
  • CMOS logic implementation
  • Analog-to-digital/digital-to-analog conversion
  • Digital control of frequency, impedance, phase, and analog-signal gain

    • Packaging

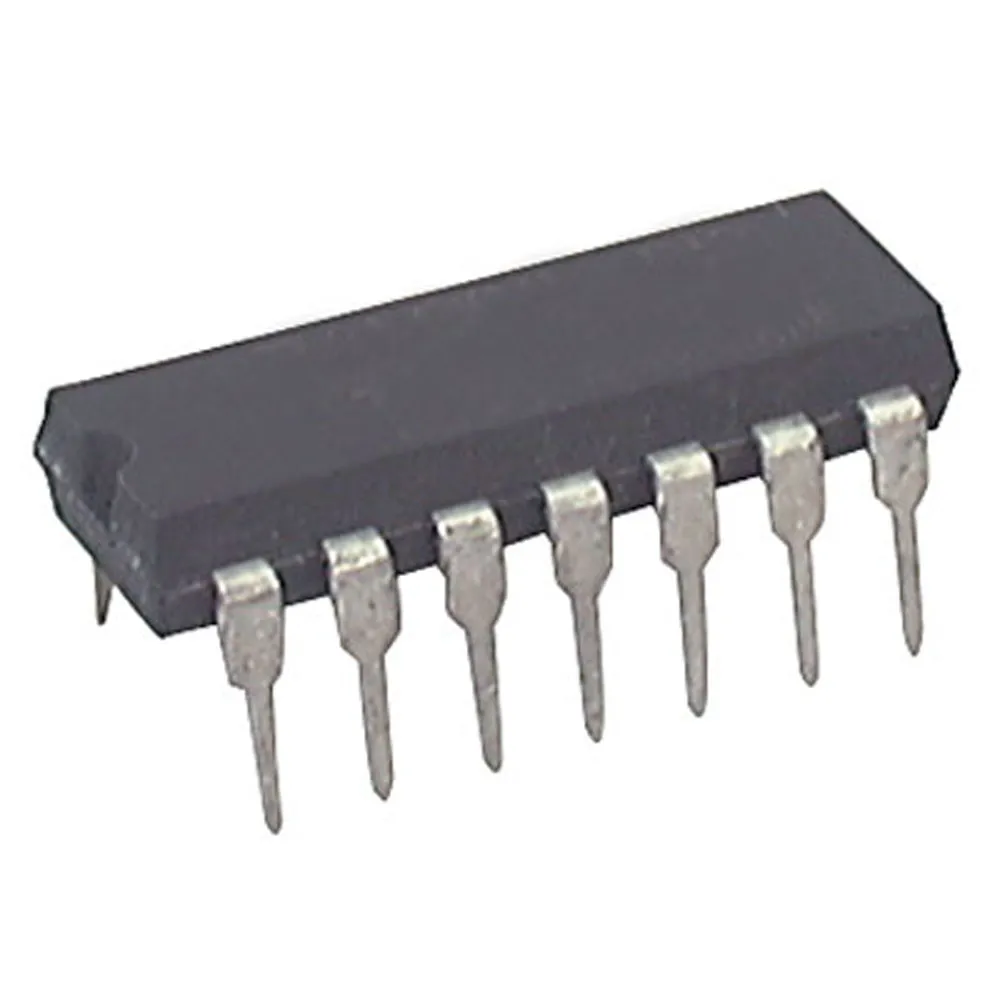

    Package:DIP-14
    ,
