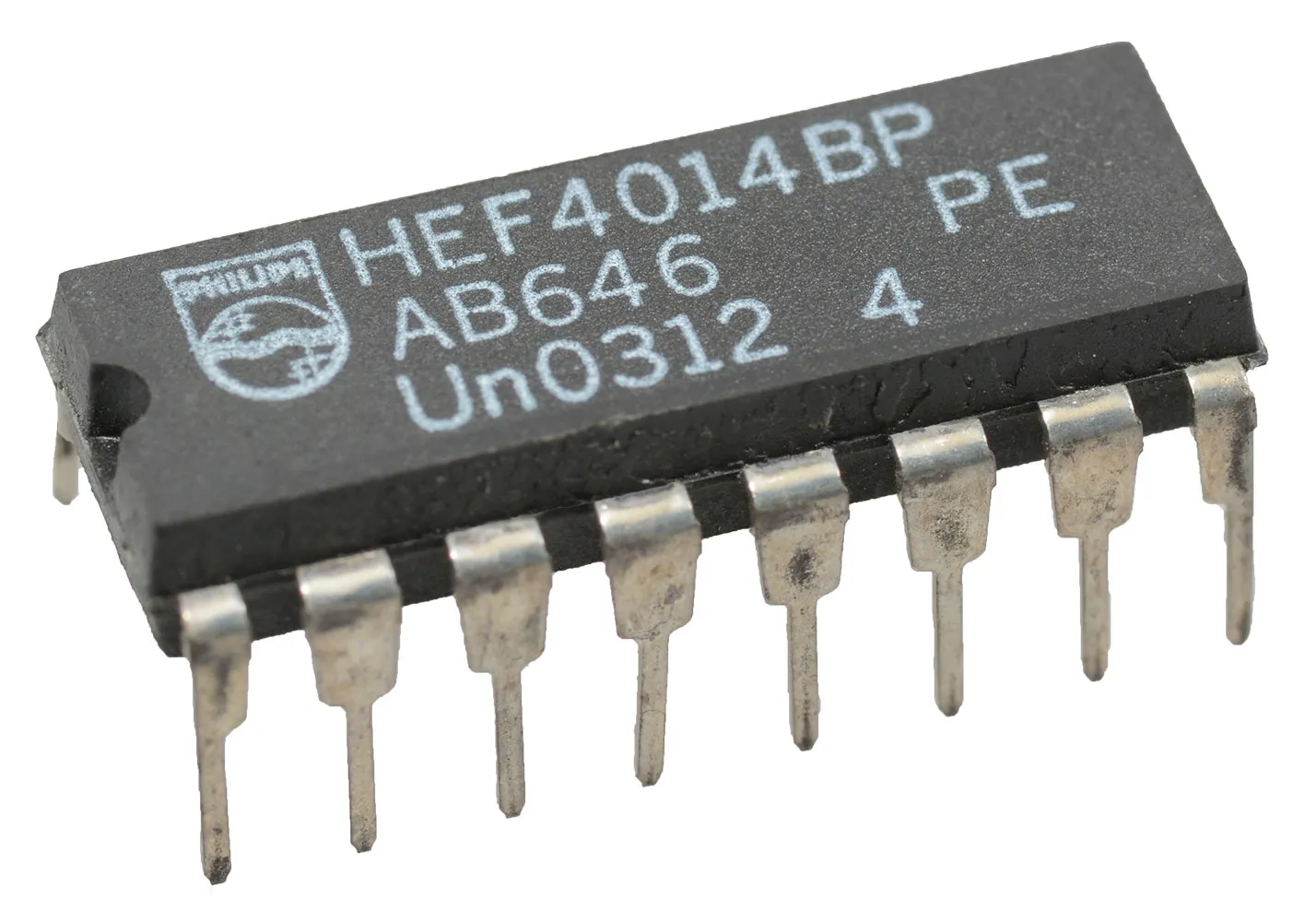

CMOS 8-Stage Static Shift Register Synchronous Parallel or Serial In Serial Out DIP-16

Specifications

  • High voltage type
  • Synchronous parallel or serial input/serial output
  • Series: 4000B
  • Logic Type: Shift Register
  • Output Type: Push-Pull
  • Number of Elements: 1
  • Number of Bits per Element: 8
  • Function: Parallel or Serial to Serial
  • Voltage - Supply: 3 V to 18 V
  • Operating Temperature: -55°C to 125°C
  • Mounting Type: Through Hole
  • Package: 16-DIP (0.300", 7.62mm)
  • Base Number: 4014

Packaging

Package:DIP-16
,
