Universal Synchronous Asynchronous Receiver Transmitter

The MSM82C51A-2 is a USART (Universal Synchronous Asynchronous Receiver Transmitter) for serial data communication. As a peripheral device of a microcomputer system, the MSM82C51A-2 receives parallel data from the CPU and transmits serial data after conversion. This device also receives serial data from the outside and transmits parallel data to the CPU after conversion. The MSM82C51A-2 configures a fully static circuit using silicon gate CMOS technology. Therefore, it operates on extremely low power at 100 mA (max) of standby current by suspending all operations.

Features:

  • Wide power supply voltage range from 3 V to 6 V
  • Wide temperature range from -40°C to 85°C
  • Synchronous communication up to 64 Kbaud
  • Asynchronous communication up to 38.4 Kbaud
  • Transmitting/receiving operations under double buffered configuration.
  • Error detection (parity, overrun and framing)

    • Product Identification

    Product Type:UART
    Family:MSM82C51A

    Dimensions & Appearance

    Width:13.7mm
    Height:4.57mm (Max)
    Product Length:36.7mm
    Mounting:Through Hole

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:85°C

    Packaging

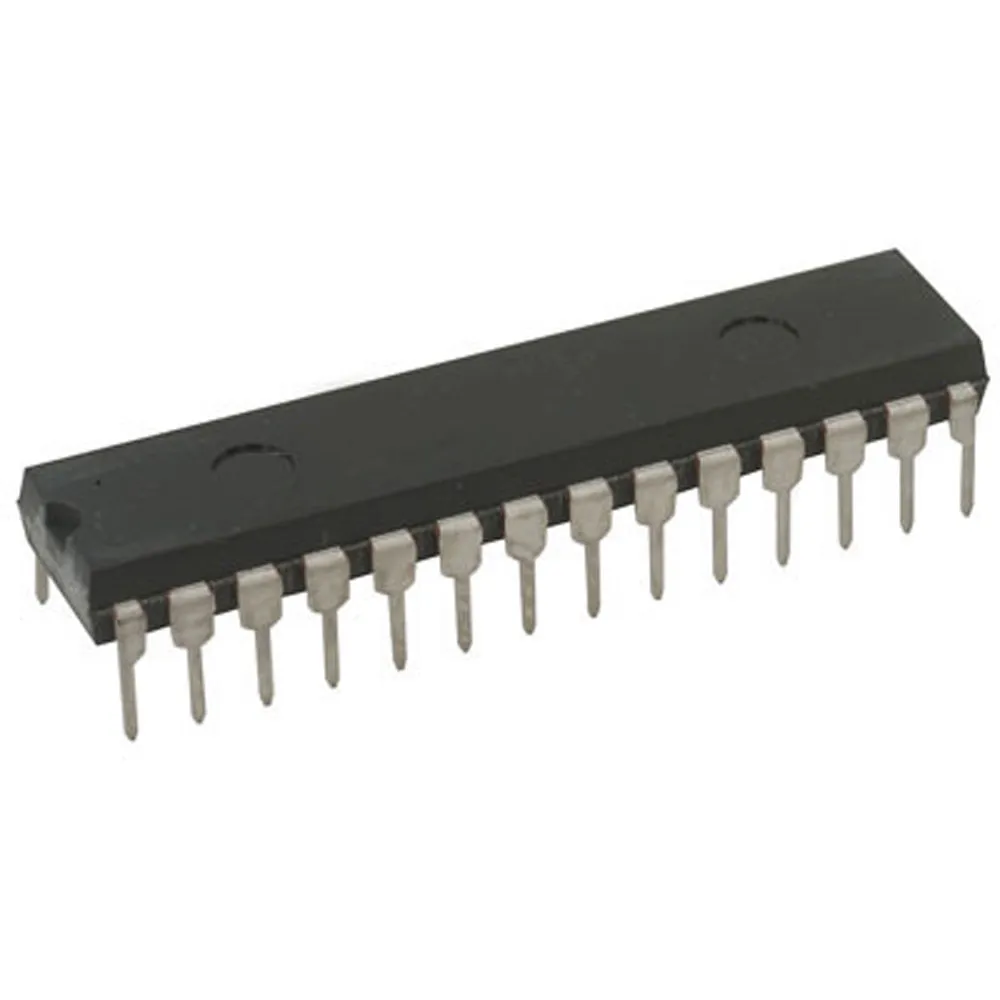

    Package:DIP-28

    Input

    Maximum Input Voltage:5.5V
    Minimum Input Voltage:4.5V
    Input Voltage:5V
    Maximum Input Current:5mA

    Features

    Number of Channels per Chip:1
    Receive FIFO:9999
    Transmit FIFO:9999
    Transmitter and Receiver FIFO Counter:No
    Pins:28
    ,
