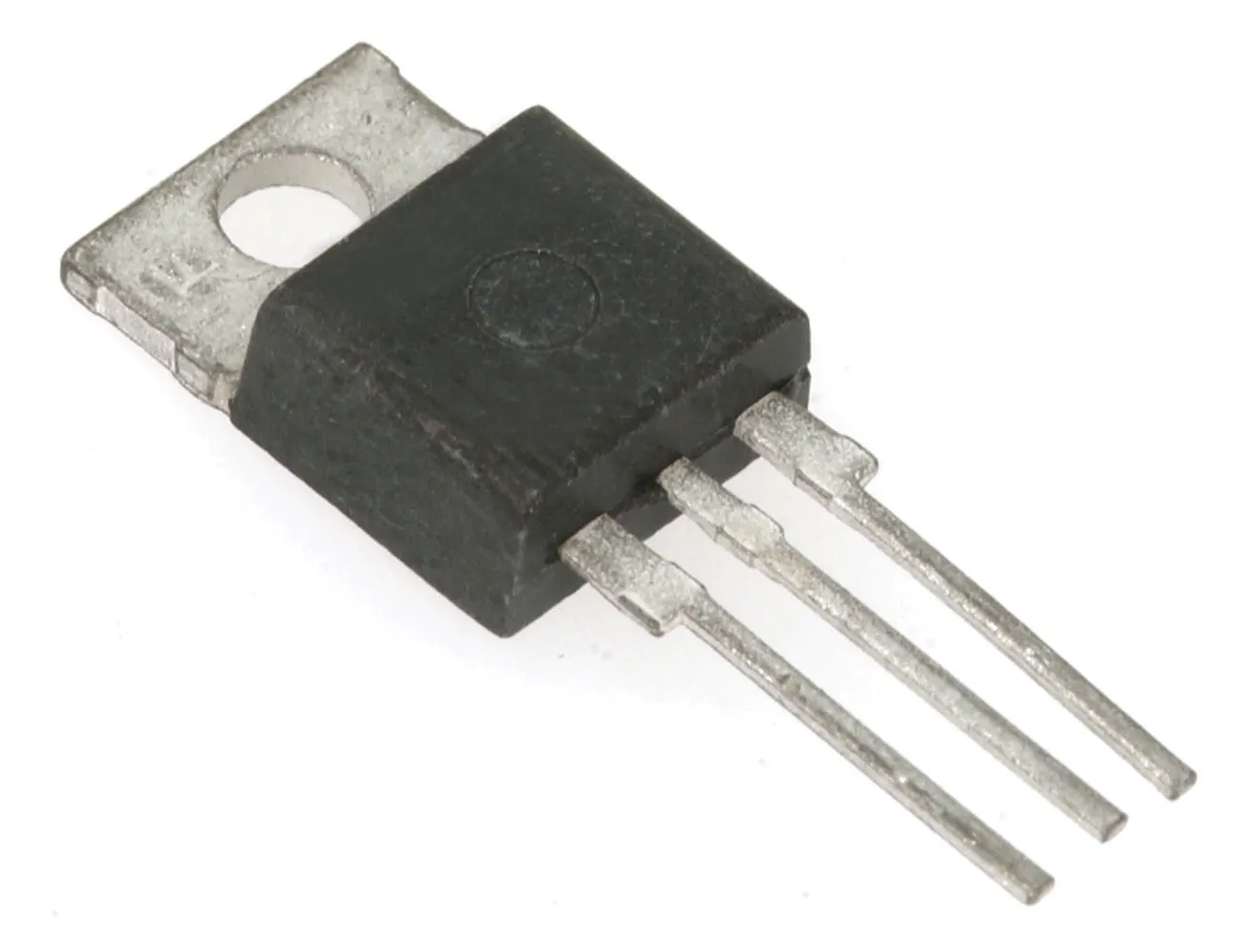

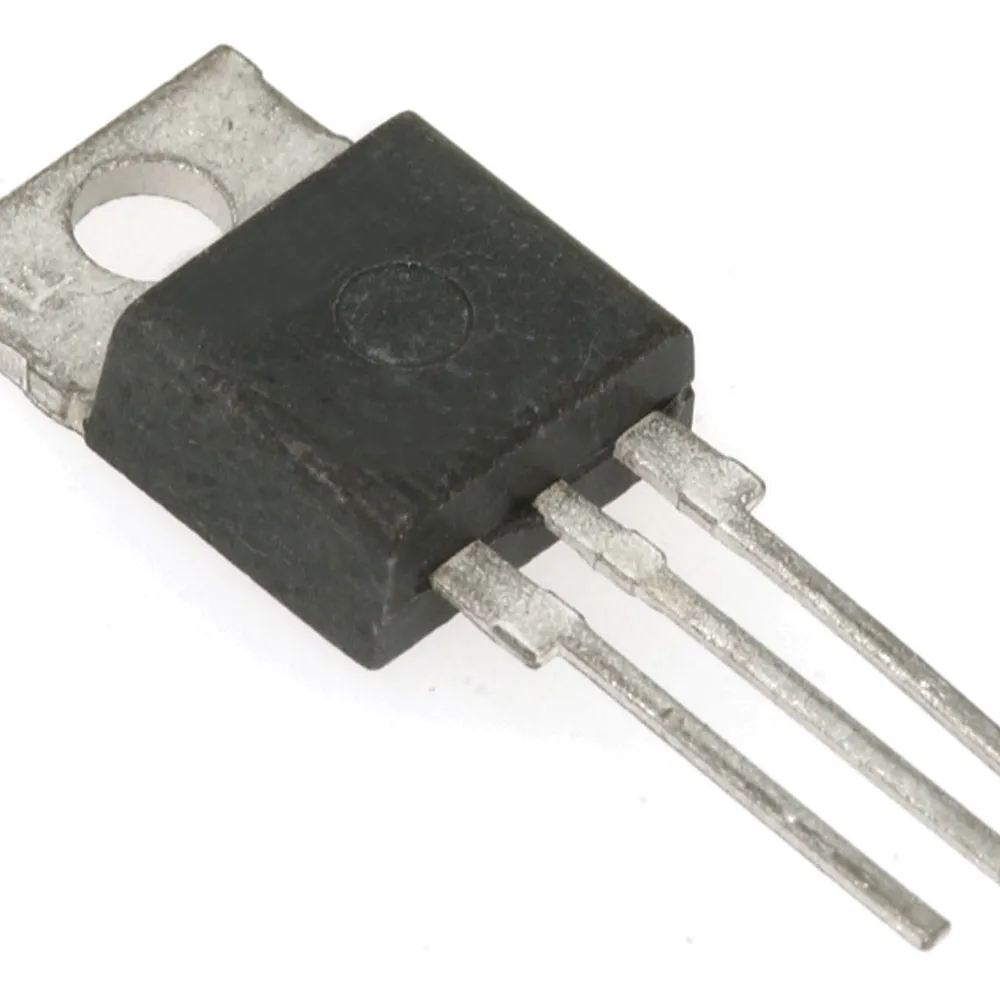

Standard Regulator

General Description

The LM341 and LM78MXX series of three-terminal positive voltage regulators employ built-in current limiting, thermal shutdown, and safe-operating area protection which makes them virtually immune to damage from output overloads.With adequate heatsinking, they can deliver in excess of 0.5A output current. Typical applications would include local (on-card) regulators which can eliminate the noise and degraded performance associated with single-point regulation

Features

Output current in excess of 0.5A

No external components

Internal thermal overload protection

Internal short circuit current-limiting

Output transistor safe-area compensation
