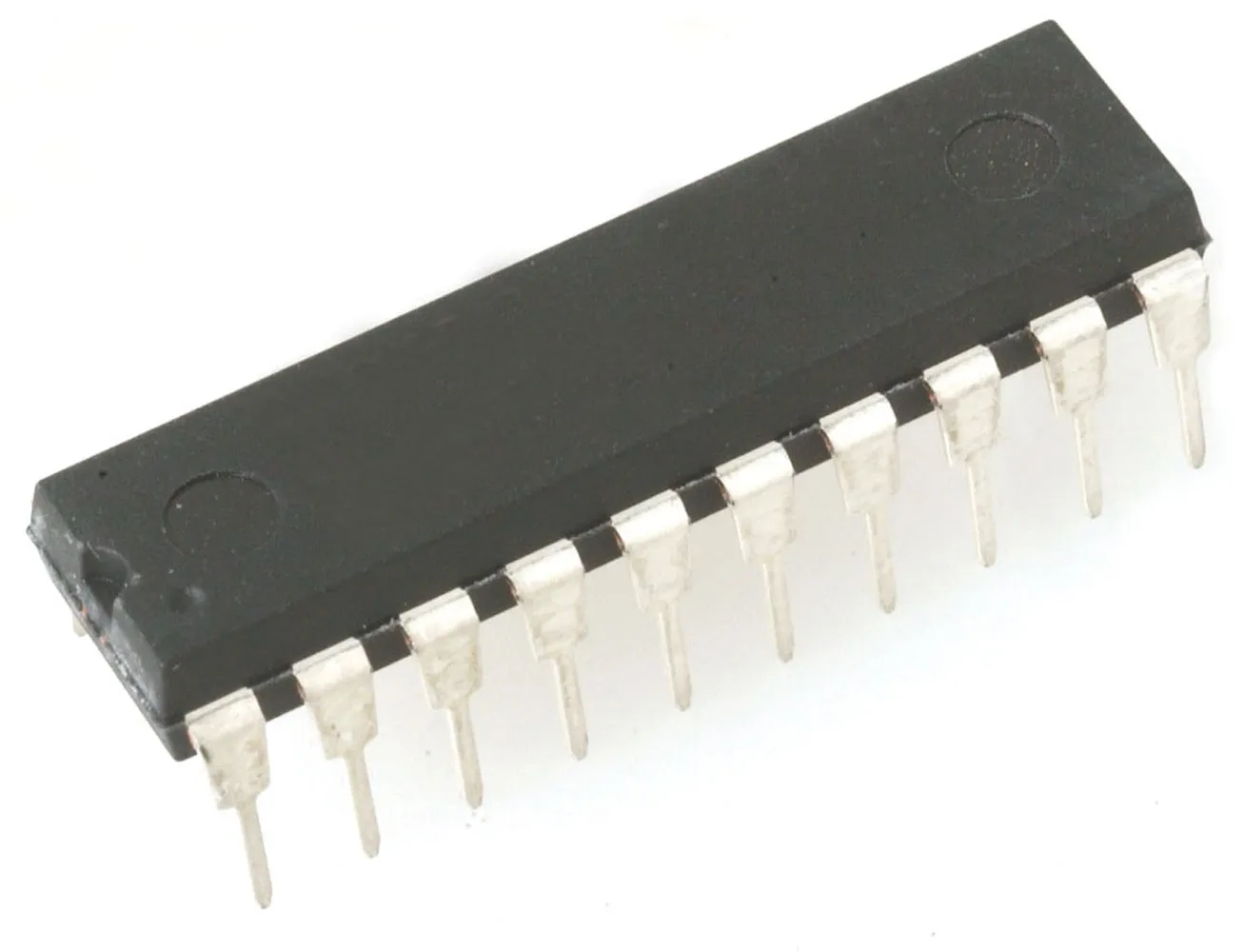

Octal D-Type Flip-Flop

Specifications

The SN54/ 74LS273 is a high-speed 8-Bit Register. The register consists of eight D-Type Flip-Flops with a Common Clock and an asynchronous active LOW Master Reset.

8-Bit High Speed Register

Parallel Register

Common Clock and Master Reset

Input Clamp Diodes Limit High-Speed Termination Effects
