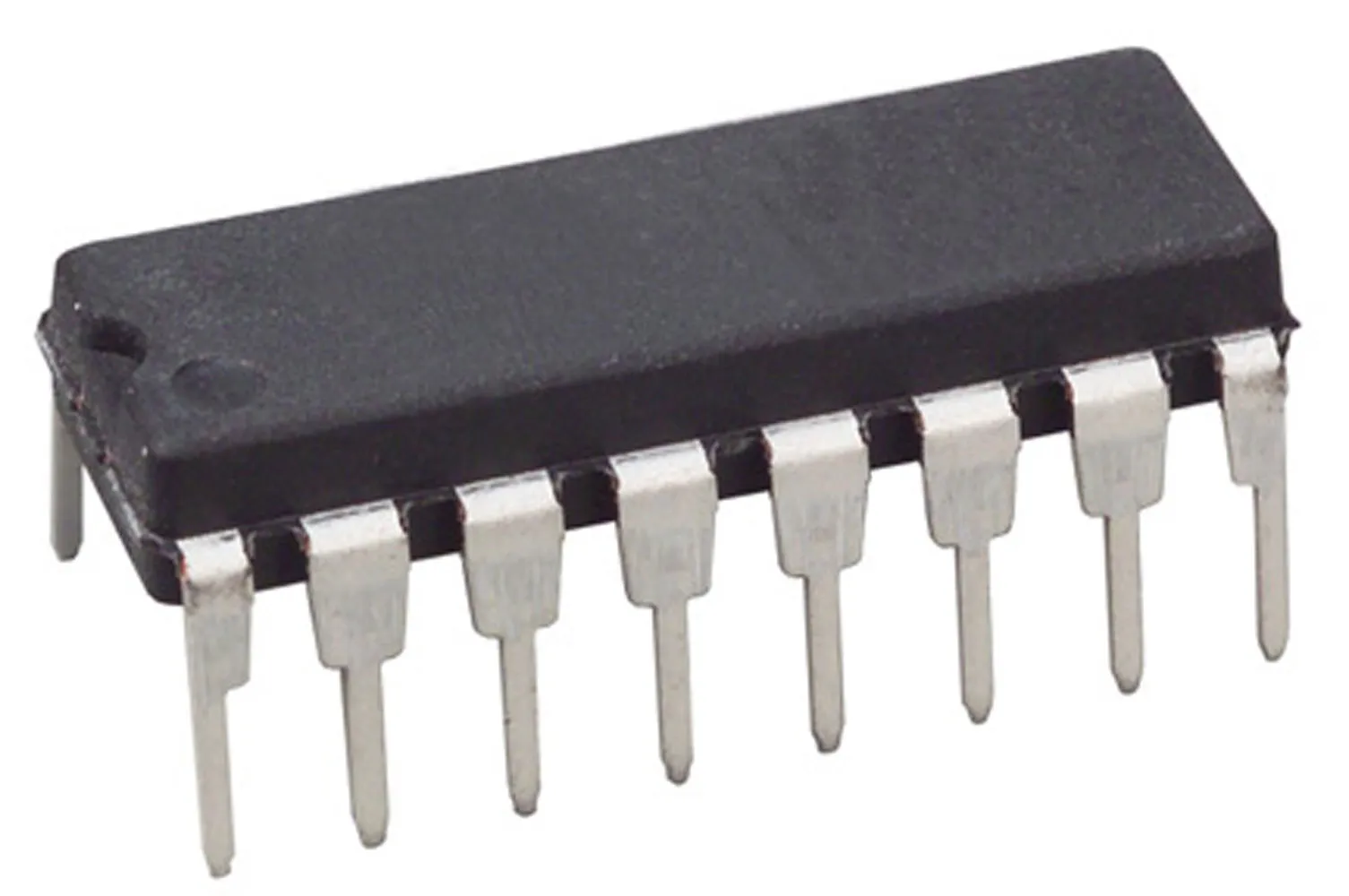

Dual 1-of-4 Line Data Selectors/Multiplexers

Specifications

Each of these data selectors/multiplexers contains inverters and drivers to supply fully complementary, on-chip, binary decoding data selection to the AND-OR invert gates. Separate strobe inputs are provided for each of the two four-line sections.

Features

Permits multiplexing from N lines to 1 line

Performs at parallel-to-serial conversion

Strobe (enable) line provided for cascading (N lines to n lines)

High fan-out, low impedance, totem pole outputs

Typical power dissipation: 31mW
