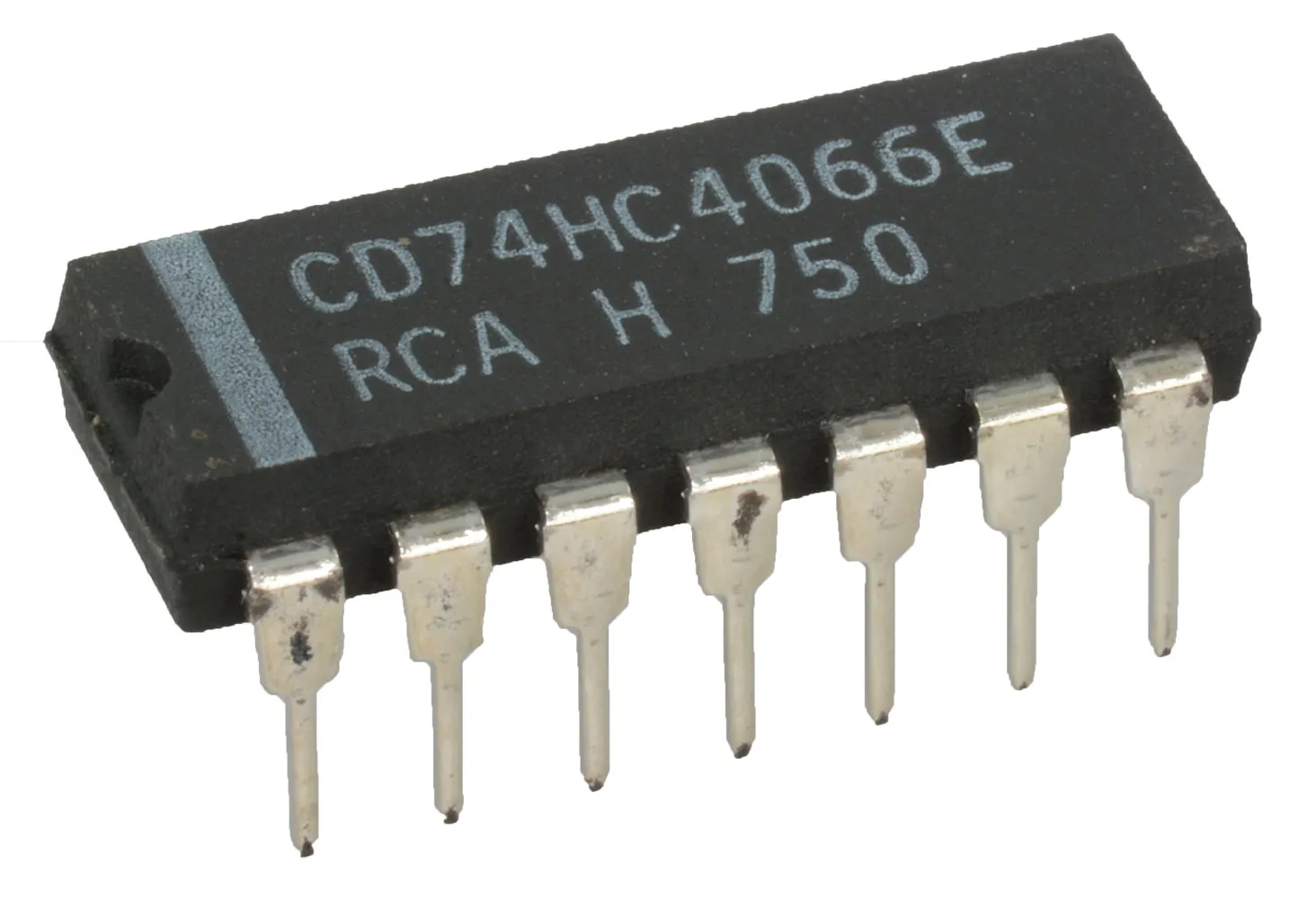

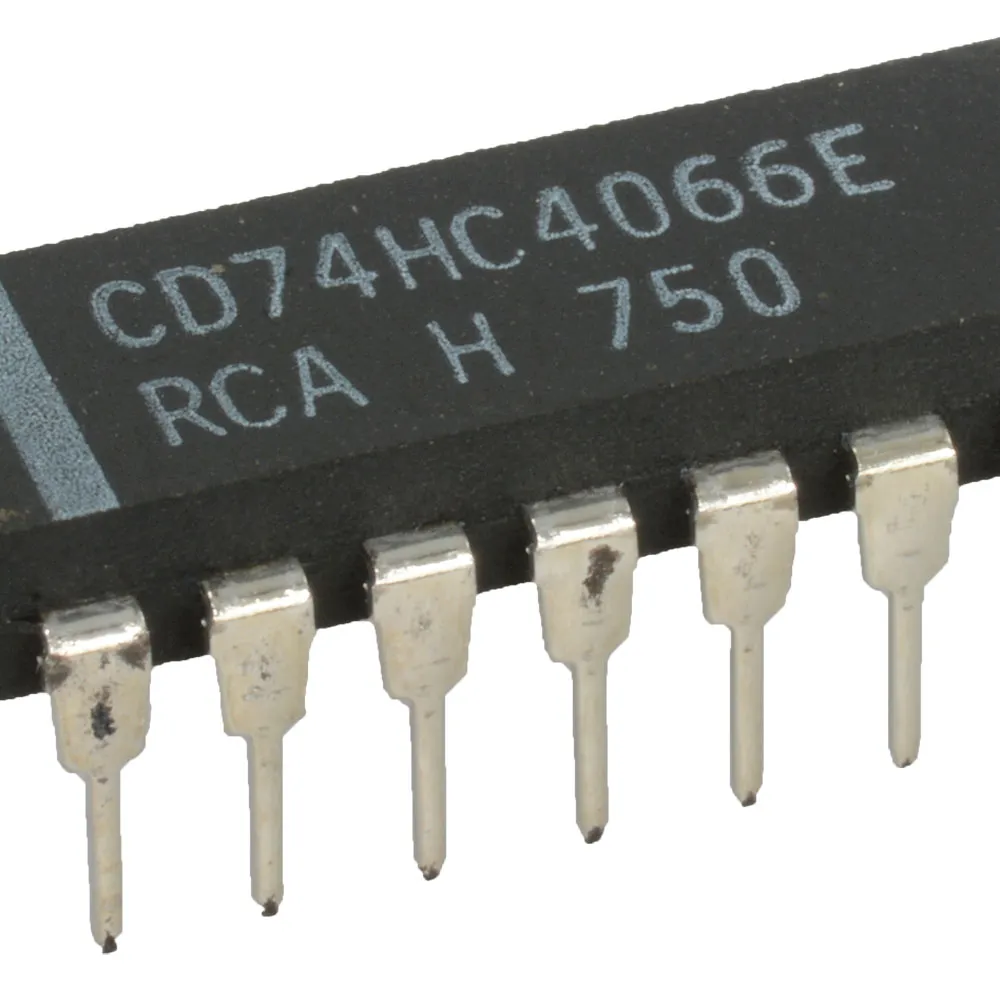

74HC4066 Quad Analog Switch

The MM74HC4066 devices are digitally controlled analog switches utilizing advanced silicon-gate CMOS technology. These switches have low "ON" resistance and low "OFF" leakages.

Specifications

• Quad analog switch
• Typical switch enable time: 15 ns
• Wide analog input voltage range: 0–12V
• Low quiescent current: 80 mA maximum (74HC)
• Matched switch characteristics
• Individual switch controls
• DIP-14
