Hex Schmitt Trigger Inverter (CD40106)

Specifications

The MM74C14 Hex Schmitt Trigger is a monolithic complementary MOS (CMOS) integrated circuit constructed with N- and P-channel enhancement transistors. The positive and negative going threshold voltages VT+ and VT-, show low variation with respect to temperature (typ. 0.0005V/°C at VCC = 10V), and hysteresis, is guaranteed. All inputs are protected from damage due to static discharge by diode clamps to VCC and GND.

Features

  • Wide supply voltage range: 3.0V to 15V
  • High noise immunity: 0.70 VCC (typ.)
  • Low power: TTL compatibility: 0.4 VCC (typ.) 0.2 VCC guaranteed
  • Hysteresis: 0.4 VCC (typ.): 0.2 VCC guaranteed

    • Product Identification

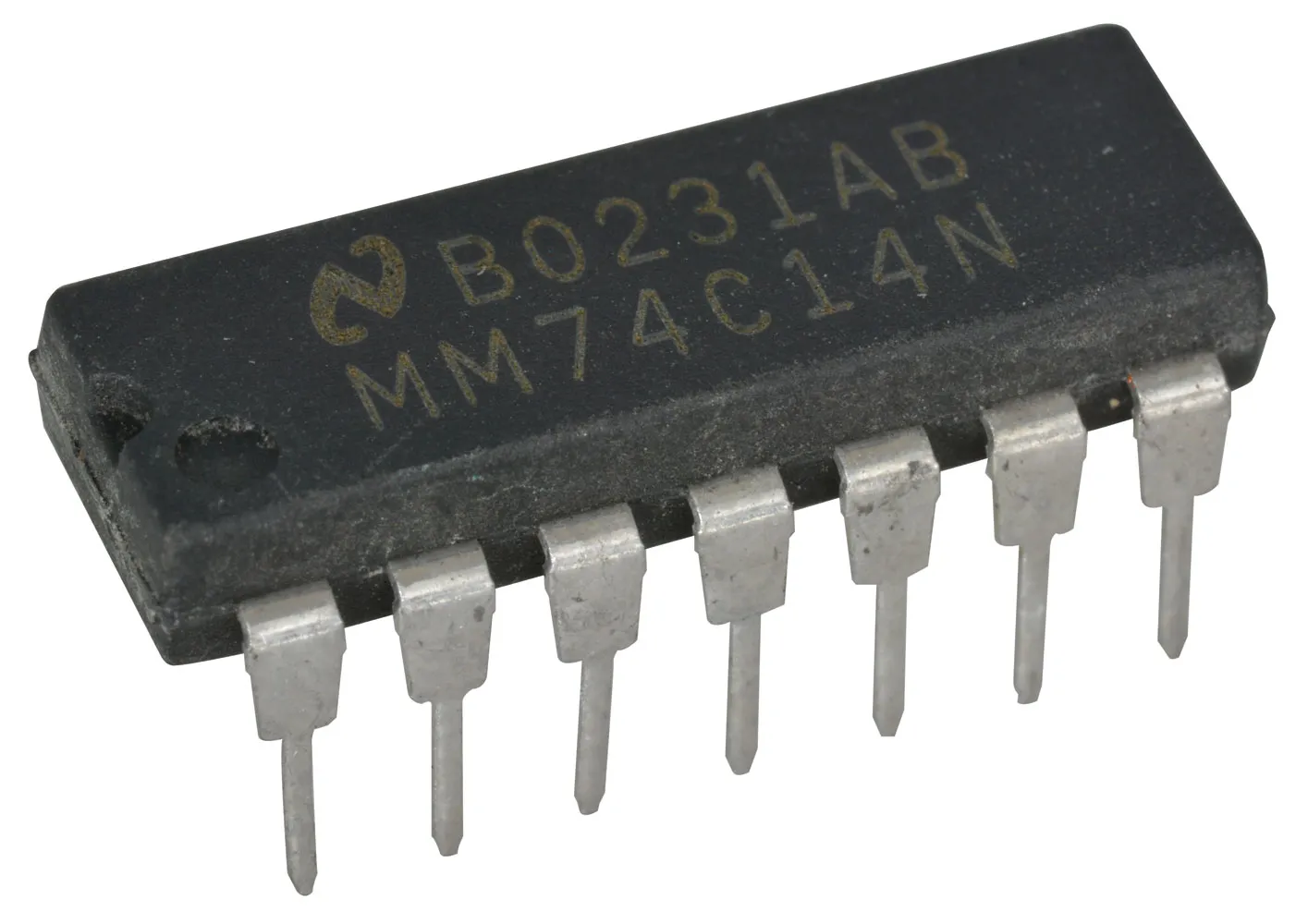

    Product Type: Inverter IC 6-Channel Schmitt Trigger

    Packaging

    Package:DIP-14
    ,
