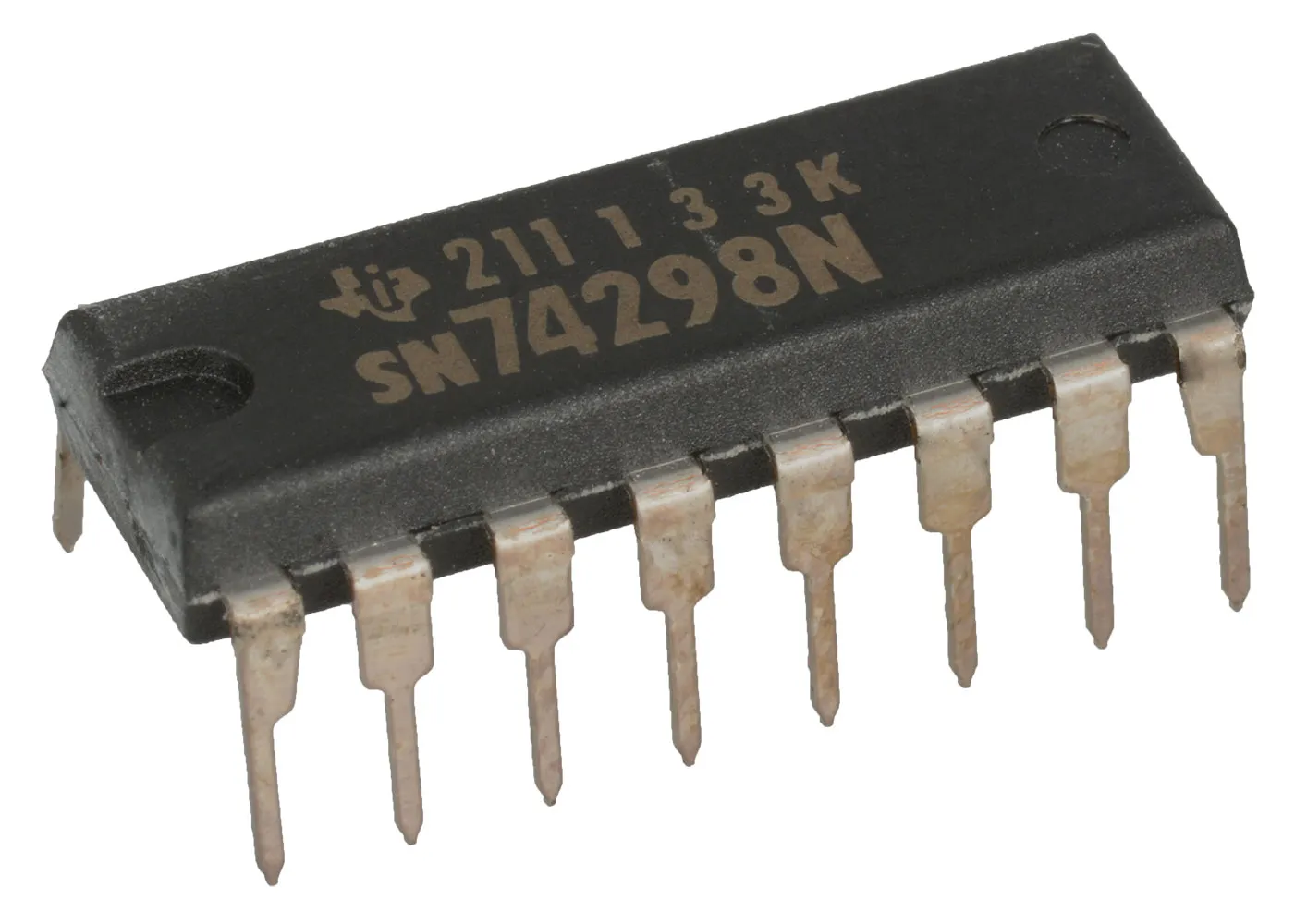

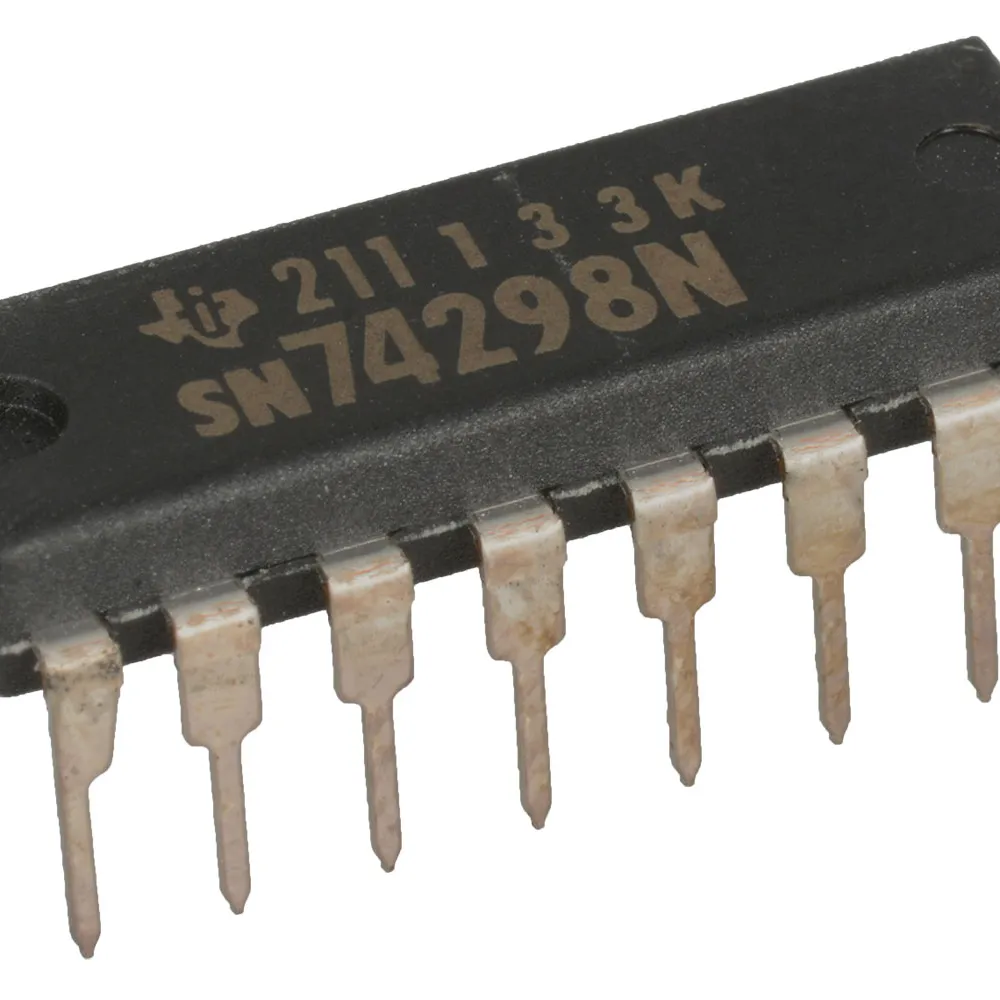

Quad 2-Input Multiplexers with Storage

Specifications

  • DIP-16
  • Selects one of two 4-Bit data sources and stores data synchronously with system clock
  • Applications:
  • Dual source for operands and constants in arithmetic processor; can release processor register files for acquiring new data
  • Implement separate registers capable of parallel exchange of contents yet retain external load capability
  • Universal type register for implementing various shift patterns; even has compound left-right capabilities

    • Packaging

    Package:DIP-16
    ,
