DUAL RETRIGGERABLE ONE-SHOT

The DM74123 is a dual retriggerable monostable multivibrator capable of generating output pulses from a few nano-seconds to extremely long duration up to 100% duty cycle


Features:

• Retriggerable to 100% duty cycle
• DC triggered from active-HIGH transition or active-LOW transition inputs
• Direct reset terminates output pulse
• Compensated for VCC and temperature variations
• DTL, TTL compatible
• Input clamp diodes

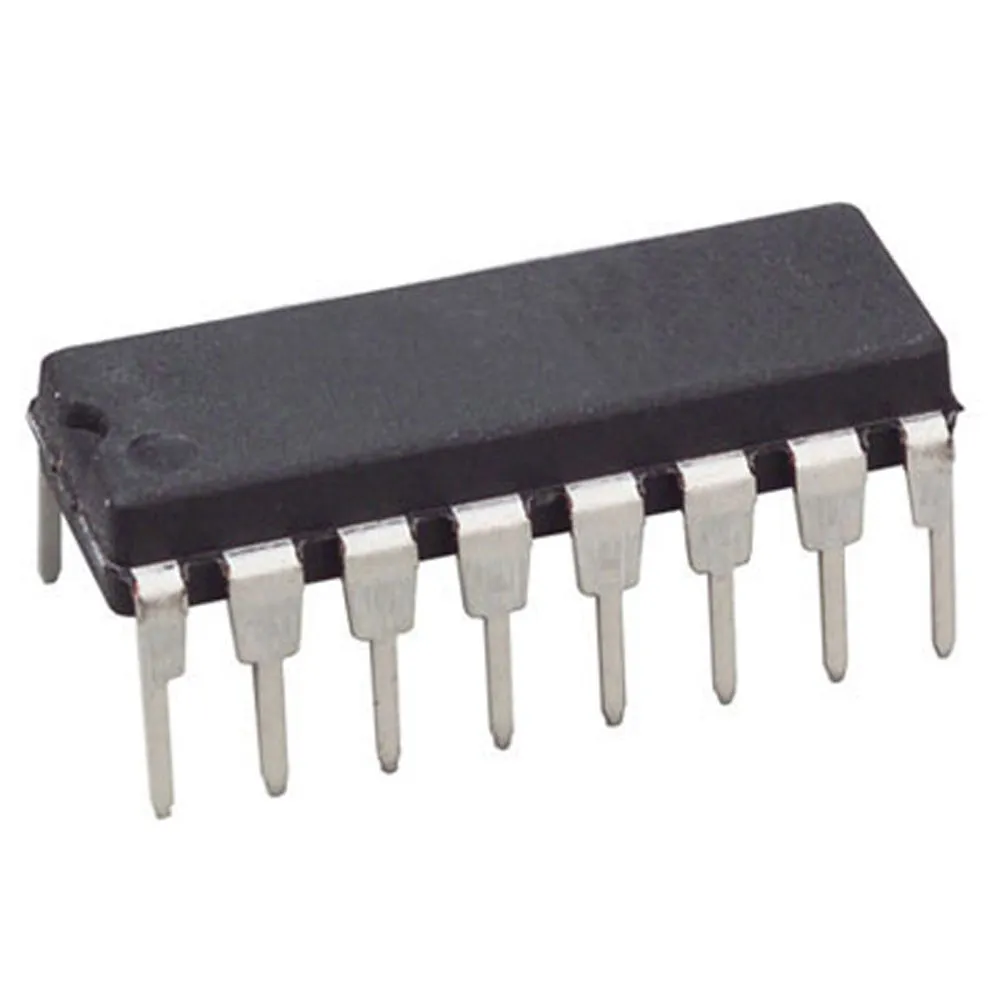

• DIP-16 configuration (16 pins)
