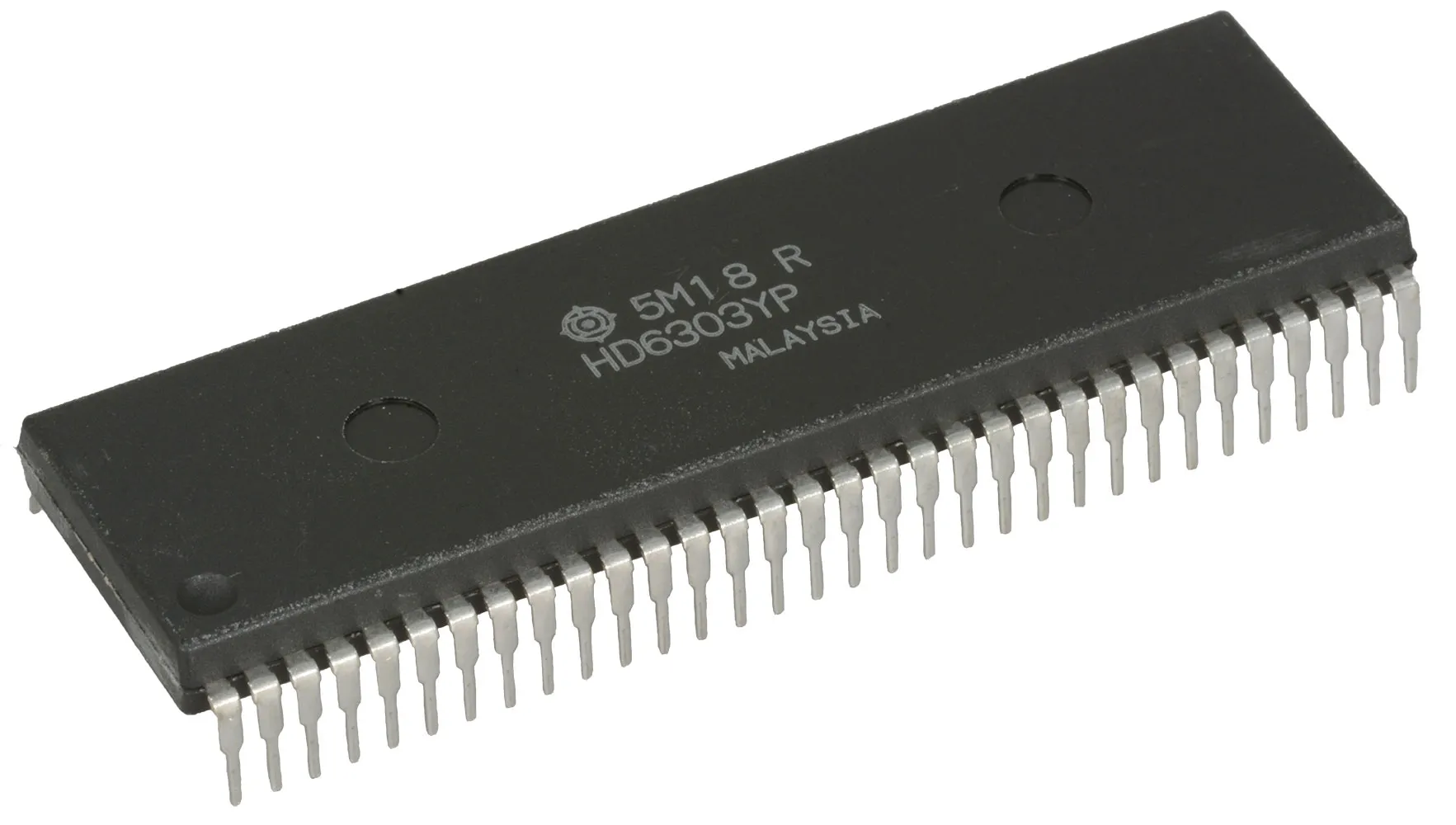

CMOS 8-Bit MPU Micro Processing Unit DIP-64

The HD6303X is a CMOS 8-bit micro processing unit (MPU) which includes a CPU compatible with the HD6301V1, 192 bytes of RAM, 24 parallel I/O pins, a Serial Communication Interface (SCI) and two timers on chip.

Features

  • Frequency: 1 MHz
  • 8-bit

Product Identification

Family:HD6301V1

Packaging

Package:DIP-64

Features

Instruction Set Architecture:CISC
Data Bus Width:8Bit
Maximum Speed:1 MHz
Fabrication Technology:CMOS
,
