512 Kbit (64K x8) UV EPROM

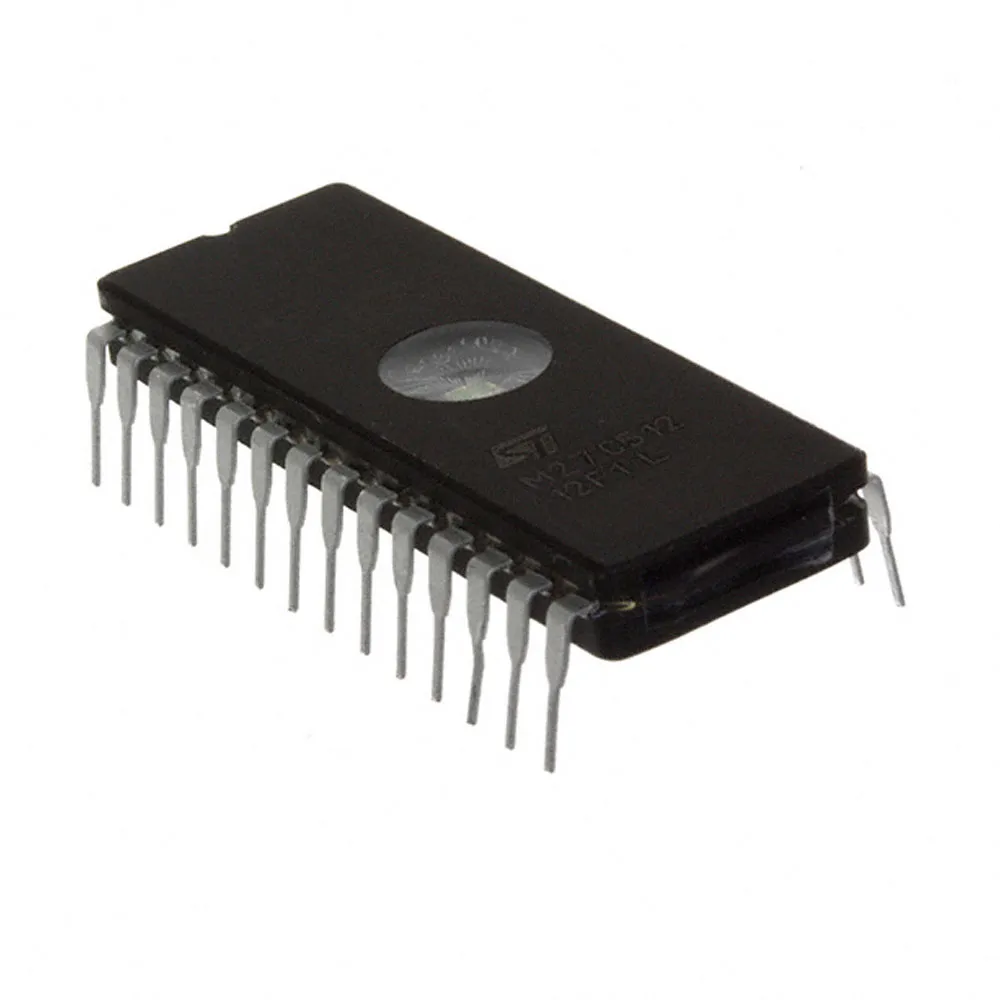

The M27C512 is a 512 Kbit UV (ultra violet erase) EPROM. It is ideally suited for applications where fast turn-around and pattern experimentation are important requirements and is organized as 65536 by 8 bits. The FDIP28W (window ceramic frit-seal package) has transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.

Features

• 5V ±10% supply voltage in read operation
• Access time: 120 ns
• Low power "CMOS" consumption:
  • Active current 30 mA
  • Standby current 100 µA
• Programming voltage: 12.75 V ±0.25 V
• Programming time around 6 s.
• Electronic Signature
  • Manufacturer code: 20h
  • Device code: 3Dh
