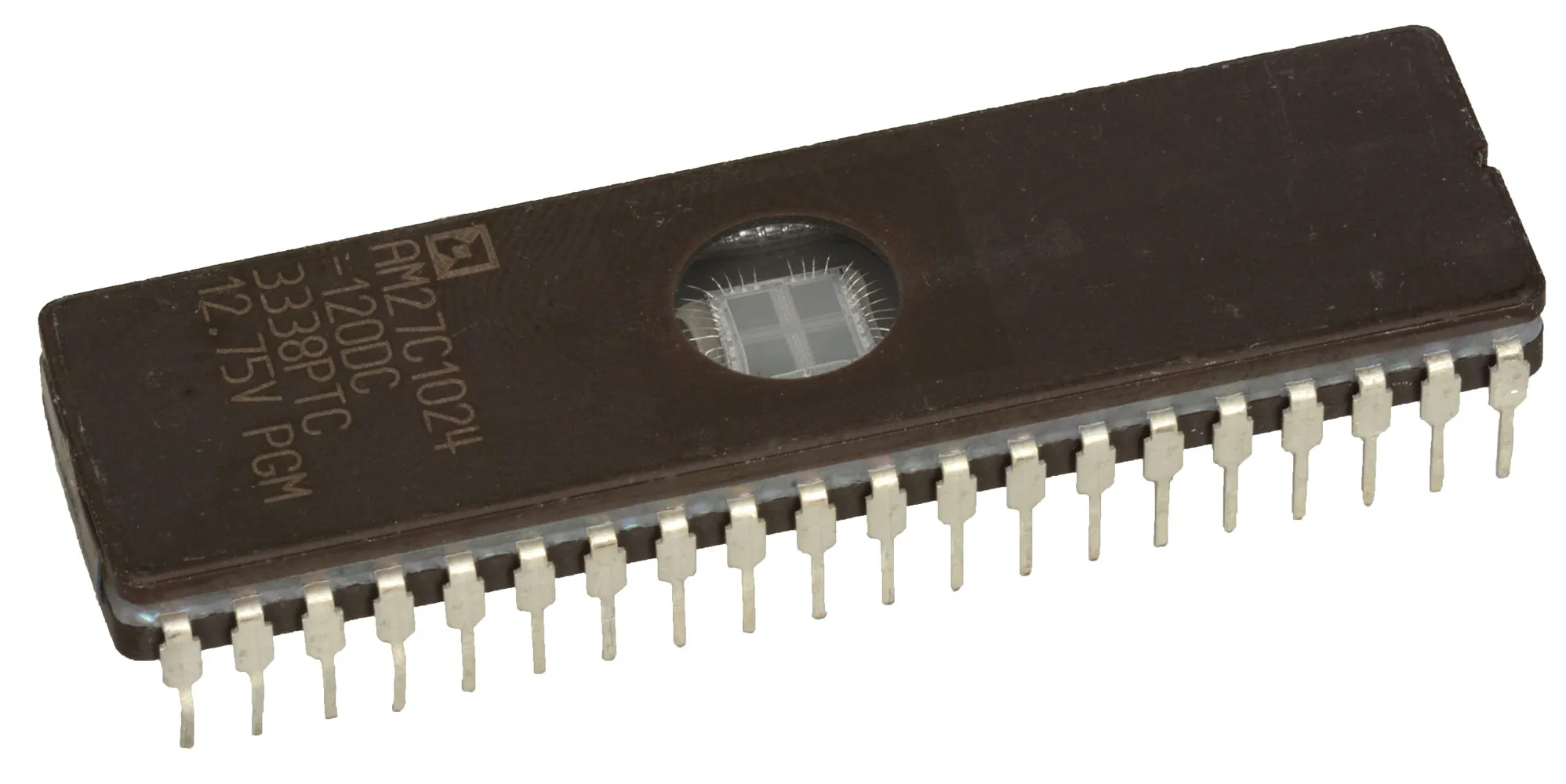

1 Megabit (65 K x16-Bit) CMOS EPROM 120ns Ceramic DIP-40

The 27C1024 is a 1 Megabit ultraviolet erasable programmable read-only memory. It is organized as 64Kwords by 16 bits per word, operates from a single +5V supply, has a static standby mode and features fast single address location programming.

Features

  • Fast access time
  • Low power consumption
  • JEDEC-approved pinout
  • Single +5V power supply
  • ±10% power supply tolerance standard
  • 100% Flashrite™ programming
  • Latch-up protected to 100mA from -1V to VCC +1V
  • High noise immunity

Dimensions & Appearance

Mounting:Through Hole

Operating conditions

Minimum Operating Temperature:0°C
Maximum Operating Temperature:70°C

Packaging

Package:DIP-40

Input

Input Voltage:5V

Output

Output Enable Access Time:45ns

Features

Reprogramming Technique:UV
Screening Level:Commercial
Memory Density:1Mbit
Programming Voltage:12.75V
Maximum Random Access Time:120ns
Organization:64Kx16
,
