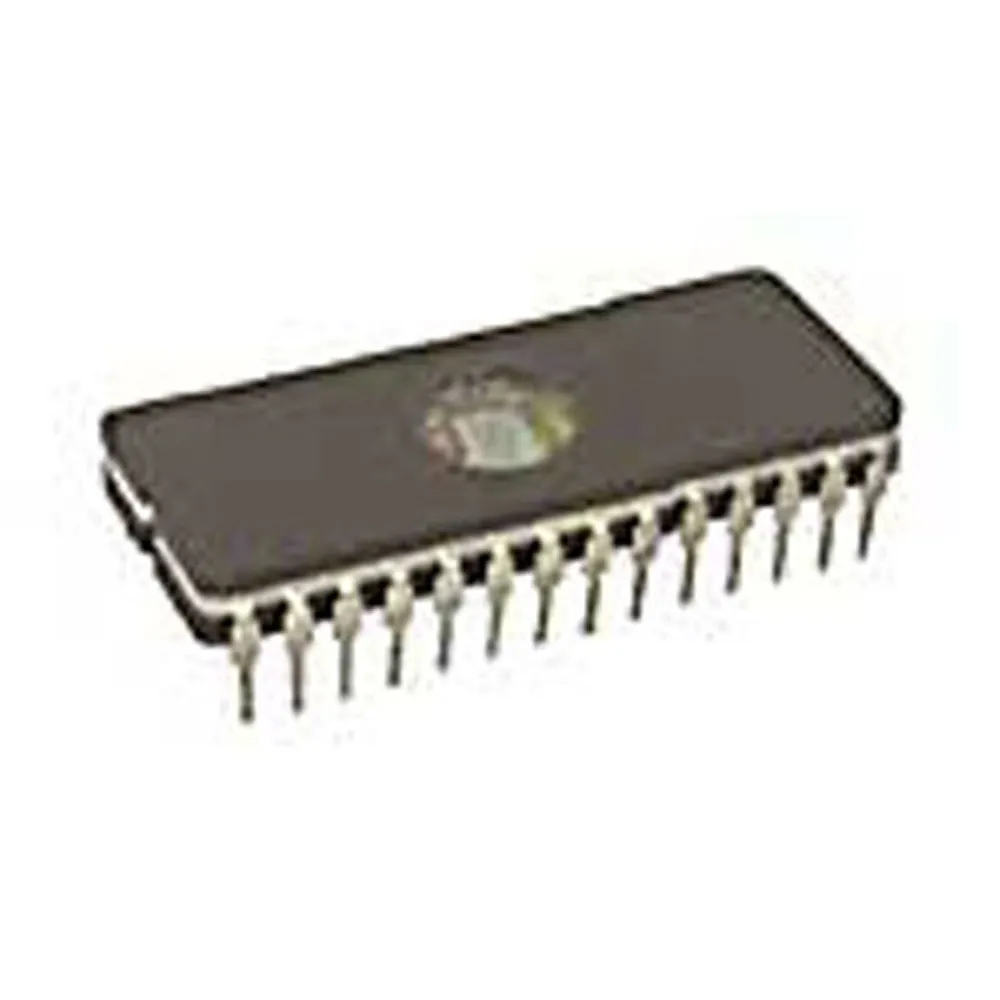

NMOS UV EPROM 8Kx8 200ns 5V Ceramic DIP-28

Features

• FAST ACCESS TIME: 200ns
• SINGLE 5V SUPPLY VOLTAGE
• LOW STANDBY CURRENT: 35mA max
• TTL COMPATIBLE DURING READ and PROGRAM
• FAST PROGRAMMING ALGORITHM
• ELECTRONIC SIGNATURE
• PROGRAMMING VOLTAGE: 12.5V

Overview

The M2764A is a 65,536 bit UV erasable and electrically programmable memory EPROM. It is organized as 8,192 words by 8 bits. The M27C64A is housed in a 28 pin Window Ceramic Frit-Seal Dual-in-Line package. The transparent lid allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.
