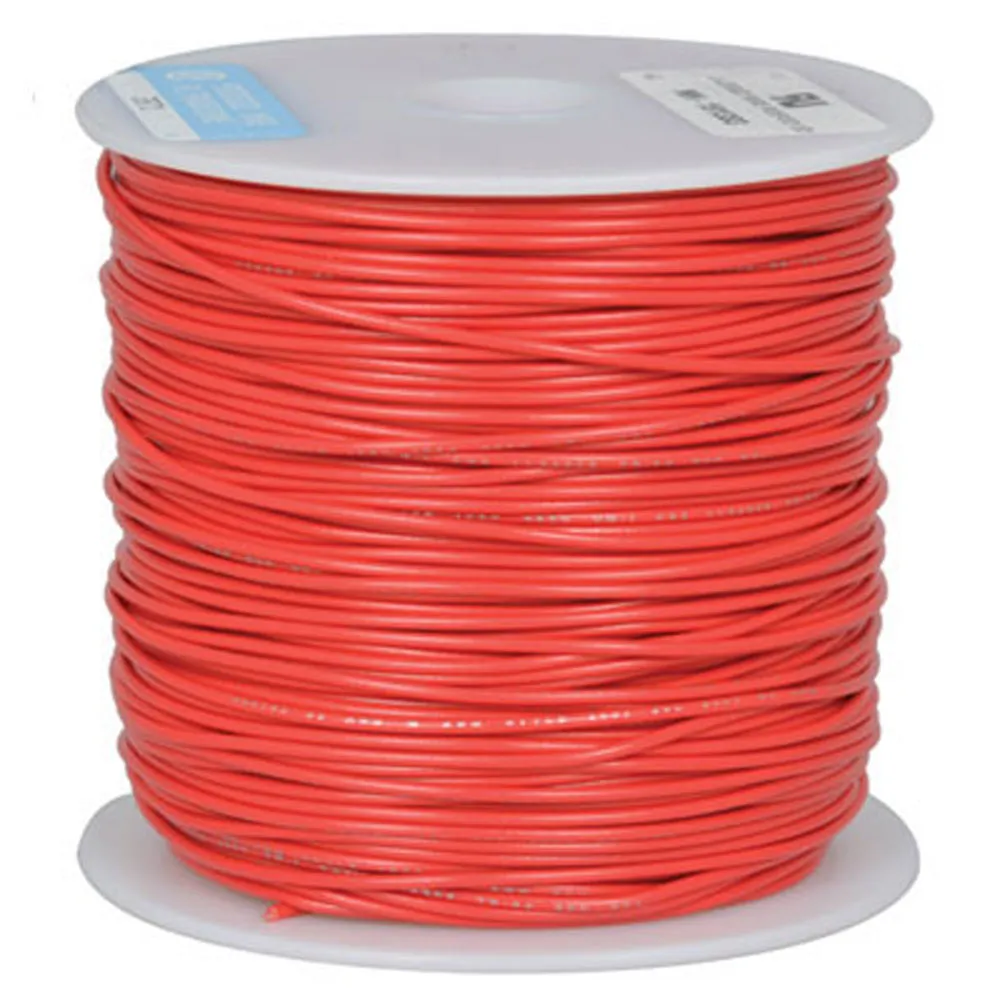

500 ft. 24 AWG Dual-Rated Stranded Hook-Up Wire - Red
Features
- Consolidated Electronic Wire & Cable PN: 817-2-500
- Color: Red
- 500 foot spool
- Stranding: 7 x 32 tin copper wire
- Nominal Outer Diameter: 0.056"
- Voltage Rating: 300V
- Color coded PVC insulation
- Dual rated: UL1007/1569
- Temperature: -40° to +80°C (UL1007); -40° to +105°C (UL1569)
Applications
- Hook-up wire
- Point to point wiring
- Internal wiring of meters, panels, electrical and electronic equipment
Industry Approvals
- UL Style 1007
- UL Style 1569
- CSA-TR-64 (90°C)
- VW-1
- RoHS compliant
- OSHA acceptable
Related Products
Product Identification
Additional Feature:Made in USA
Product Type:Stranded Hook-up Wire
Compliance
Agency Approvals: CSA VW-1 AWM I A/B FT-1, UL 1007, UL 1569
Dimensions & Appearance
Color:Red
Length:500 ft.
Packaging
Package:Reel
Features
Number of Conductors:1
Insulation Type:PVC
Conductor Strand:7 x 32
Wire Gauge (AWG):24
Voltage Rating:300 V
