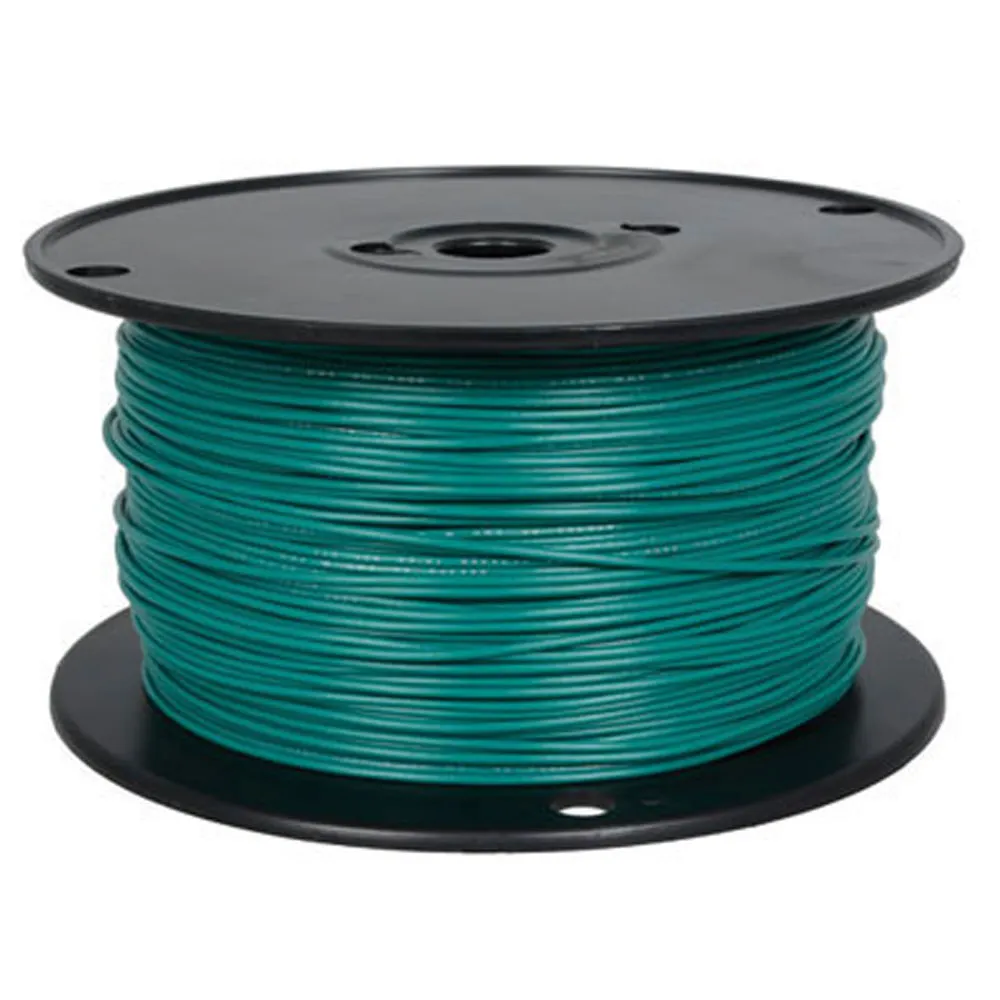

500 ft. 18 AWG Dual-Rated Stranded Hook-Up Wire - Green

Features

  • Consolidated Electronic Wire & Cable PN: 822-5-500
  • Color: Green
  • 500 foot spool
  • Stranding: 16 x 30 tin copper wire
  • Nominal Outer Diameter: 0.08"
  • Voltage Rating: 300V
  • Color coded PVC insulation
  • Dual rated: UL1007/1569
  • Temperature: -40° to +80°C (UL1007); -40° to +105°C (UL1569)

Applications

  • Hook-up wire
  • Point to point wiring
  • Internal wiring of meters, panels, electrical and electronic equipment

Industry Approvals

  • UL Style 1007
  • UL Style 1569
  • CSA-TR-64 (90°C)
  • VW-1
  • RoHS compliant
  • OSHA acceptable

    • Related Products

    Product Identification

    Additional Feature:Made in USA
    Product Type:Stranded Hook-up Wire

    Compliance

    Agency Approvals: CSA VW-1 AWM I A/B FT-1, UL 1007, UL 1569

    Dimensions & Appearance

    Color:Green
    Length:500 ft.

    Packaging

    Package:Reel

    Features

    Number of Conductors:1
    Insulation Type:PVC
    Conductor Strand:16 x 30
    Wire Gauge (AWG):18
    Voltage Rating:300 V
    ,
