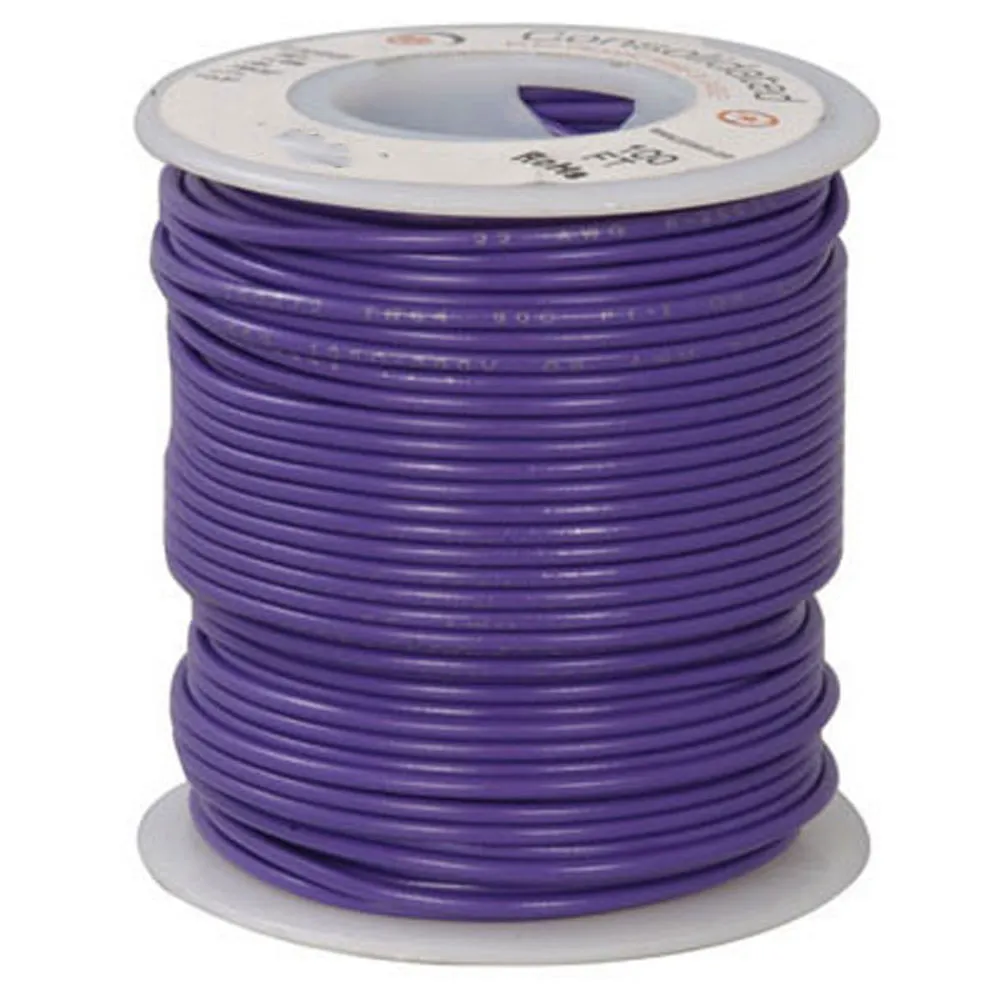

Hookup Wire 24AWG Solid Tinned Copper Violet 0.052 Inch Nominal Outside Diameter PVC Insulation 100 Foot Roll

Features

  • Consolidated Electronic Wire & Cable PN: 803-7-100
  • Wire Gauge (AWG): 24
  • Strands: Solid Tinned Copper
  • Color: Violet
  • Insulation Type: (UL 1007) color coded PVC
  • Temperature Range (C): -40°C to +80°C
  • Nominal Insulation Size (in.): 0.016
  • Nominal Insulation O. D. (in.): 0.052
  • Roll Length (ft.): 100

Product Identification

Additional Feature:Made in USA
Product Type:Solid Hook-up Wire

Compliance

Agency Approvals: CSA VW-1 AWM I A/B FT-1, UL 1007, UL 1569

Dimensions & Appearance

Color:Violet
Length:100 ft.

Packaging

Package:Reel

Features

Number of Conductors:1
Insulation Type:PVC
Conductor Strand:Solid
Wire Gauge (AWG):24
Voltage Rating:300 V
,
