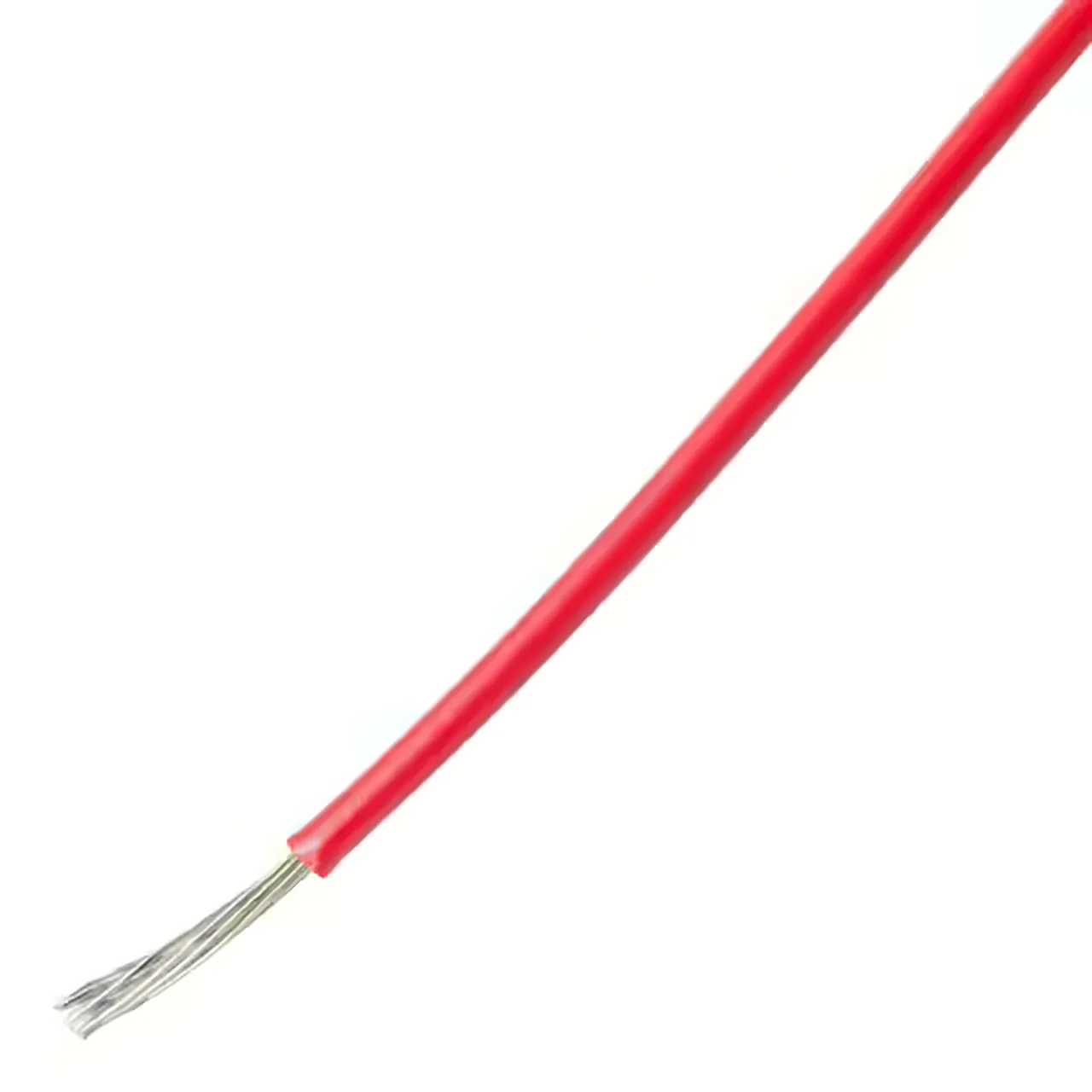

Hookup Wire 12 AWG Stranded Tinned Copper Red PVC Insulation 0.136 Inch Nominal OD 100 Foot Roll
Specifications
- Wire Gauge (AWG): 12
- Strands: Stranded Tinned Copper (65 x 30 strand)
- Color: Red
- Insulation Type: Color coded PVC
- Temperature Range (C): -40°C to +105°C
- Nominal Insulation Size (in.): 0.03
- Nominal Insulation O. D. (in.): 0.155
- Roll Length (ft.): 100
- Agency Approvals: UL 1015, UL 1230, UL 1335, UL 1032, VW-1, FT-1
Product Identification
Additional Feature:Made in USA
Product Type:Stranded Hook-up Wire
Compliance
Agency Approvals: UL 1015, UL 1032, UL 1230, UL 1335, MTW AWM
Dimensions & Appearance
Color:Red
Length:100 ft.
Packaging
Package:Reel
Features
Number of Conductors:1
Insulation Type:PVC
Wire Gauge (AWG):12
Conductor Strand:65 x 30
Voltage Rating:600 V
