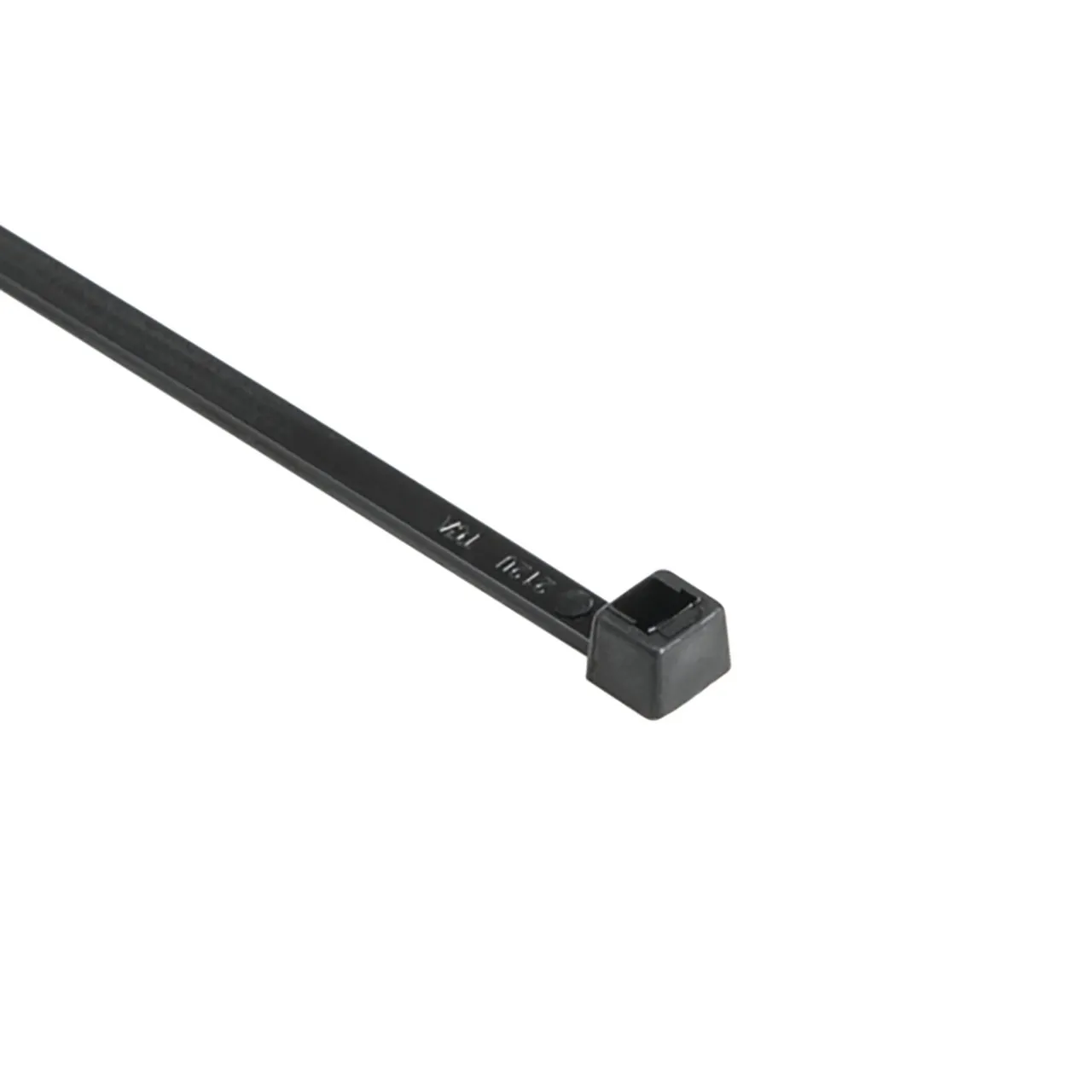

High-Temp Cable Tie, 8" Long, UL Rated, 50lb Tensile Strength, PA66HSUV, Black, 1000 per Package

Features

• Heat and UV stabilized cable ties provide excellent resistance to high heat and UV exposures Head design contains clamping rails to provide full circumferential compression around bundles Bent tail allows for quick insertion into head
• Product Type: Standard Cable Ties - Special Materials;Standard Cable Ties

Technical Specifications

• Material: Polyamide 6.6 heat and UV stabilized (PA66HSUV)
• Operating Temperature: -40°F to +257°F (-40°C to +125°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Bundle Diameter Max. (Imperial): 1.97"
• Bundle Diameter Max. (Metric): 50.0 mm
• Bundle Diameter Min. (Imperial): 0.06"
• Bundle Diameter Min. (Metric): 1.5 mm
• Cable Tie Closure: plastic pawl
• Cable Tie Head Height (metric): 5.9 mm
• Cable Tie Head Length (Imperial): 0.29"
• Cable Tie Head Length (Metric): 7.3 mm
• Cable Tie Head Width (Imperial): 0.3"
• Cable Tie Head Width (Metric): 7.6 mm
• Focused Markets and Industries: Solar Energy Sector; Wind Energy Sector; Rail Transportation Sector; Aerospace Industry; Shipbuilding; Defense Industry
• Length L (Imperial): 8.0"
• Length L (Metric): 202.0 mm
• Recommended Application Tool: 110-03500; 110-05005; 110-06000; 110-07000; 110-07101; 110-70083; 110-70084; 110-80000; 110-80001
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 50 lbs
• Tensile Strength Min. (kgf): 22.94 kgf
• Tensile Strength Min. (Metric): 225 N
• Thickness T (Imperial): 0.05"
• Thickness T (Metric): 1.2 mm
• Toothing (Serration): Inside Serrated
• Variant: Inside Serrated
• Width W (Imperial): 0.18"
• Width W (Metric): 4.6 mm
• CE Certified: Yes
• CSA Certified: No
• Flammability: UL 94 HB
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL-File Number + Logo: E64139 [C_RU_US_62275_Type11]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): Yes
• UV Resistant (Yes/No): Yes
• UPC: 089306087144

Overview

HellermannTyton standard cable ties feature inside serrations providing a positive hold onto wire and cable bundles. The head design guarantees high tensile strength, as well as a low insertion force. The bent tail design allows quick and simple installations by hand. For high volume applications, tensioning tools are availableto ensure consistent and safe installation.
