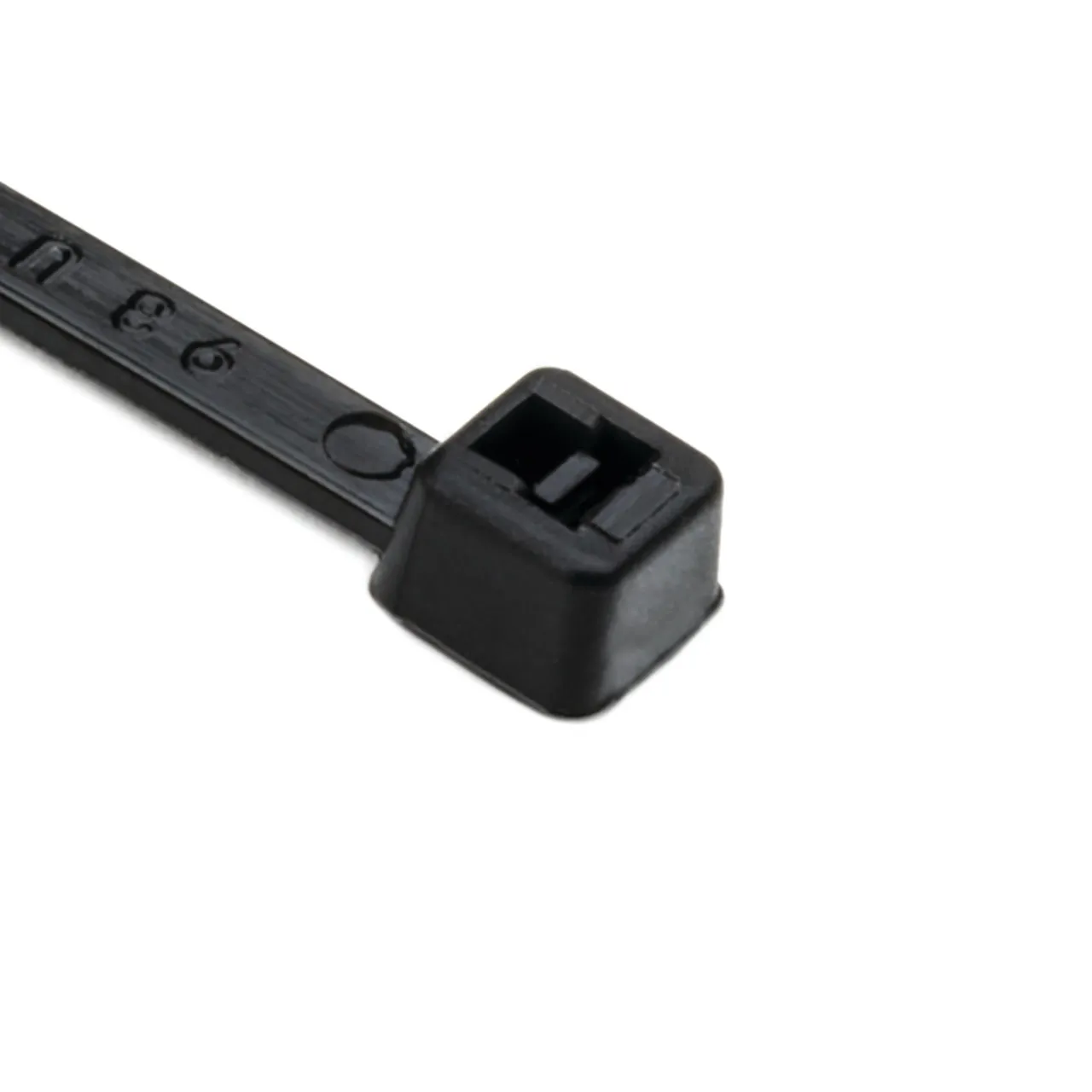

High-Temp Cable Tie, 4" Long, UL Rated, 18lb Tensile Strength, PA66HS, Black, 100 per Package

Features

• Heat stabilized cable ties provide excellent resistance to high heat exposures. Inside serrations allow for strong grip on cables and wire bundles. Head design provides high tensile strength with very low insertion force. Bent tail ensures a quick and simple installation.
• Product Type: Standard Cable Ties - Special Materials;Standard Cable Ties

Technical Specifications

• Material: Polyamide 6.6 heat stabilized (PA66HS)
• Operating Temperature: -40°F to +257°F (-40°C to +125°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Bundle Diameter Max. (Imperial): 0.87"
• Bundle Diameter Max. (Metric): 22.0 mm
• Bundle Diameter Min. (Imperial): 0.06"
• Bundle Diameter Min. (Metric): 1.5 mm
• Cable Tie Closure: plastic pawl
• Cable Tie Head Length (Imperial): 0.19"
• Cable Tie Head Length (Metric): 4.8 mm
• Cable Tie Head Width (Imperial): 0.18"
• Cable Tie Head Width (Metric): 4.45 mm
• Focused Markets and Industries: Solar Energy Sector; Wind Energy Sector; Rail Transportation Sector; Electronics Industry; Aerospace Industry; Shipbuilding; Defense Industry
• Height H (Imperial): 0.15"
• Height H (Metric): 3.7 mm
• Length L (Imperial): 3.94"
• Length L (Metric): 100.0 mm
• Recommended Application Tool: 110-03500; 110-05005; 110-70083; 110-70084
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 18 lbs
• Tensile Strength Min. (kgf): 8.16 kgf
• Tensile Strength Min. (Metric): 80 N
• Thickness T (Metric): 1.0 mm
• Toothing (Serration): Inside Serrated
• Variant: Inside Serrated
• Width W (Imperial): 0.10"
• Width W (Metric): 2.5 mm
• CE Certified: Yes
• CSA Certified: No
• Flammability: UL 94 V-2
• Halogen Free: Yes
• Plenum Rating: AH-2
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL-File Number + Logo: E64139 [C_RU_US_62275_Type11]; E64139 [C_UL_US_63FN_Type21]
• UL Listed (US): Yes
• UL Listed (US and Canada): Yes
• UL Recognized (US): Yes
• UL Recognized (US and Canada): Yes
• UV Resistant (Yes/No): No
• UPC: 089306067085

Overview

T-Series Cable Ties feature inside serrations to provide a positive hold on wire and cable bundles. The head design guarantees high tensile strength and a low insertion force. The bent tail design allows quick and simple installations by hand. For high-volume applications, tensioning tools are available to ensure consistent and safe installation.
