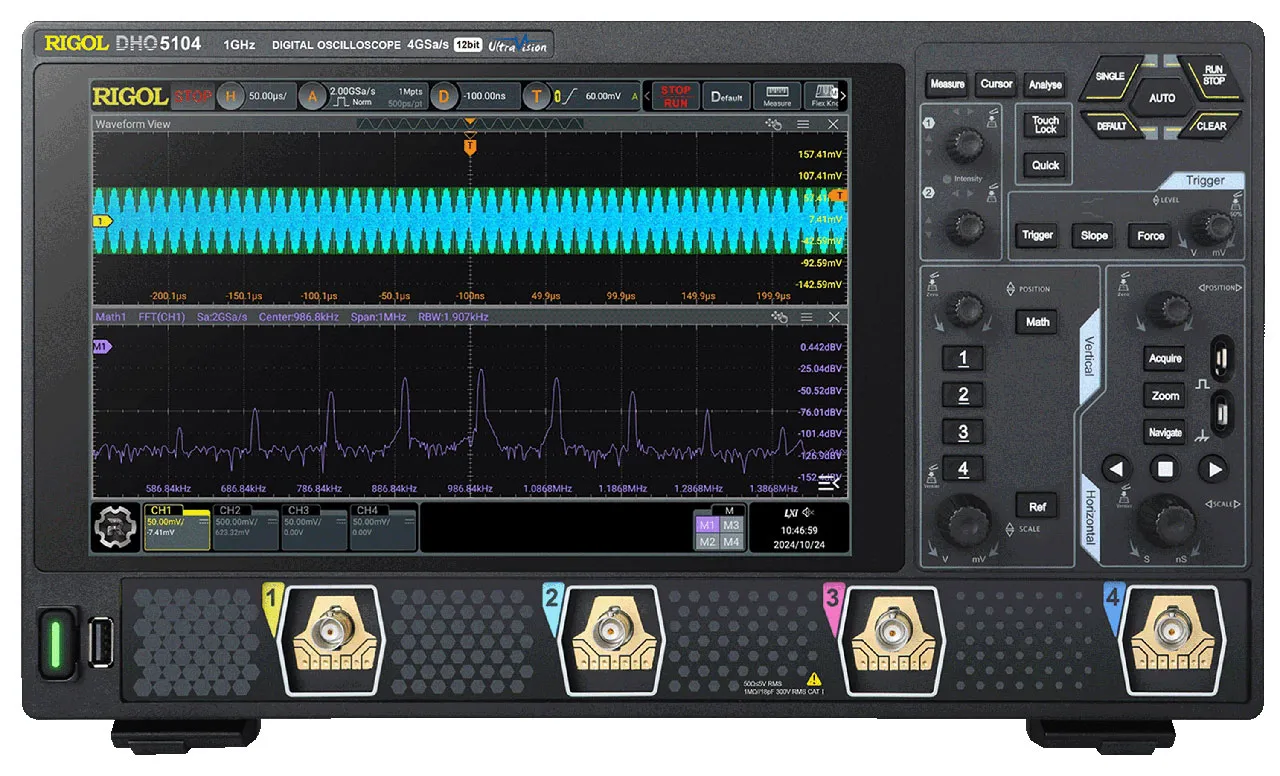

High-Resolution Oscilloscope 12-bit 4 Analog Channels 1GHz 4GSa/s

Features

• 12-bit vertical resolution and up to 4096 levels of quantization bits
• 12 bit analog to digital converters with a significantly lower noise floor
• Up to 500 Million points in a single capture
• Up to 8 analog input channels in a single instrument supports multi-channel test applications, such as power sequencing test, three-phase power analysis and motor test, third-generation semiconductor test, etc.
• Arbitrary Waveform/Function Generator (opt), digital signal analysis

Overview

The DHO/MHO5000 series is a family of high-resolution digital oscilloscopes developed to meet the design, debugging, and test requirements of a wide range of applications. Its 1,000,000 wfms/s waveform capture rate (in fast recording mode), 500 Mpts memory depth, 12-bit resolution, and excellent noise floor are ready to meet the high-accuracy needs of demanding measurement scenarios. The DHO/MHO5000 series digital oscilloscope has multiple models, including configurations supporting arbitrary function generation, digital signal analysis, Bode plot analysis, and other functions.

Technical Specifications

• Analog Channels: 4
• Bandwidth: 1 GHz
• Max Sample Rate: 4 GSa/s
• Max Memory Depth: 500 Mpts
• Waveform Capture Rate: 1,000,000 wfms/s
