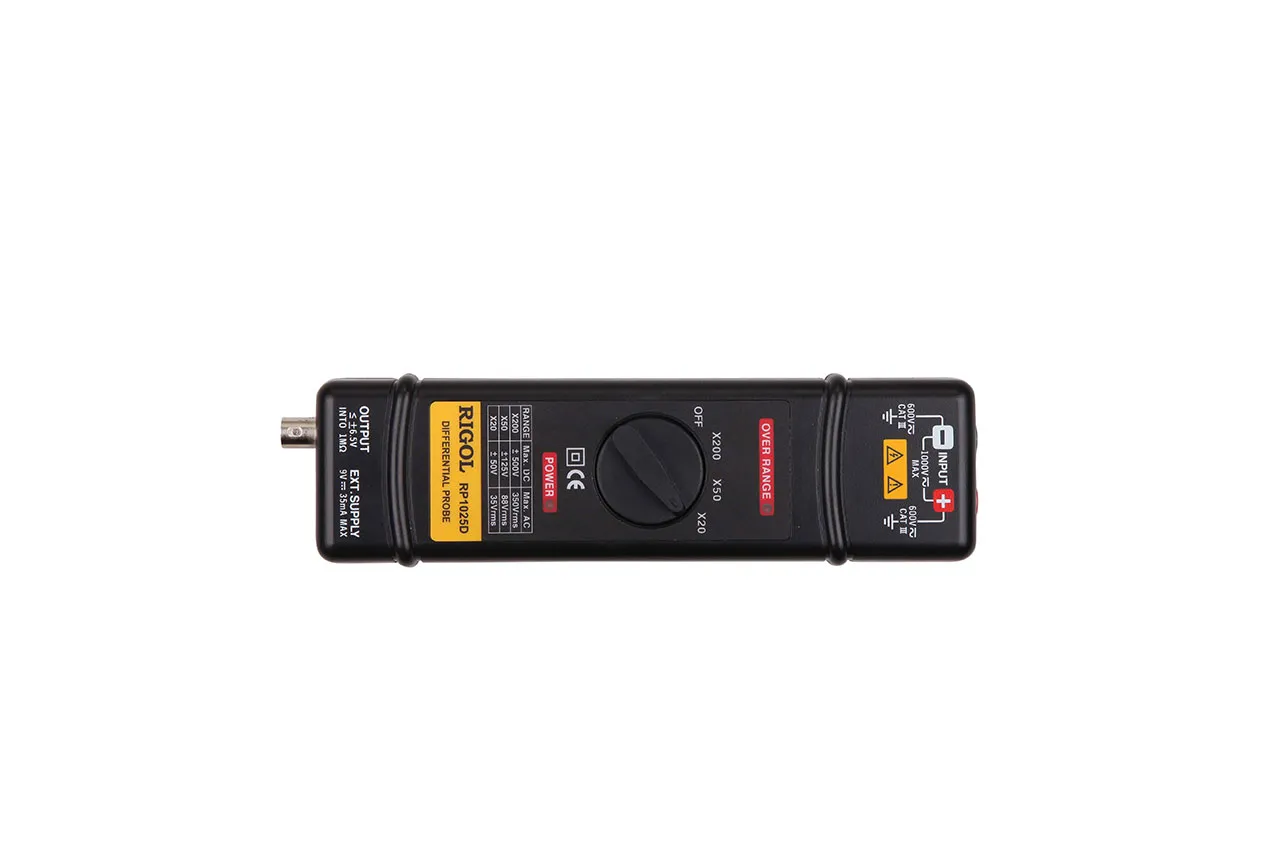

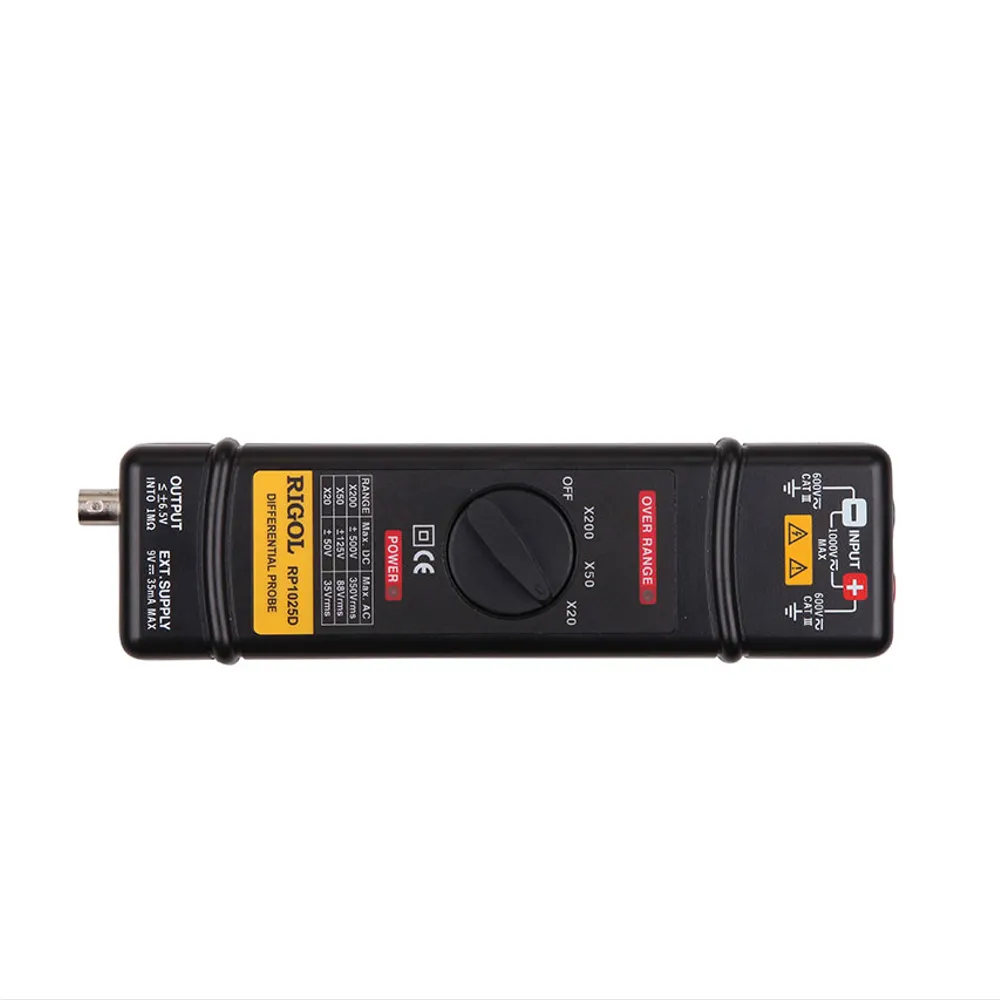

High Voltage Differential Probe for Oscilloscope with 25MHz Bandwidth

Rigol Technologies

Jameco Part #:

Manufacturer #:

Product Price:

$463.000

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$463.000	-	-
5+	$444.000	19.00	4.1%

Features

Bandwidth: 25 MHz
Attenuation Ratio: X20, X50, X200
1400 Vpp

Overview

RP1000D series high voltage differential probe can convert high differential input voltage to low voltage and display the waveforms on the oscilloscope. Its working frequency is up to 25MHz (RP1025D), 50MHz (RP1050D) and 100MHz (RP1100D) and it is rather suitable for large electricity test and R&D.

RP1000D series high voltage differential probe is applicable to general purpose oscilloscope and the labeled attenuation ratios are those when the input impedance of the oscilloscope is 1MΩ. The attenuation ratios will double when the input impedance of the oscilloscope is 50Ω.
