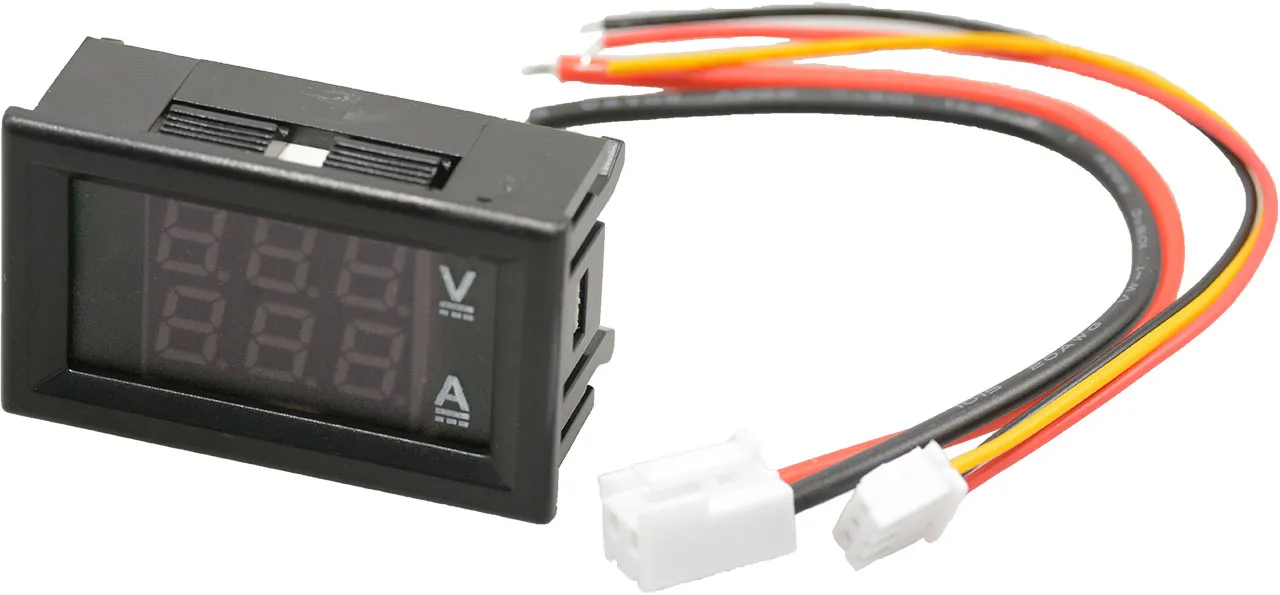

High Quality DC 100V 10A Voltmeter Ammeter Blue + Red LED Amp Dual Digital Volt Meter Gauge
Features
- 10A DC 0-100V 10A LED display
- Crisp and bright 0.3cm LED display, voltage and current value simultaneously in different colors: red for voltage, blue for current.
- Suitable for electric cars/motorcycles/battery monitoring or other voltage current measurement products
- Dimensions: 48 x 29 x 21 mm
- Termination: Wires
Product Identification
Additional Feature:Will not work above 20mA without an external shunt
Product Type:DC Voltmeter and DC Ammeter
Compliance
RoHS Status:ROHS Compliant
Dimensions & Appearance
Dimensions:1.89" x 1.14"
Input
Input Voltage:0 VDC to 100 VDC
Input:0-99.9 VDC, 0-9.99 ADC
Features
Decimal Point:Fixed
Number of Digits:3.5 (x2)
Max Panel Thickness:0.08"
Character Size:0.28"
Display Type:LED
