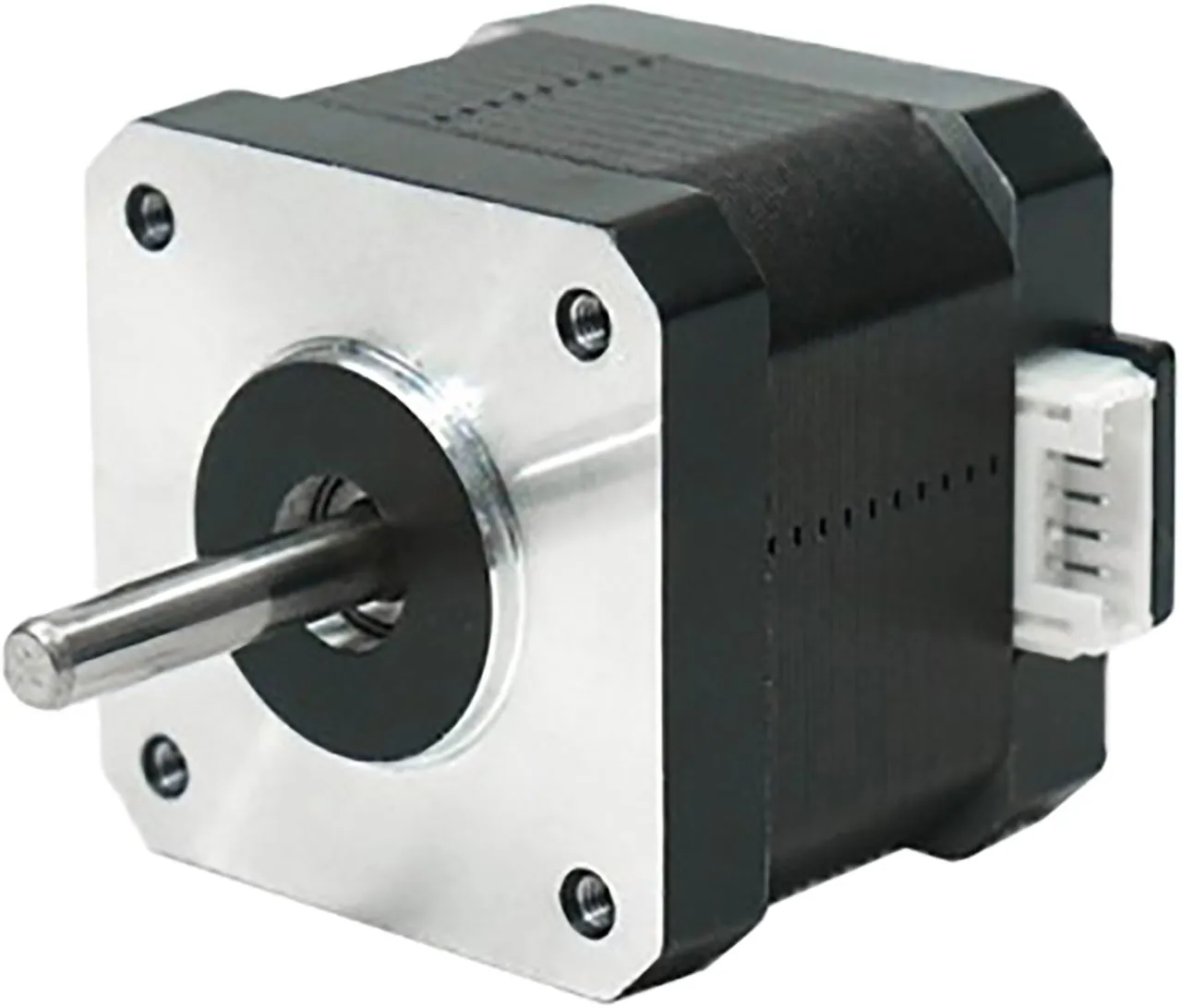

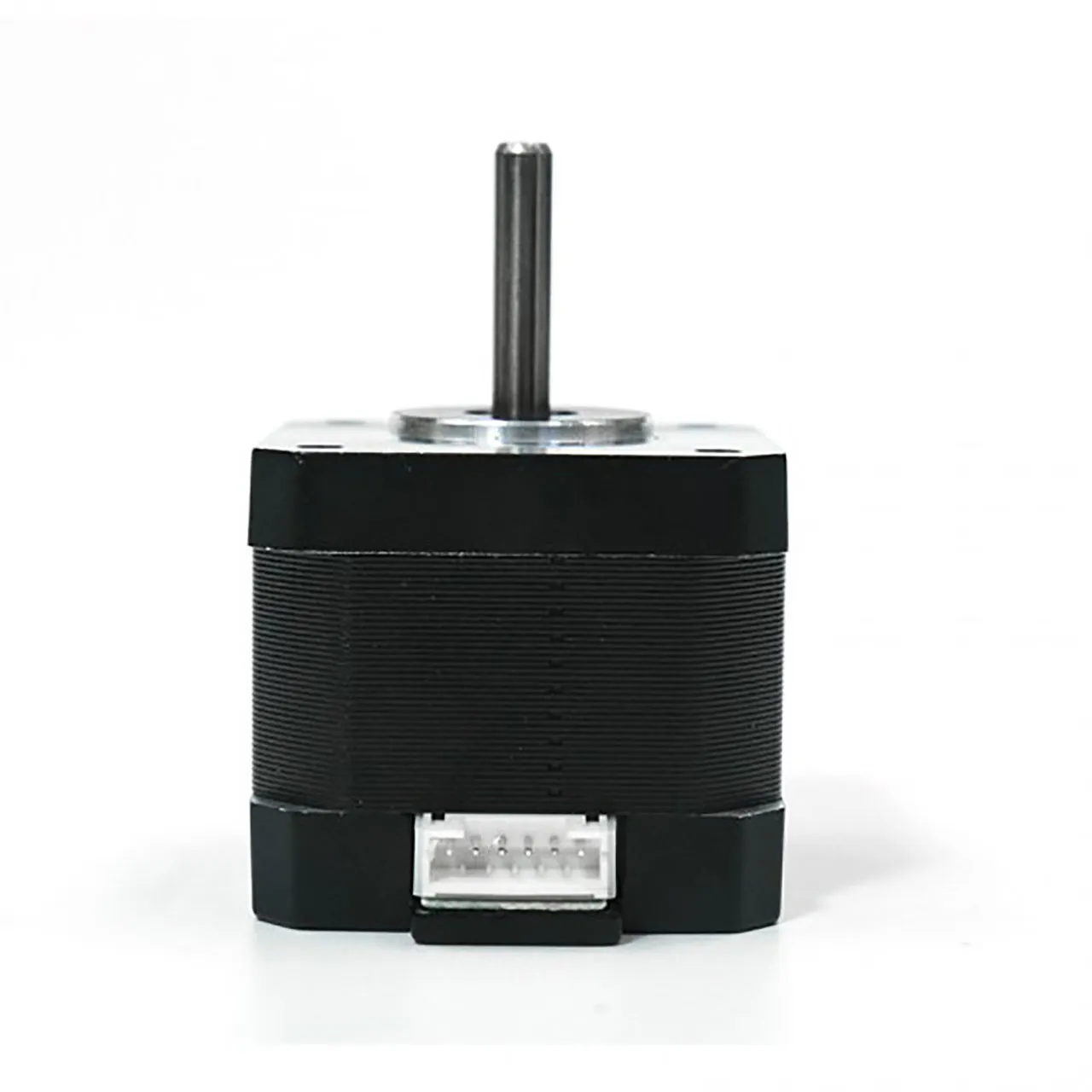

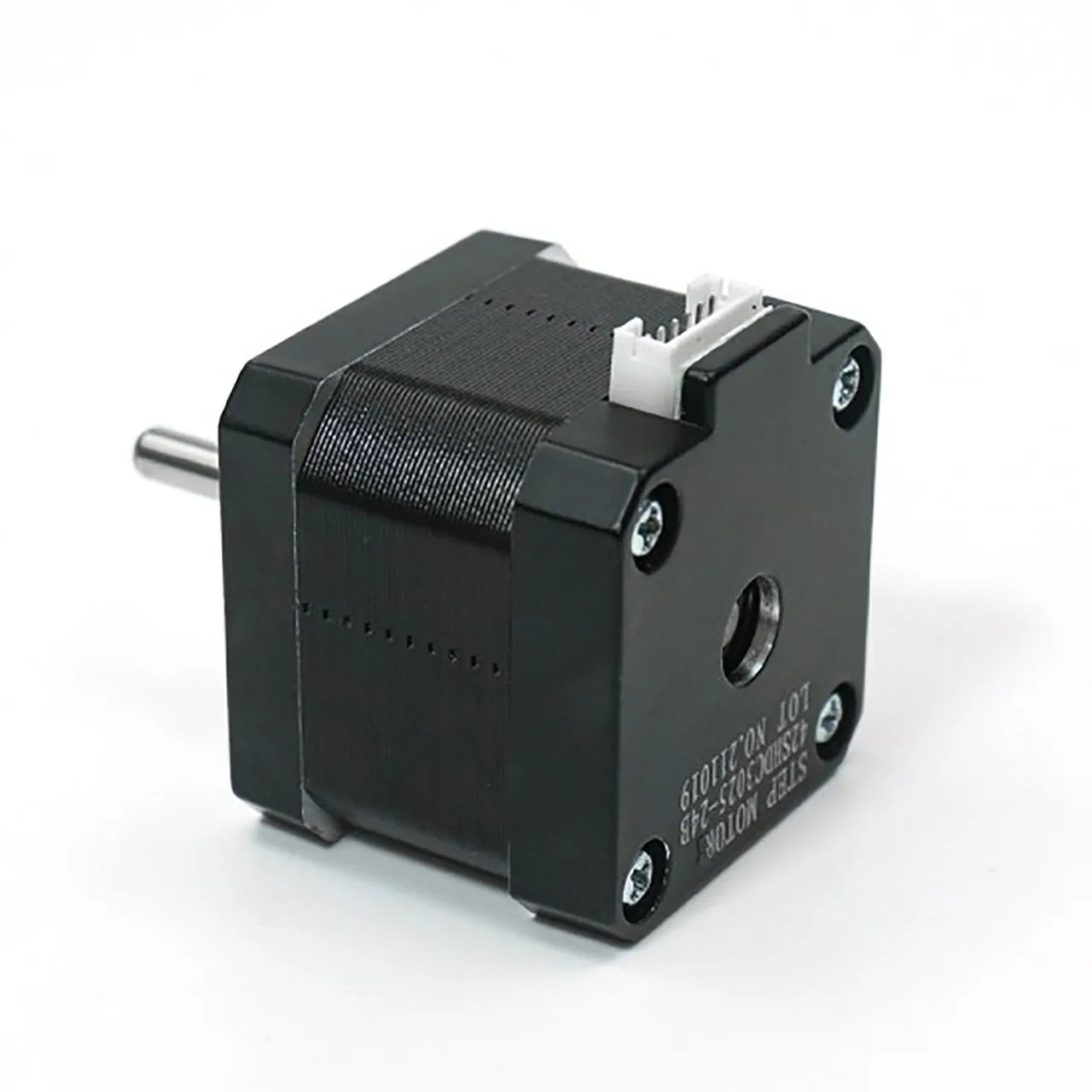

High Precision 42mm NEMA 17 HYBRID Stepper Motor 1.8 Degree per Step
Product Identification
Additional Feature:D-Shaft, Hybrid Stepper
Dimensions & Appearance
Shaft Diameter:0.197 in., 5 mm
Shaft Length:0.787 in., 20 mm
Mounting Hole:0.17 in.
Features
Step Angle:1.8
NEMA Frame Size:17
Coil Type:Bipolar
Resistance per Phase:1.5 Ohms
Hole Spacing:1.22 in.
Inductance per Phase:3 mH
Detent Torque:N/A
Voltage Rating:2.55 VDC
Current per Phase:1700 mA
Holding Torque:4800 g-cm
Motor Size (Diameter x Length) (inch):1.67 x 1.57
