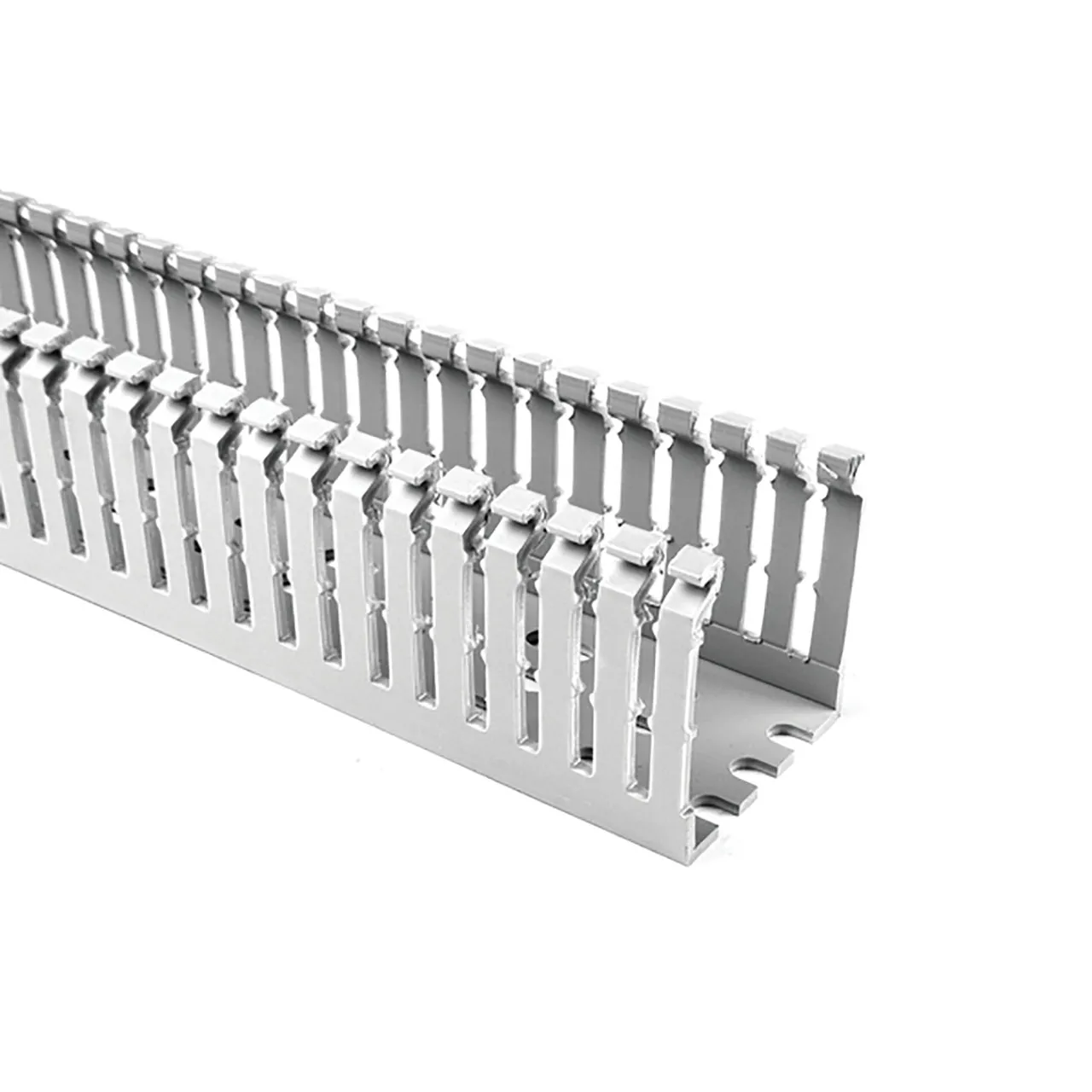

High Density Slotted Wall Wiring Duct, 3" x 3", Non-Adhesive, PVC, Gray, 7FT, 140ft/Carton

Features

• Narrow fingers reduce fanning of the wires to the terminal blocks, presenting a neater appearance. Each finger is provided with a double restriction to hold wires in the bottom portion of the duct, allowing for easier installation. Mounting holes are uniform in size and are offered every 2 inches to accommodate compact designs and ease installation. Optional covers snap on and off easily, and are provided with a non-slip lining that insures the covers remain in place during vibration.
• Product Type: High Density Slotted Duct and Covers

Technical Specifications

• Material: Polyvinylchloride (PVC)
• Operating Temperature: +122°F (+50°C)
• Color: Gray (GY)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Height H (Imperial): 3.07"
• Height H (Metric): 77.90 mm
• Length L (Imperial): 7 ft
• Length L (Metric): 2.13 m
• Mounting Hole Centers (Imperial): 2.00"
• Mounting Hole Centers (Metric): 50.80 mm
• Self extinguishing (Yes/No): Yes
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• Width W (Imperial): 3.00"
• Width W (Metric): 76.20 mm
• Width W2 (Imperial): 3.0"
• Width W2 (Metric): 76.2 mm
• Width W3 (Imperial): 0.16"
• Width W3 (Metric): 4.1 mm
• Width W4 (imperial): 0.4"
• Width W4 (metric): 10.2 mm
• Width W5 (imperial): 2.6"
• Width W5 (metric): 66.0 mm
• Width W6 (imperial): 1.00"
• Width W6 (metric): 25.4 mm
• CE Certified: Yes
• CSA Certified: Yes
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL-File Number + Logo: E64139 [RU]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306405825

Overview

HellermannTyton High-Density Slotted Wall Wiring Duct features narrow fingers equaling a 2-to-1 finger ratio compared to standard slotted wiring duct. With the narrow fingers, compact designs and components are more easily accommodated.
