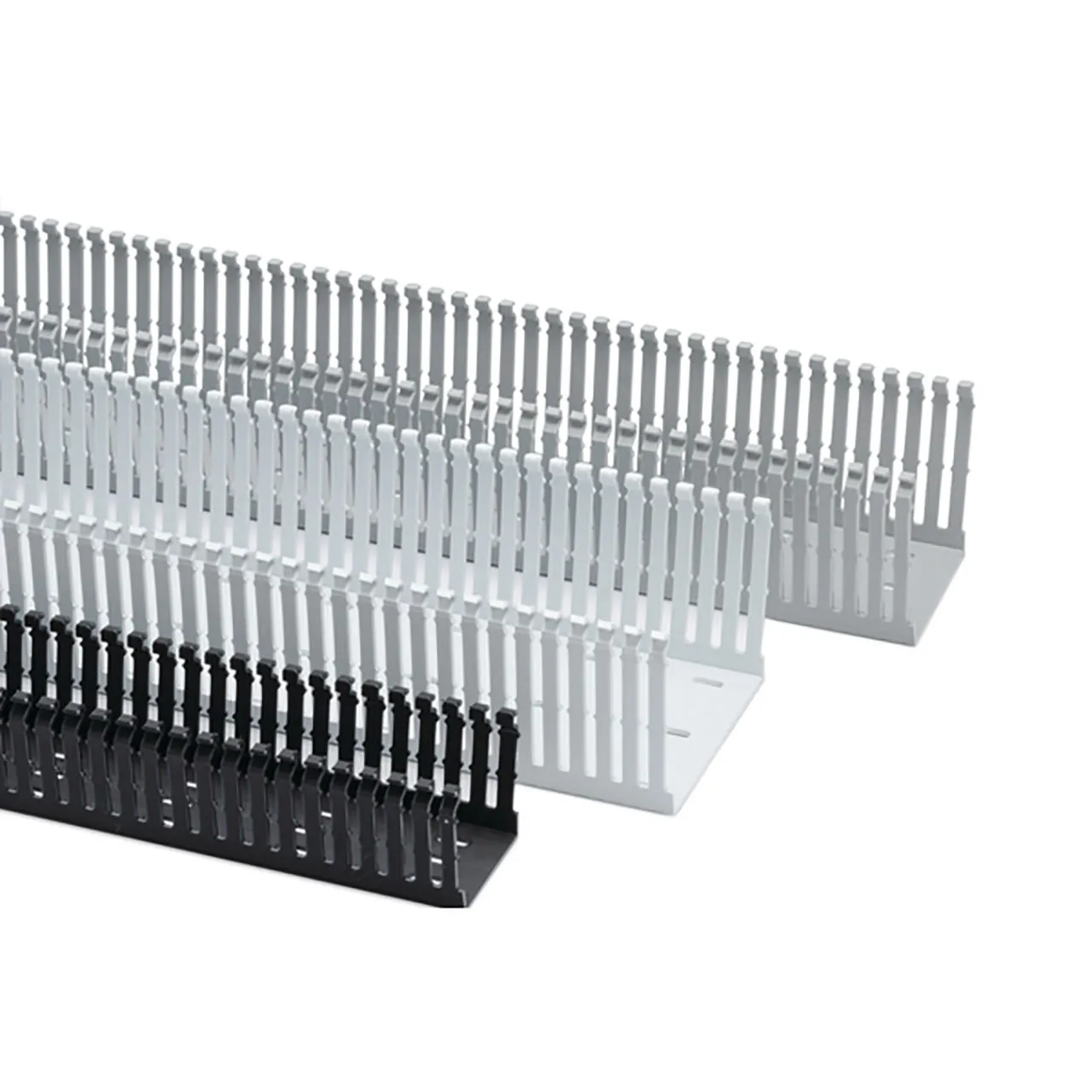

High Density Slotted Wall Wiring Duct, 2" x 2", Adhesive, PVC, White, 120ft/Carton

Features

• Narrow fingers reduce fanning of wires to terminal blocks, providing a neater appearance. Each finger features a double restriction to hold wires in the bottom portion of the duct, simplifying installation. Mounting holes are uniform in size to those in slotted and solid wall duct but are provided every two inches to accommodate compact designs and provide ease of installation. Nonpermanent adhesive allows repositioning prior to final installation.
• Product Type: High Density Slotted Duct and Covers

Technical Specifications

• Material: Polyvinylchloride (PVC)
• Operating Temperature: +122°F (+50°C)
• Color: White (WH)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Fixation Method: Adhesive
• Height H (Imperial): 2.07"
• Height H (Metric): 52.6 mm
• Length L (Imperial): 6.0 ft
• Length L (Metric): 1.83 m
• Mounting Hole Centers (Imperial): 2.0"
• Mounting Hole Centers (Metric): 50.8 mm
• Self extinguishing (Yes/No): Yes
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• Width W (Imperial): 2.0"
• Width W (Metric): 50.8 mm
• Width W2 (Imperial): 2.0"
• Width W2 (Metric): 50.8 mm
• Width W3 (Imperial): 0.16"
• Width W3 (Metric): 4.1 mm
• Width W4 (imperial): 0.4"
• Width W4 (metric): 10.2 mm
• Width W5 (imperial): 1.6"
• Width W5 (metric): 40.6 mm
• Width W6 (imperial): 0.5"
• Width W6 (metric): 12.7 mm
• CE Certified: Yes
• CSA Certified: Yes
• Halogen Free: No
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL-File Number + Logo: E64139 [RU]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306418009

Overview

HellermannTyton High-Density Slotted Wall Wiring Duct features narrow fingers equaling a 2-to-1 finger ratio compared to standard slotted wiring duct. With the narrow fingers, compact designs and components are more easily accommodated.
