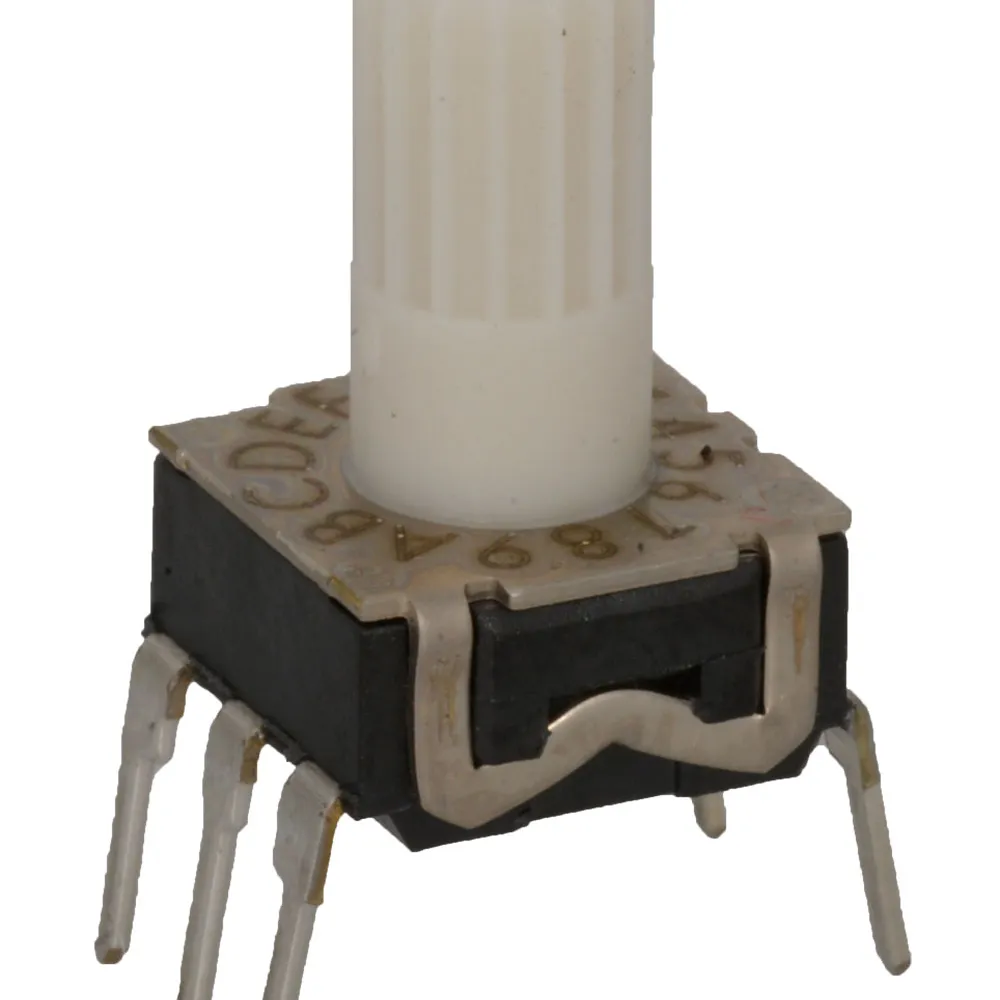

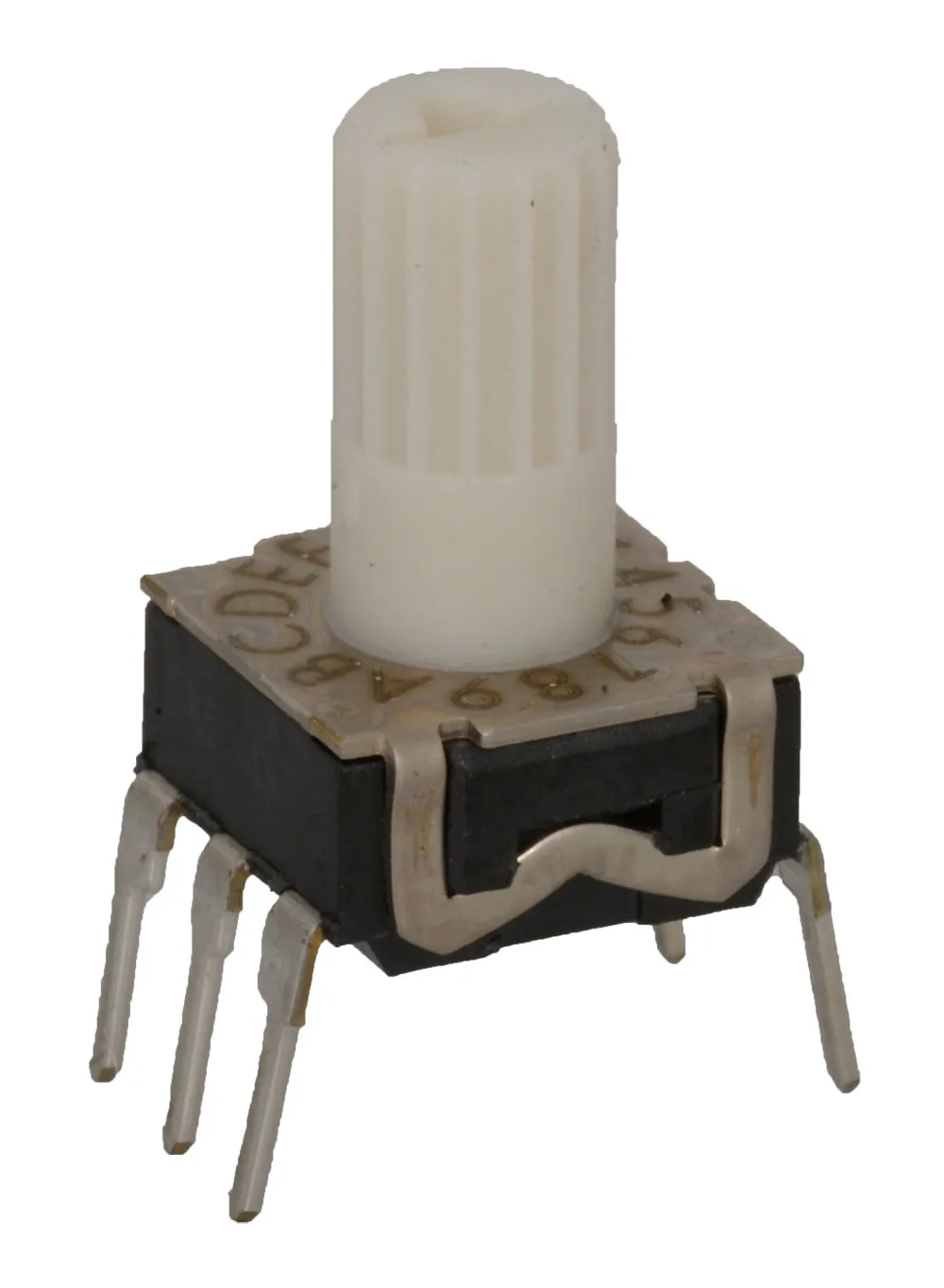

Hexadecimal DIP Switch 16 Position THM Rotary with Shaft Actuator 100mA 30VDC

Specifications

  • Circuit: Hexadecimal
  • Number of Positions: 16
  • Current Rating: 100mA
  • Voltage Rating: 30VDC
  • Actuator Type: Rotary with Shaft
  • Actuator Level: Raised
  • Contact Material: Bronze
  • Contact Finish: Gold
  • Height Above Board: 0.463" (11.75mm)
  • Mounting Type: Through Hole
  • Termination Style: PC Pin
  • Pitch: 0.100" (2.54mm), Full
  • Washable: No
  • Features: -
  • Operating Temperature: -25°C to 85°C
  • Body Material: Polyphenylene Sulfide (PPS)
  • Length: 0.291" (7.40mm)
  • Mechanical Life: 20,000 Steps

Product Identification

Product Type:Rotary DIP Switch

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Mounting:Through Hole

Features

Number of Positions:16
Contact Form:Hexadecimal
Actuator Type:Rotary Top Shaft
,
