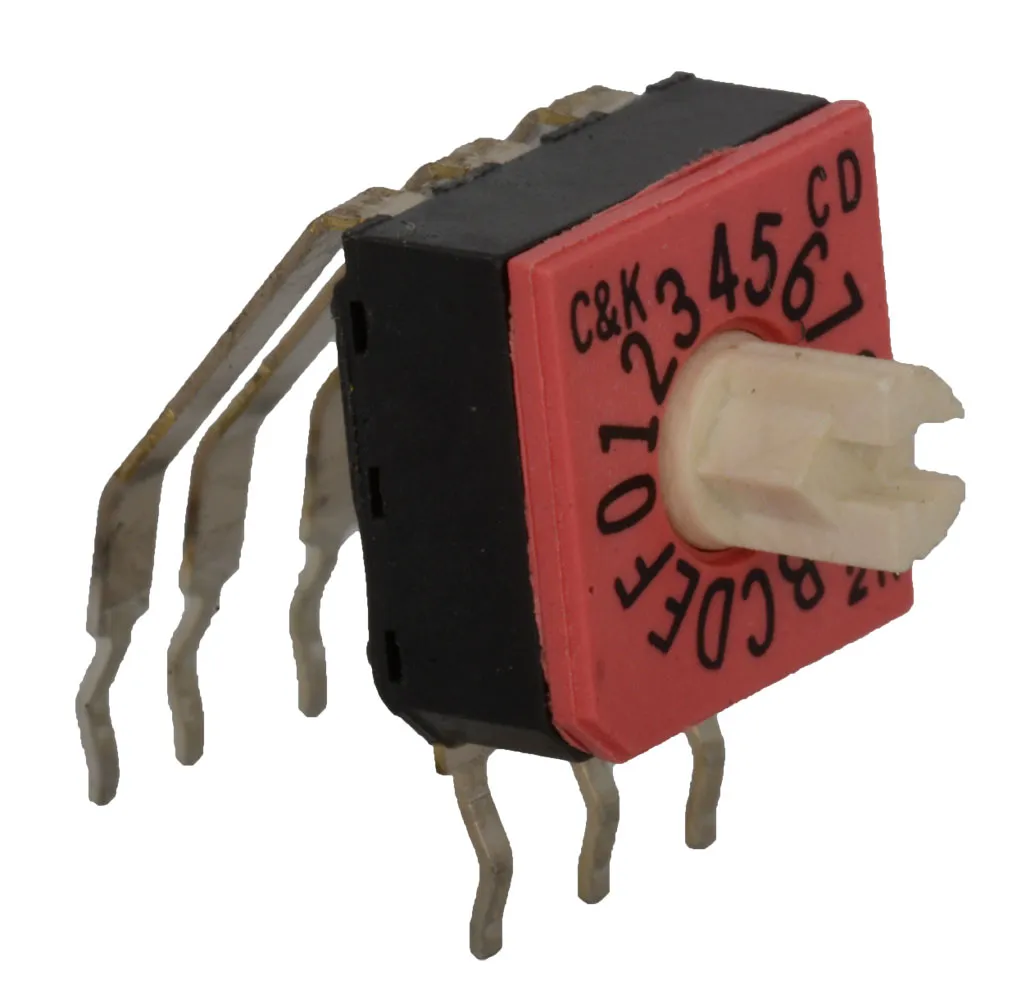

Hexadecimal DIP Switch 16 Position THM Right Angle Rotary with Shaft Actuator 0.4VA 20VAC/DC

Specifications

  • Circuit: Hexadecimal
  • Series: CD
  • Number of Positions: 16
  • Current Rating: 0.4VA
  • Voltage Rating: 20VAC/DC
  • Actuator Type: Rotary with Shaft
  • Actuator Level: Raised
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Height Above Board: 0.34" (8.64mm)
  • Mounting Type: Through Hole, Right Angle
  • Termination Style: PC Pin
  • Pitch: 0.100" (2.54mm), Full
  • Washable: Yes
  • Features: Process Sealed
  • Operating Temperature: -25°C to 85°C
  • Body Material: Polyphenylene Sulfide (PPS)
  • Length: 0.315" (8 mm)
  • Mechanical Life: 20,000 Steps
  • Electrical Life: 20,000 Steps

Product Identification

Product Type:Rotary DIP Switch

Dimensions & Appearance

Mounting:Through Hole, Right Angle

Features

Number of Positions:16
Contact Form:Hexadecimal
Actuator Type:Rotary Side Shaft
,
