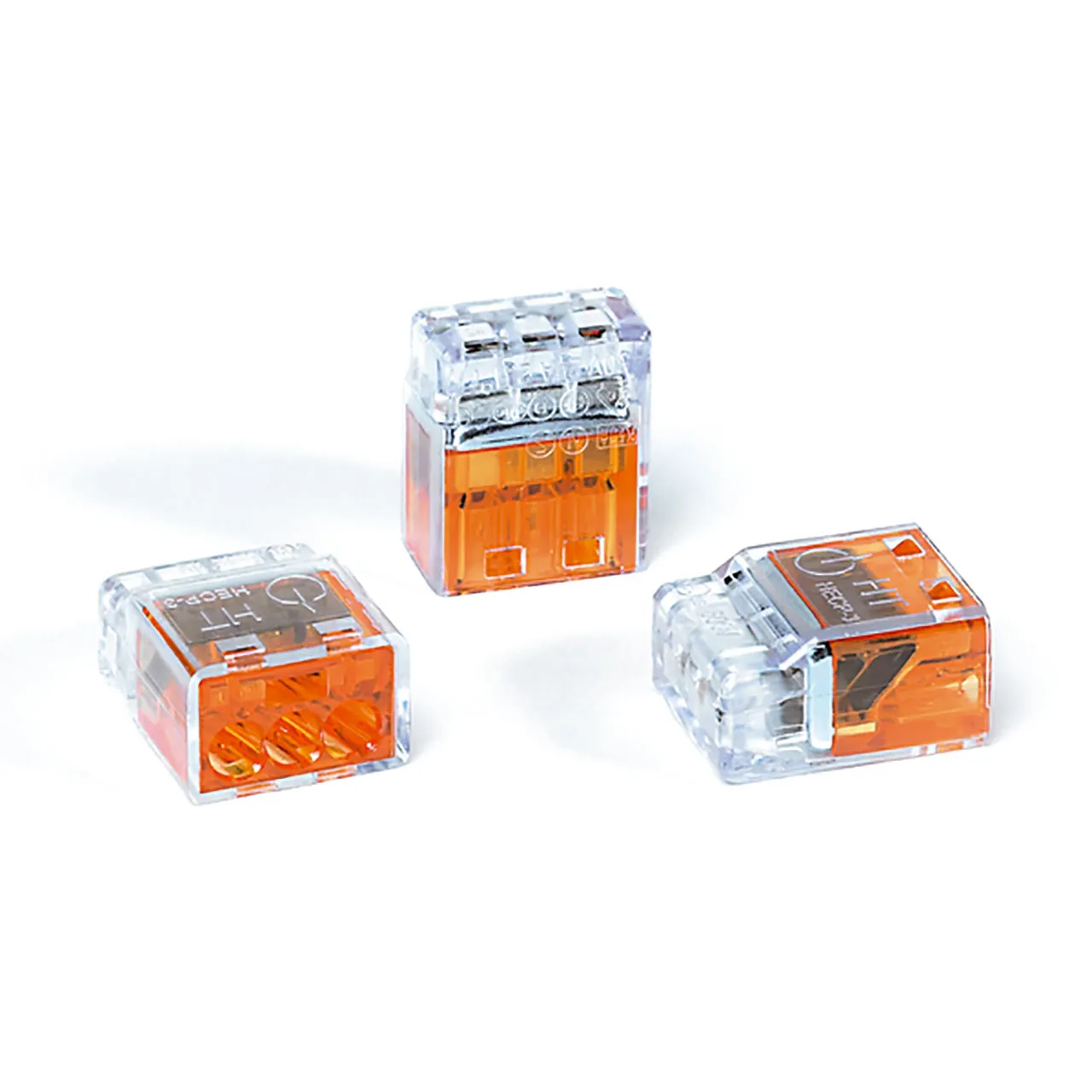

HelaCon Plus Mini, Push-In Style Wire Connector, Double Spring, 3-Port, (Piece), Orange, 100 per Package

Features

• Spring technology for safe, secure and reliable connections. Smaller footprint fits in tight spaces. Low insertion force makes installation of solid or stranded copper wire fast and easy. Color coded for easy identification of size. Each port accepts multiple wire diameters for flexible applications. Accepts 12-22 AWG solid wire and 14-22 AWG stranded wire.
• Product Type: Wire Connectors

Technical Specifications

• Material: Polycarbonate (PC)
• Operating Temperature: -22°F to +185°F (-30°C to +85°C)
• Color: Orange (OG); Clear (CL)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Depth D (Imperial): 0.65"
• Depth D (Metric): 16.5 mm
• Focused Markets and Industries: Electrical Installation; Shipbuilding; Telecommunication
• Height H (Imperial): 0.30"
• Height H (Metric): 7.70 mm
• Length L (Imperial): 0.65"
• Length L (Metric): 16.5 mm
• Max Current: 24 A
• Max Voltage: 600 V
• Stripping Length (Imperial): 0.43"
• Stripping Length (Metric): 11 mm
• Weight (Lbs) per 1 Content Unit without Packaging: 0.003637627323
• Width W (Imperial): 0.59"
• Width W (Metric): 15.1 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 V-0
• Halogen Free: Yes
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL-File Number + Logo: E316080 [cULus]
• UL Listed (US): Yes
• UL Listed (US and Canada): Yes
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• Voltage Rating (cULus): 600 V
• UPC: 089306392392

Overview

HelaCon Plus Mini Wire Connectors replace traditional twist-on wire connectors. They provide faster, easier and more reliable connection and distribution of cable and conductors in electrical installation applications. Mini connectors have a compact footprint and can be applied tool-free using convenient, push-in simplicity. Internal spring technology is approved for solid and stranded wires.
