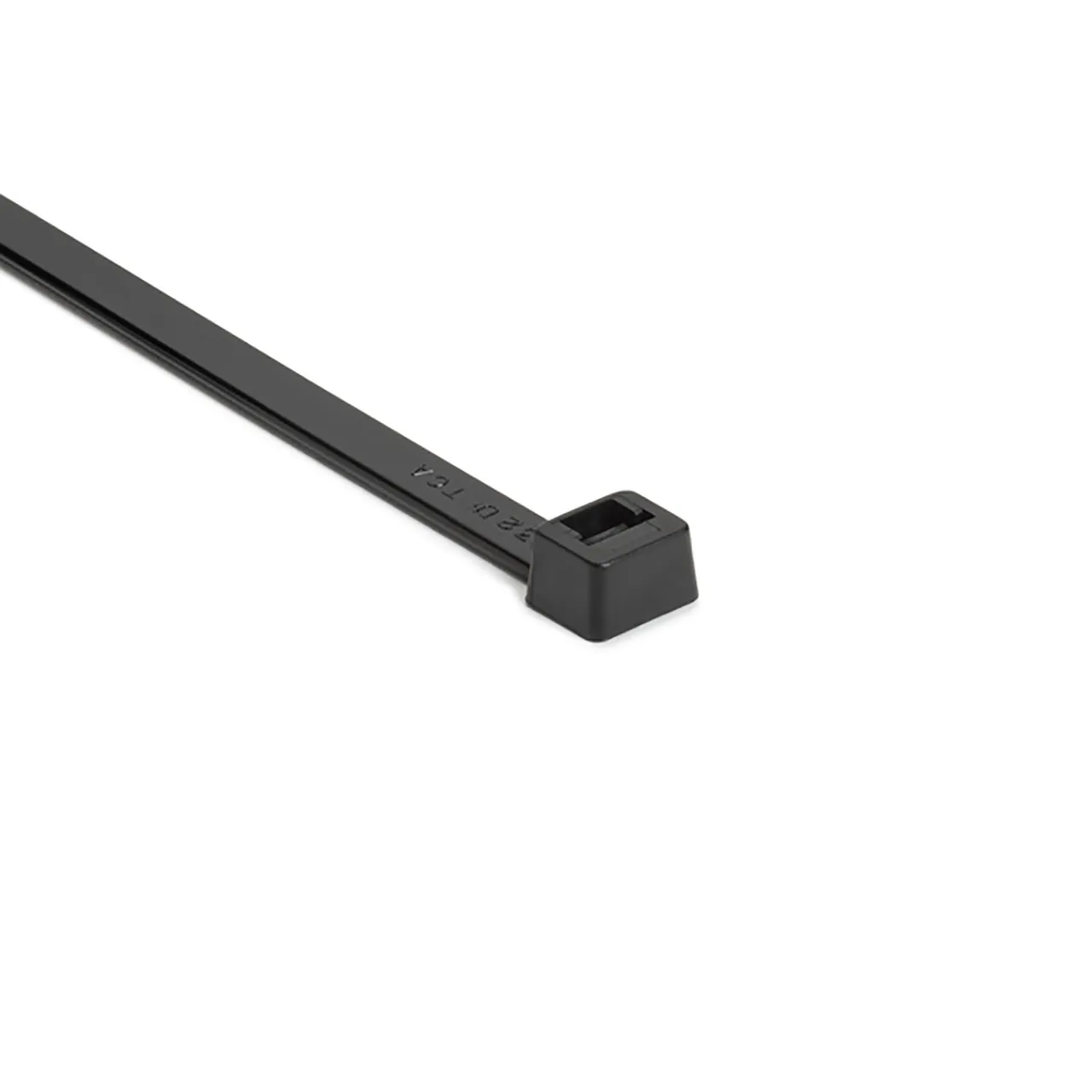

Heavy Duty Cable Tie, 30" Long, UL Rated, 120lb Tensile Strength, PA66HS, Black, 50 per Package

Features

• Heat stabilized heavy-duty cable ties provide excellent resistance to high heat exposures. Head design provides high tensile strength with very low insertion force.
• Product Type: Heavy Duty Cable Ties

Technical Specifications

• Material: Polyamide 6.6 heat stabilized (PA66HS)
• Operating Temperature: -40°F to +257°F (-40°C to +125°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Bundle Diameter Max. (Imperial): 8.86"
• Bundle Diameter Max. (Metric): 225.0 mm
• Bundle Diameter Min. (Imperial): 0.2"
• Bundle Diameter Min. (Metric): 5.0 mm
• Cable Tie Closure: plastic pawl
• Cable Tie Head Length (Imperial): 0.39"
• Cable Tie Head Length (Metric): 10.0 mm
• Cable Tie Head Width (Imperial): 0.51"
• Cable Tie Head Width (Metric): 13.0 mm
• Focused Markets and Industries: Solar Energy Sector; Wind Energy Sector; Rail Transportation Sector; Electronics Industry; Aerospace Industry; Shipbuilding; Defense Industry
• Height H (Metric): 7.8 mm
• Length L (Imperial): 30.0"
• Length L (Metric): 760.0 mm
• Recommended Application Tool: 110-05005; 110-06000; 110-80000; 110-80001; 110-80003; 110-80004
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 120 lbs
• Tensile Strength Min. (kgf): 54.56 kgf
• Tensile Strength Min. (Metric): 535 N
• Thickness T (Metric): 1.9 mm
• Toothing (Serration): Inside Serrated
• Variant: Inside Serrated
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• Width W (Imperial): 0.30"
• Width W (Metric): 7.6 mm
• CE Certified: Yes
• CSA Certified: No
• Flammability: UL 94 V-2
• Halogen Free: Yes
• Plenum Rating: AH-2
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL-File Number + Logo: E64139 [C_RU_US_62275_Type11]; E64139 [C_UL_US_63FN_Type21,21S]
• UL Listed (US): Yes
• UL Listed (US and Canada): Yes
• UL Recognized (US): Yes
• UL Recognized (US and Canada): Yes
• UV Resistant (Yes/No): No
• UPC: 089306058366

Overview

Heavy duty T-Series cable ties feature inside serrations to provide a positive hold on wire and cable bundles. Durable head design guarantees high tensile strength and a low insertion force. For high-volume applications, tensioning tools are available to ensure consistent and safe installation.
