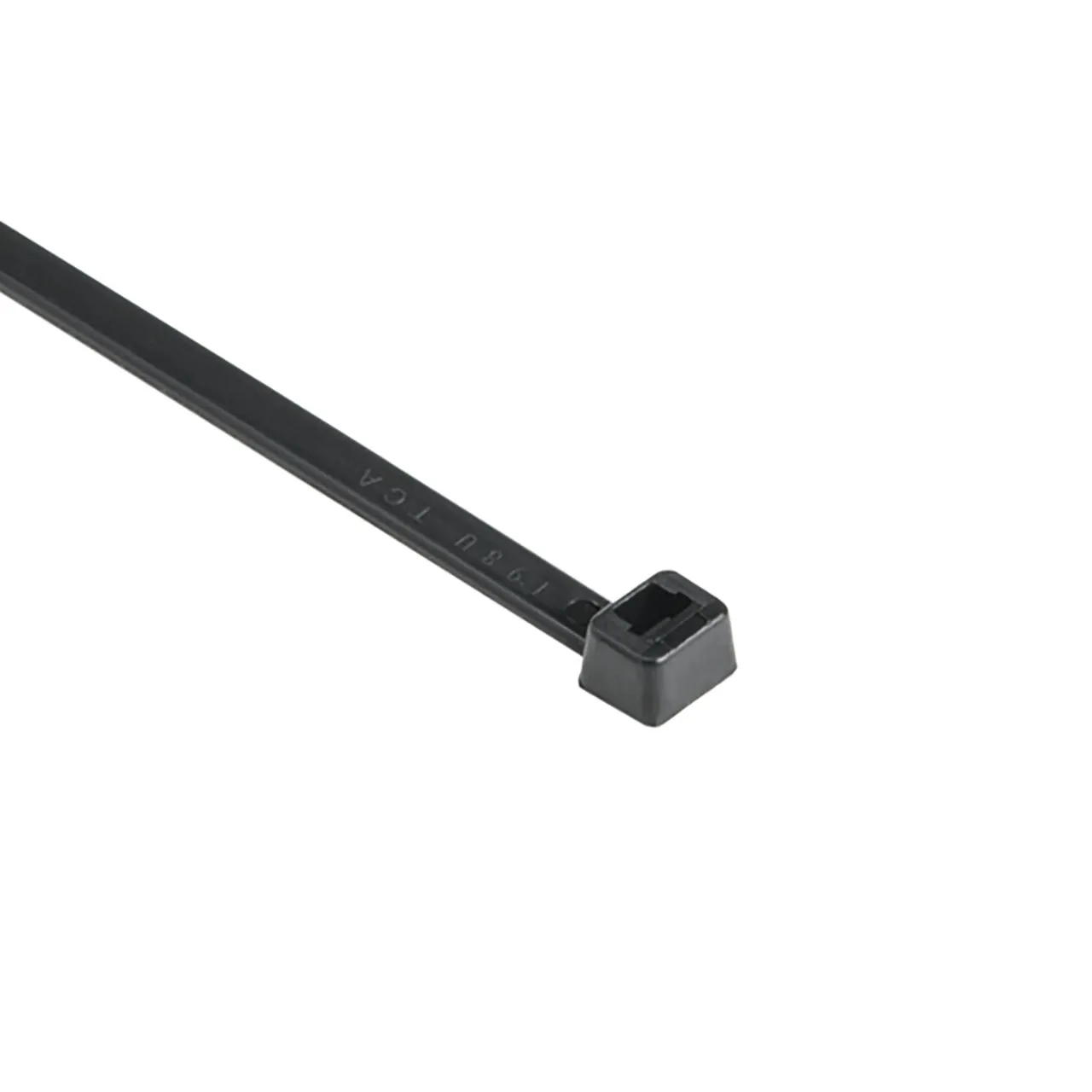

Heavy Duty Cable Tie, 21" Long, UL Rated, 175lb Tensile Strength, PA66HS, Black, 25 per Package

Features

• Heat stabilized heavy duty cable ties provide excellent resistance to high heat exposures. Head design provides high tensile strength with very low insertion force
• Product Type: Heavy Duty Cable Ties

Technical Specifications

• Material: Polyamide 6.6 heat stabilized (PA66HS)
• Operating Temperature: -40°F to +257°F (-40°C to +125°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Bundle Diameter Max. (Imperial): 5.91"
• Bundle Diameter Max. (Metric): 150.0 mm
• Bundle Diameter Min. (Imperial): 0.31"
• Bundle Diameter Min. (Metric): 8.0 mm
• Cable Tie Closure: plastic pawl
• Focused Markets and Industries: Solar Energy Sector; Wind Energy Sector; Rail Transportation Sector; Automotive Industry; Electronics Industry; Aerospace Industry; Shipbuilding; Defense Industry
• Length L (Imperial): 21.0"
• Length L (Metric): 530.0 mm
• Recommended Application Tool: 110-06000; 110-80000; 110-80001; 110-80003; 110-80004
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 175 lbs
• Tensile Strength Min. (kgf): 79.54 kgf
• Tensile Strength Min. (Metric): 780 N
• Thickness T (Imperial): 0.079"
• Thickness T (Metric): 2 mm
• Toothing (Serration): Inside Serrated
• Variant: Inside Serrated
• Weight (Lbs) per 1 Content Unit without Packaging: 0.018518830008
• Width W (Imperial): 0.35"
• Width W (Metric): 8.9 mm
• CE Certified: Yes
• CSA Certified: No
• Flammability: UL 94 V-2
• Halogen Free: Yes
• Hazardous Goods: No
• Plenum Rating: AH-2
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL-File Number + Logo: E64139 [C_RU_US_62275_Type11]; E64139 [C_UL_US_63FN_Type21,21S]
• UL Listed (US): Yes
• UL Listed (US and Canada): Yes
• UL Recognized (US): Yes
• UL Recognized (US and Canada): Yes
• UV Resistant (Yes/No): No
• UPC: 089306063025

Overview

Heavy duty T-Series cable ties feature inside serrations to provide a positive hold on wire and cable bundles. Durable head design guarantees high tensile strength and a low insertion force. For high-volume applications, tensioning tools are available to ensure consistent and safe installation.
