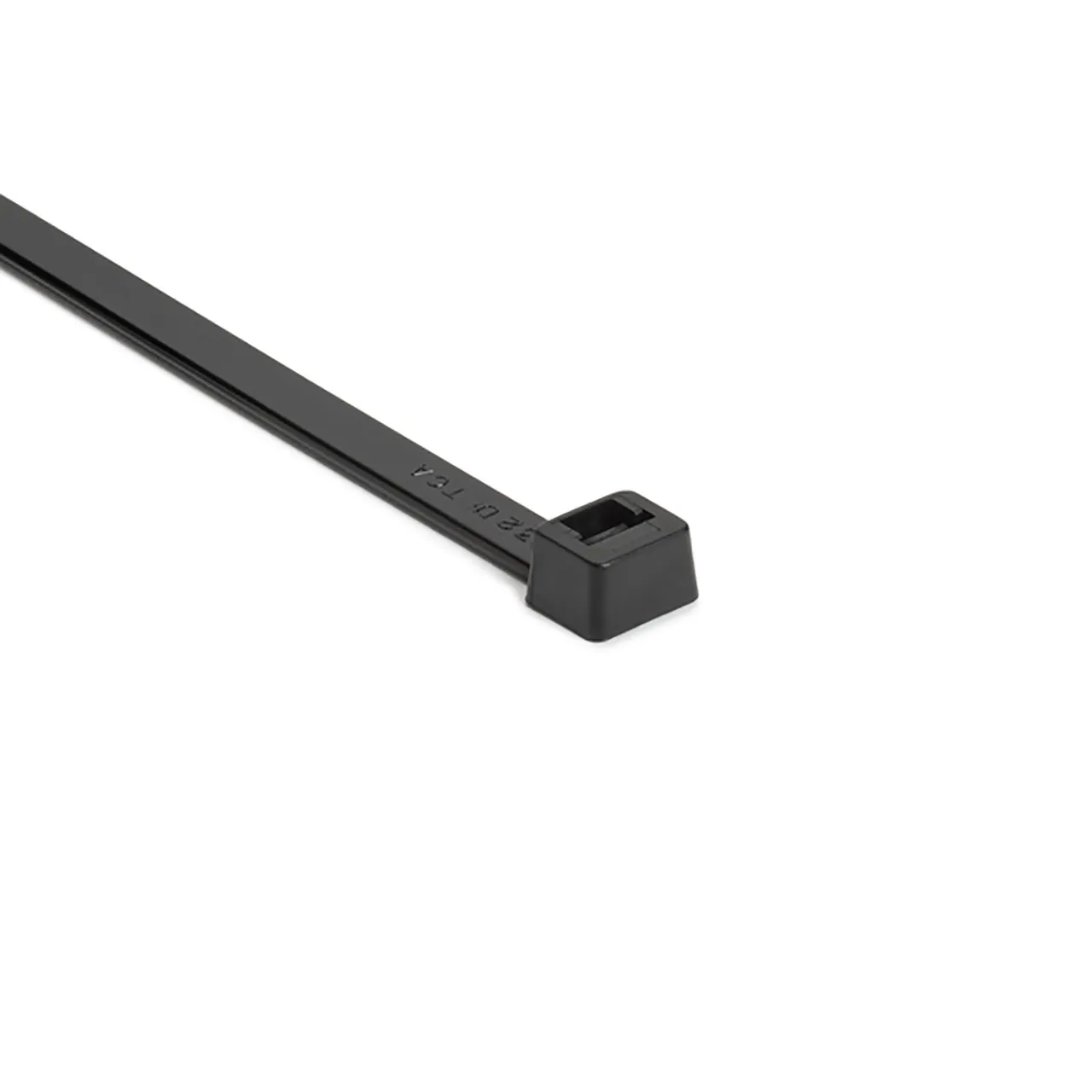

Heavy Duty Cable Tie, 12" Long, UL Rated, 120lb Tensile Strength, PA66HIRHSUV, Black, 500 per Package

Features

• High impact, heat and UV stabilized cable ties contain an impact modifier allowing greater flexibility and greater resistance to vibration. Inside serrations allow for strong grip on cables and wire bundles. Head design provides high tensile strength with very low insertion force.
• Product Type: Heavy Duty Cable Ties

Technical Specifications

• Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
• Operating Temperature: -40°F to +221°F (-40°C to +105°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Bundle Diameter Max. (Imperial): 3.15"
• Bundle Diameter Max. (Metric): 80.0 mm
• Bundle Diameter Min. (Imperial): 0.2"
• Bundle Diameter Min. (Metric): 5.0 mm
• Cable Tie Closure: plastic pawl
• Cable Tie Head Length (Imperial): 0.40"
• Cable Tie Head Length (Metric): 10.2 mm
• Cable Tie Head Width (Imperial): 0.51"
• Cable Tie Head Width (Metric): 13.0 mm
• Cable Tie Width Max. (Imperial): 0.3"
• Focused Markets and Industries: Solar Energy Sector; Wind Energy Sector; Rail Transportation Sector; Electronics Industry; Aerospace Industry; Shipbuilding; Defense Industry
• Height H (Metric): 7.7 mm
• Length L (Imperial): 12.0"
• Length L (Metric): 300.0 mm
• Recommended Application Tool: 110-05005; 110-06000; 110-80000; 110-80001; 110-80003; 110-80004
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 120 lbs
• Tensile Strength Min. (kgf): 54.56 kgf
• Tensile Strength Min. (Metric): 535 N
• Thickness T (Metric): 1.6 mm
• Toothing (Serration): Inside Serrated
• Variant: Inside Serrated
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• Width W (Imperial): 0.30"
• Width W (Metric): 7.6 mm
• CE Certified: Yes
• CSA Certified: No
• Flammability: UL 94 HB
• Halogen Free: Yes
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL-File Number + Logo: E64139 [C_RU_US_62275_Type11]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): Yes
• UV Resistant (Yes/No): Yes
• UPC: 089306057932

Overview

Manufactured from a specially formulated impact-resistant, heat and UV stabilized PA66 material, these cable ties offer increased flexibility, impact strength, heat and UV resistance to endure moisture fluctuations. T-Series Cable Ties feature inside serrations to provide a positive hold on wire and cable bundles. The head design guarantees high tensile strength and a low insertion force. For high-volume applications, tensioning tools are available to ensure consistent and safe installation.
