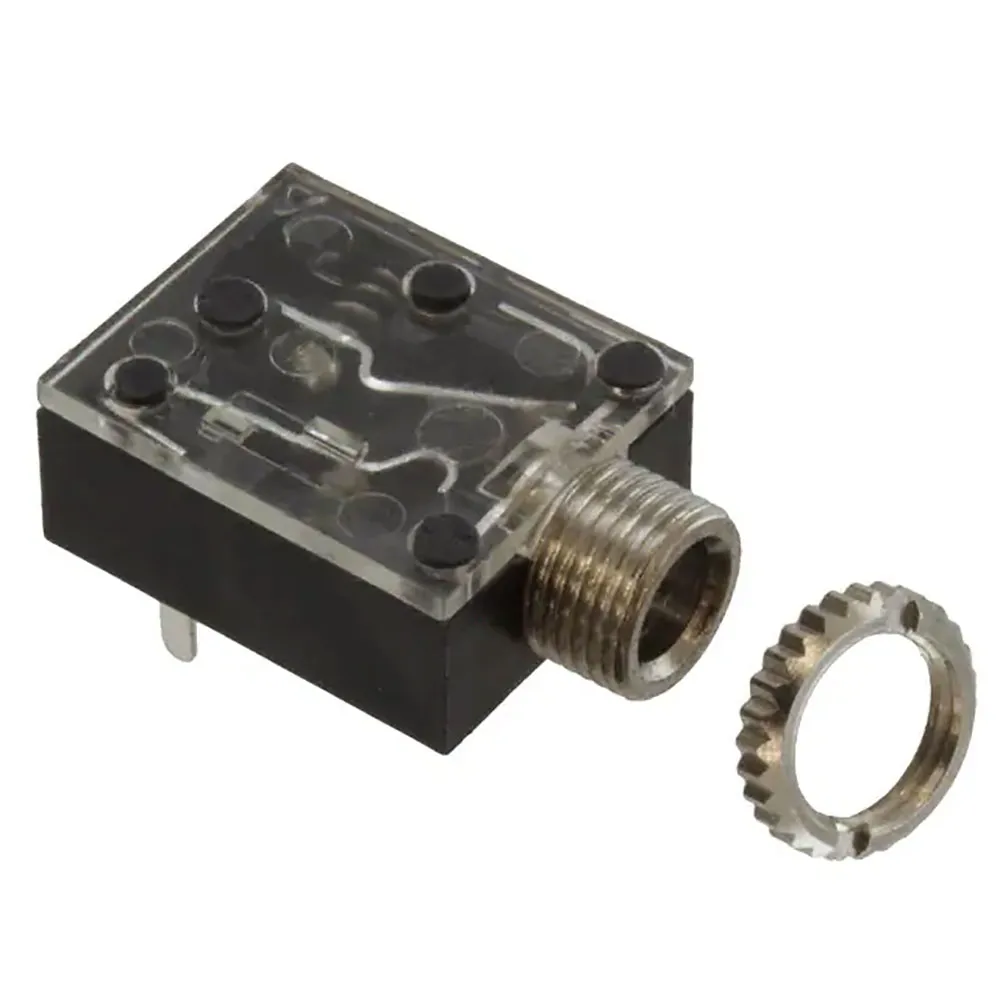

Headphone Phone Jack Stereo Connector 3.5mm 1/8" Mini Plug 3C Solder

Specifications

  • Series: 35
  • Connector Type: Phone Jack
  • Gender: Female
  • Signal Lines: Stereo (3 Conductor, TRS)
  • Industry Recognized Mating Diameter: 3.5 mm (0.141", 1/8", Mini Plug) - Headphone
  • Actual Diameter: 0.142" (3.6 mm)
  • Number of Positions/Contacts: 3 Conductors, 3 Contacts
  • Internal Switch(s): Does Not Contain Switch
  • Mounting Type: Panel Mount, Through Hole, Right Angle
  • Termination: Solder
  • Shielding: Unshielded
  • Features: Mounting Hardware, Thread Lock
  • Contact Material - Plating: Silver
  • Body Material: Brass
  • Body Color: Silver, Black
  • Includes: 3 pcs - 1 Connector, 1 Nut, 1 Washer
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Contact Material: Copper Alloy

Product Identification

Product Type:3.5 mm, Stereo

Dimensions & Appearance

Body Orientation:Right Angle
Color:Black
Mounting:Panel Mount
Dimensions:17.5L x 11.5W x 6D (mm)

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:65°C

Features

Number of Contacts:3
Contact Material:Copper Alloy
Termination Method:Solder
Housing Material:PBT
Contact Plating:Nickel
Gender:Jack
Current Rating:0.25 A
Voltage Rating:48 VDC
,
