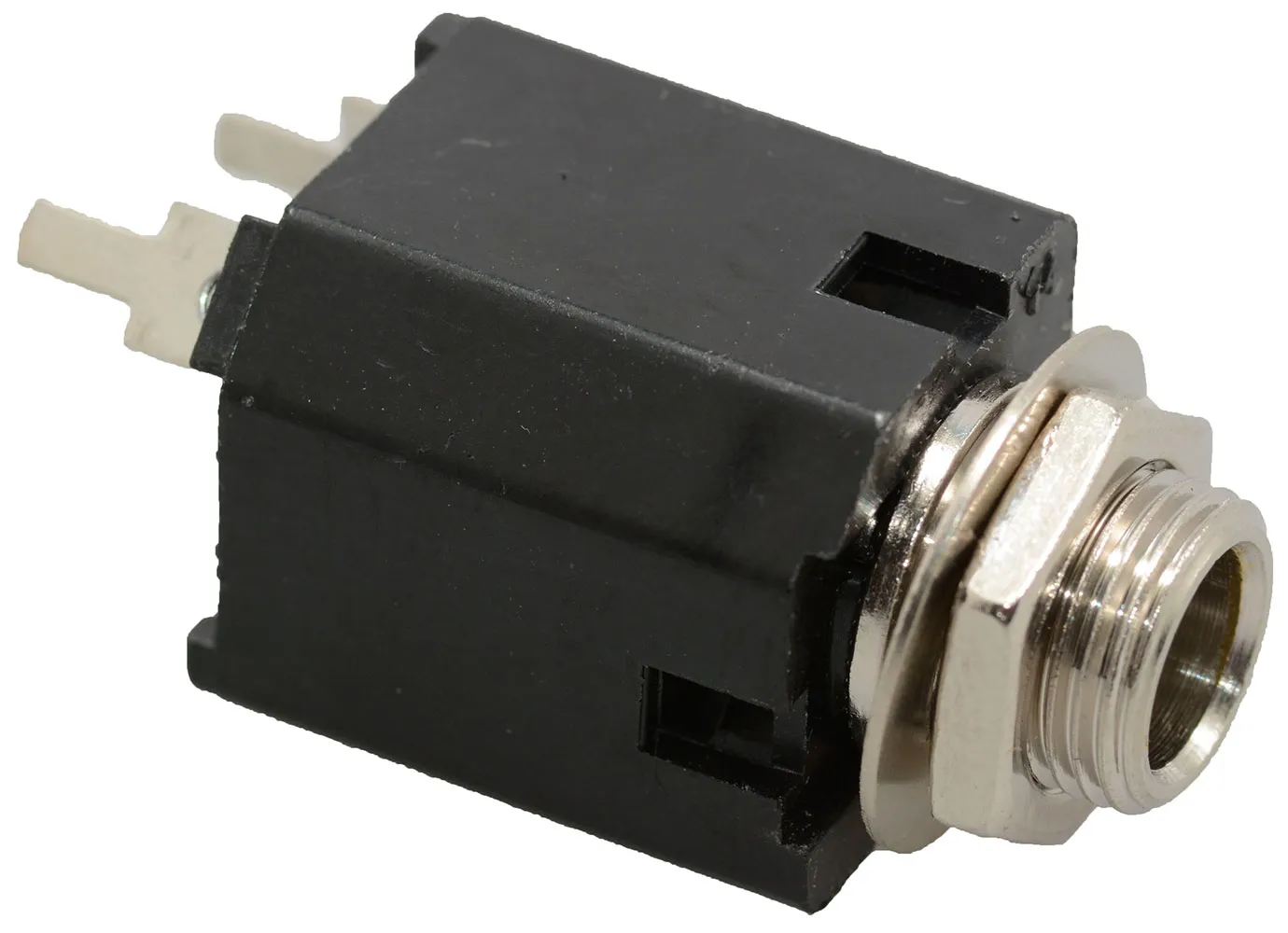

Headphone Phone Jack Mono Connector 1/4" Solder

Specifications

  • Series: Hi-D® 11*
  • Connector Type: Phone Jack
  • Gender: Female
  • Signal Lines: Mono
  • Industry Recognized Mating Diameter: 6.35 mm (0.250", 1/4") - Headphone
  • Actual Diameter: 0.250" (6.35 mm)
  • Number of Positions/Contacts: 2 Conductors, 2 Contacts
  • Internal Switch(s): Does Not Contain Switch
  • Mounting Type: Panel Mount, Through Hole
  • Termination: Solder
  • Shielding: Unshielded
  • Features: Mounting Hardware, Thread Lock
  • Operating Temperature: -20°C to 65°C
  • Voltage - Rated: 48 VDC
  • Current Rating (Amps): 3 A
  • Contact Material - Plating: Tin
  • Body Material: Brass
  • Body Color: Silver, Black
  • Includes: 3 pcs - 1 Connector, 1 Nut, 1 Washer
  • Housing Material: Polyester, Glass Filled
  • Contact Material: Brass
  • Panel Hole Size: 0.375" (9.52 mm)
  • Thread Size: 3/8"-32

Product Identification

Product Type:1/4", Mono

Dimensions & Appearance

Body Orientation:Straight
Color:Black
Mounting:Panel Mount
Dimensions:15.7L x 15.7W x 18.9H (mm)

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:65°C

Features

Number of Contacts:2
Contact Material:Brass
Termination Method:Solder
Contact Plating:Tin
Housing Material:Polyester Glass Filled
Gender:Jack
Voltage Rating:25 VDC
Current Rating:3 A
,
