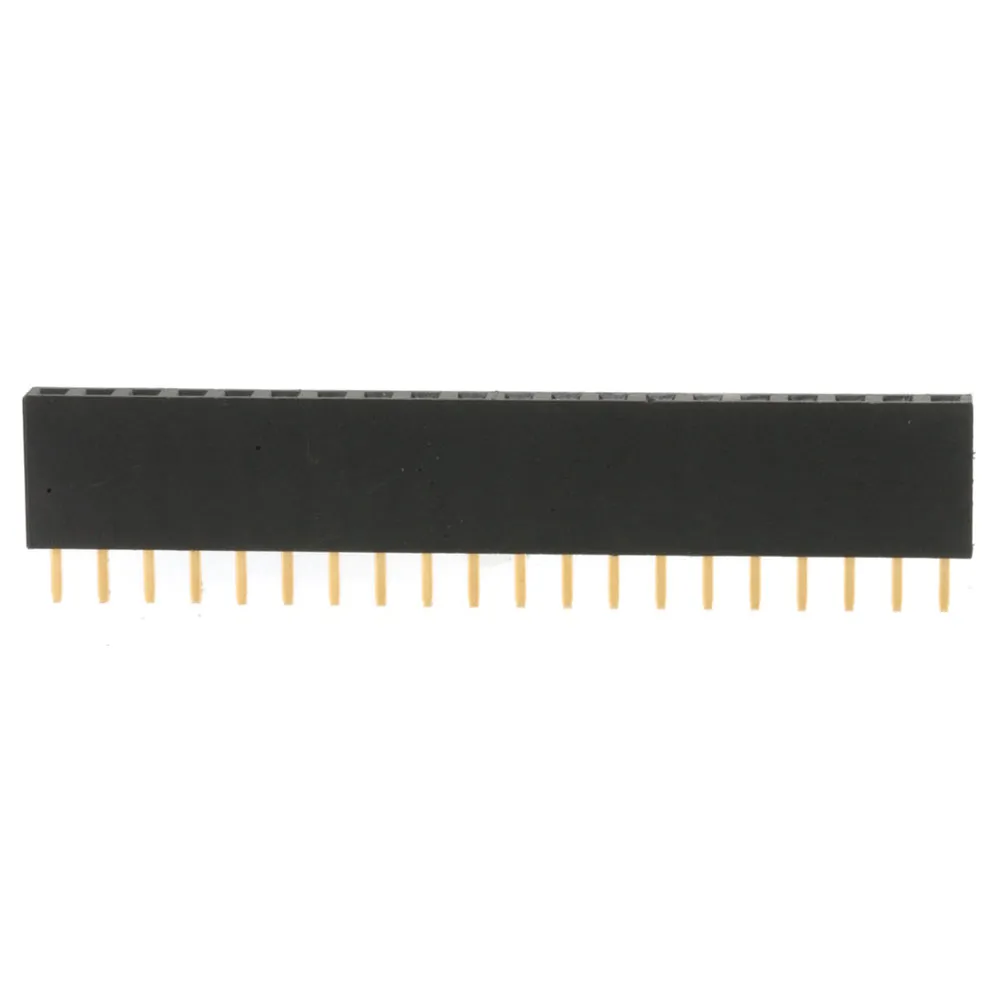

Header Vertical Receptacle 1 Row 20 Cont .100" 2.54mm Female Header Receptacle

Specifications

  • Gold-plated contacts

    • Dimensions & Appearance

    Body Orientation:Straight
    Depth:8.4 mm
    Length:51.3 mm

    Features

    Number of Rows:1
    Housing Color:Black
    Contact Material:Brass
    Maximum Contact Resistance:30 mOhm
    Contact Plating:Gold
    Number of Contacts:20
    Gender:Female
    Housing Material:Polybutylene Terephthalate
    Pitch:2.54 mm
    Current Rating:1 A
    Voltage Rating:250 VAC
    ,
