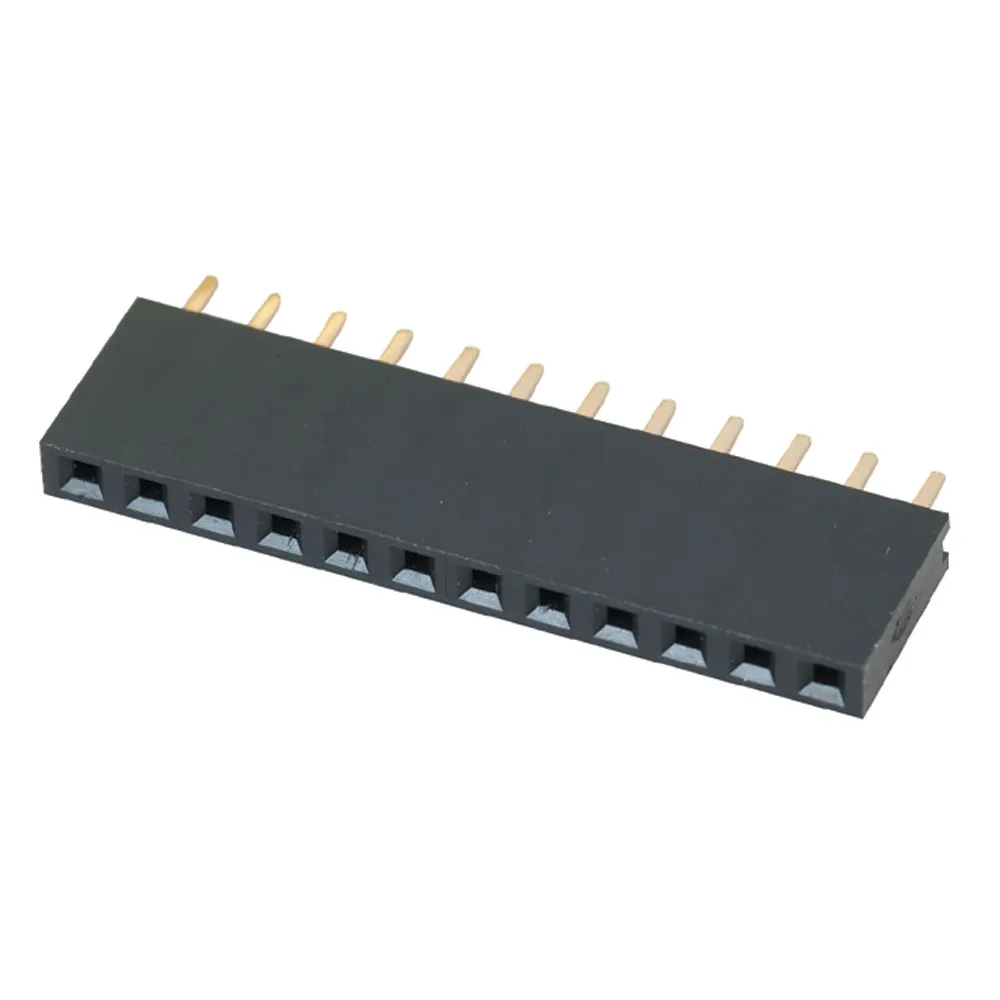

0.100" (2.54mm) Female Header Receptacle

Single Row Straight (Top Entry)

  • Number of contacts: 12

    • Dimensions & Appearance

    Body Orientation:Straight
    Depth:8.4 mm
    Length:30.98 mm

    Features

    Number of Rows:1
    Housing Color:Black
    Maximum Contact Resistance:30 mOhm
    Contact Plating:Gold
    Number of Contacts:12
    Gender:Female
    Contact Material:Phosphor Bronze/Brass
    Housing Material:Polybutylene Terephthalate
    Pitch:2.54 mm
    Current Rating:1 A
    Voltage Rating:250 VAC
    ,
