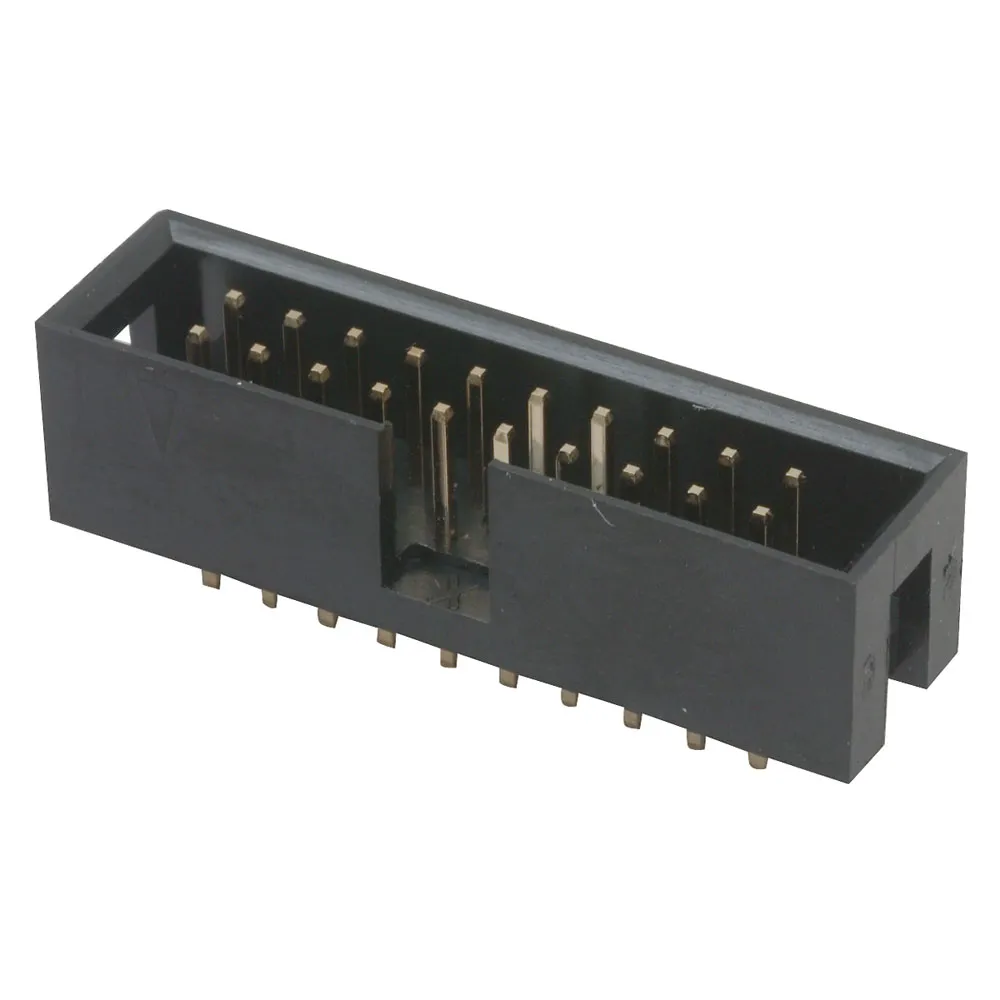

Low Profile Male Shrouded Headers

Specifications

  • Contact: Phosphor bronze, gold plated
  • UL recognized CSA certified; 0.025"square post mates with sockets on 0.100"x0.100" grid

    • Product Identification

    Additional Feature:POLARIZED
    Product Type:Header
    Manufacturer Series:ValuePro

    Dimensions & Appearance

    Style:Board to Cable/Wire Shrouded - 4 Wall
    Mounting:Through Hole
    Body Orientation:Straight

    Features

    Number of Rows:2
    Fastening Method:Push-Pull
    Number of Contacts:20
    Termination Method:Solder
    Gender:Male Pin
    Pitch:2.54 mm, 0.100 in.
    ,
