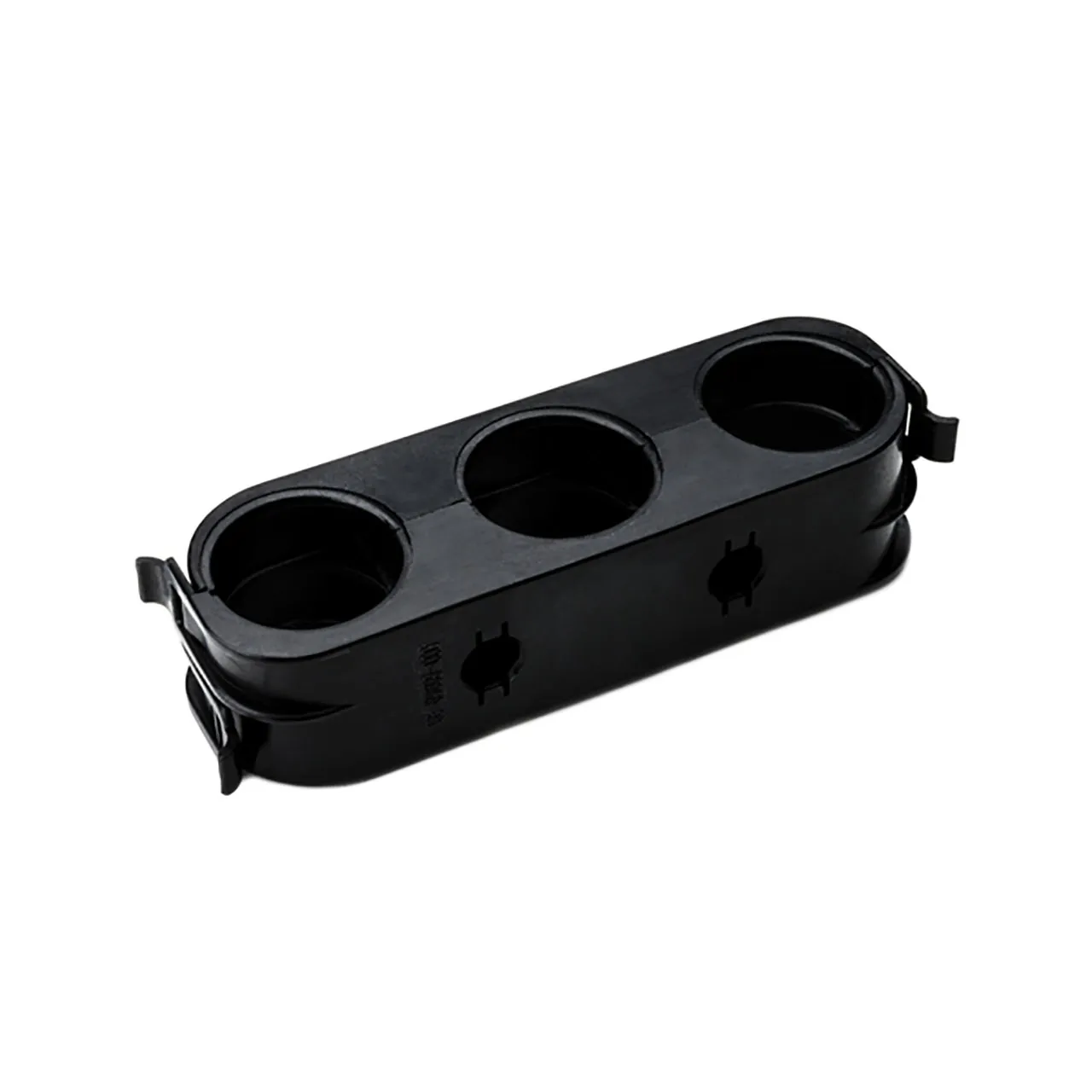

HC Clamp Bundle Separator, Three Hole, PA66GFHIRHS, Black, 500 per Package

Features

• Separates and secures bundles avoiding abrasion. Designed to handle both convoluted tubing and bundles not covered in convoluted tubing. Available in a variety of sizes and colors to be easily identified.
• Product Type: Bundle Separation Clamps;Convoluted Tubing - Accessories

Technical Specifications

• Material: Polyamide 6.6, high impact modified, glass-fiber reinforced (PA66HIRGF13)
• Operating Temperature: -40°F to +257°F (-40°C to +125°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Bundle Diameter 1st Hole Max. (Imperial): 0.96"
• Bundle Diameter 1st Hole Max. (Metric): 24.39 mm
• Bundle Diameter 2nd Hole Max. (Imperial): 0.96"
• Bundle Diameter 2nd Hole Max. (Metric): 24.39 mm
• Bundle Diameter 3rd Hole Max. (imperial): 0.96"
• Bundle Diameter 3rd Hole Max. (metric): 24.39 mm
• Bundle Diameter Max. (Imperial): 0.96"
• Bundle Diameter Max. (Metric): 24.3 mm
• Bundle Diameter Min. (Imperial): 0.96"
• Bundle Diameter Min. (Metric): 24.39 mm
• Height H (Imperial): 1.38"
• Height H (Metric): 34.94 mm
• Length L (Imperial): 4.246"
• Length L (Metric): 107.86 mm
• Mounting Hole Diameter D (Imperial): 0.32"
• Mounting Hole Diameter D (Metric): 8.12 mm
• Variant: Separators
• Weight (Lbs) per 1 Content Unit without Packaging: 0.04755811915864
• Width W (Imperial): 1.1"
• Width W (Metric): 27.94 mm
• CE Certified: No
• CSA Certified: No
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306343189

Overview

HC Clamps separate multiple bundles and secure them to brackets or frame rails. Each mount has two pawls for easy pre-installation on a threaded fastener prior to securing with a mechanical fastener. HC Clamps have ribs that make them ideal for convoluted tubing, but they can also be used to separate separate bundles that aren't protected with convoluted tubing.
