Handi-Pak Marker Booklet, (150) T1, T2, T3, White, 1 per Package

Features

• Handi-Paks booklets fit in a pocket for easy transport and access. A single marker can be removed at the top of each label so that the terminal block can be marked and the remaining label can be used to mark the associated wire connected to the terminal. Markers are kitted on each page so that any marker can be removed without affecting the other markers on the page. Markers have a micro-perforation in the middle of each marker so that they can be broken into two pieces for use on small gauge wires, eliminating waste and reducing costs.
• Product Type: Pre-Printed Wire Labels

Technical Specifications

• Material: Vinyl Cloth (TYHC)
• Operating Temperature: -40°F to +248°F (-40°C to +120°C)
• Color: White (WH)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Adhesive: Rubber
• Adhesive Operating Temperature: -40°F to +248°F (-40°C to +120°C)
• Bundle Diameter Max. (Imperial): 0.3"
• Bundle Diameter Max. (Metric): 7.50 mm
• Bundle Diameter Min. (Imperial): 0.13"
• Bundle Diameter Min. (Metric): 3.40 mm
• Color of Print: Black (BK)
• Height H (Imperial): 1.5"
• Height H (Metric): 28.1 mm
• Installation Temperature: from +50°F (from +10°C)
• Labels per Column: 15
• Labels per Row: 3
• Labels per Sheet: 45
• Length L (Imperial): 1.625"
• Length L (Metric): 41.27 mm
• Outside Diameter Max. (Imperial): 0.375"
• Outside Diameter Max. (Metric): 9.52 mm
• Outside Diameter Min. (Imperial): 0.1"
• Outside Diameter Min. (Metric): 2.54 mm
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• Width W (Imperial): 0.25"
• Width W (Metric): 6.35 mm
• CE Certified: No
• CSA Certified: No
• Halogen Free: No
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306096252

Overview

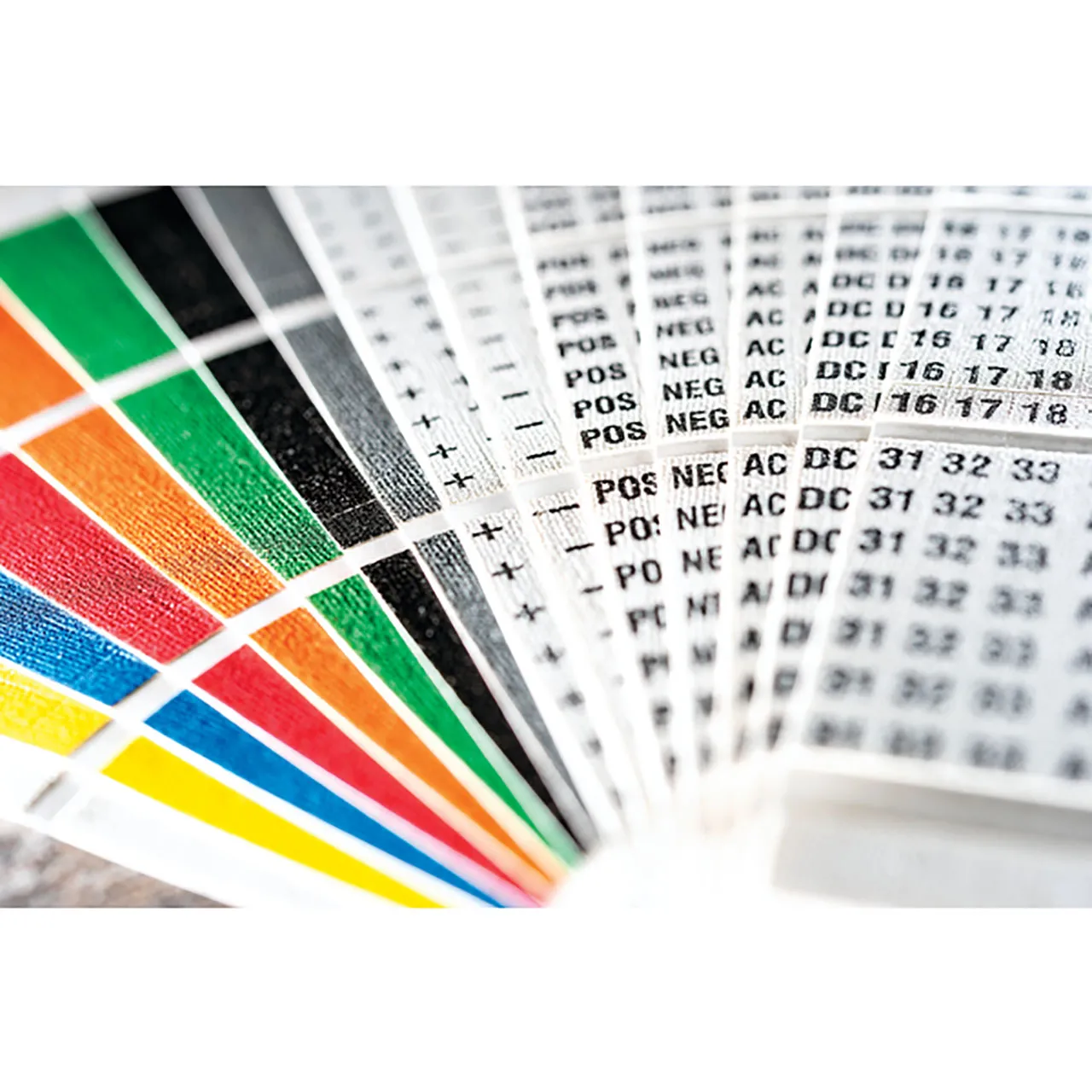

Handi-Pak Marker Booklets are convenient pocket sized books that contain pages of black, pre-printed legends on a white background. The legends are printed on a plastic coated cloth label that remains flexible for use in identifying wires and cables. A strong adhesive assures long lasting identification on small wires, cables or anything requiring permanent or temporary identification.
