Handi-Card Wire and Cable Markers, 0.25" x 1.5", Solid #20, 36 Per Card, TYHC, White, 25 per Package

Features

• Handi-Cards have a split backing so that a portion of the liner can be removed to expose the markers for easy dispensing. Handi-Cards are kitted on the card so that specific markers can be removed without affecting the other markers on the card. Markers are pre-printed so no additional post printing is required, saving time and money. Label material is a conformable cloth that ensures markers stay on wires and cables for the life of the application.
• Product Type: Pre-Printed Wire Labels

Technical Specifications

• Material: Vinyl Cloth (TYHC)
• Operating Temperature: -40°F to +248°F (-40°C to +120°C)
• Color: White (WH)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Adhesive: Rubber
• Adhesive Operating Temperature: -40°F to +248°F (-40°C to +120°C)
• Bundle Diameter Max. (Imperial): 0.3"
• Bundle Diameter Max. (Metric): 7.50 mm
• Bundle Diameter Min. (Imperial): 0.13"
• Bundle Diameter Min. (Metric): 3.40 mm
• Height H (Imperial): 1.50"
• Height H (Metric): 38.10 mm
• Installation Temperature: from +50°F (from +10°C)
• Labels per Column: 1
• Labels per Row: 36
• Labels per Sheet: 36
• Length L (Imperial): 1.5"
• Length L (Metric): 38.1 mm
• Outside Diameter Max. (Imperial): .290"
• Outside Diameter Max. (Metric): 7.50 mm
• Outside Diameter Min. (Imperial): .130"
• Outside Diameter Min. (Metric): 3.40 mm
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• Width W (Imperial): 0.25"
• Width W (Metric): 6.35 mm
• CE Certified: No
• CSA Certified: No
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306101840

Overview

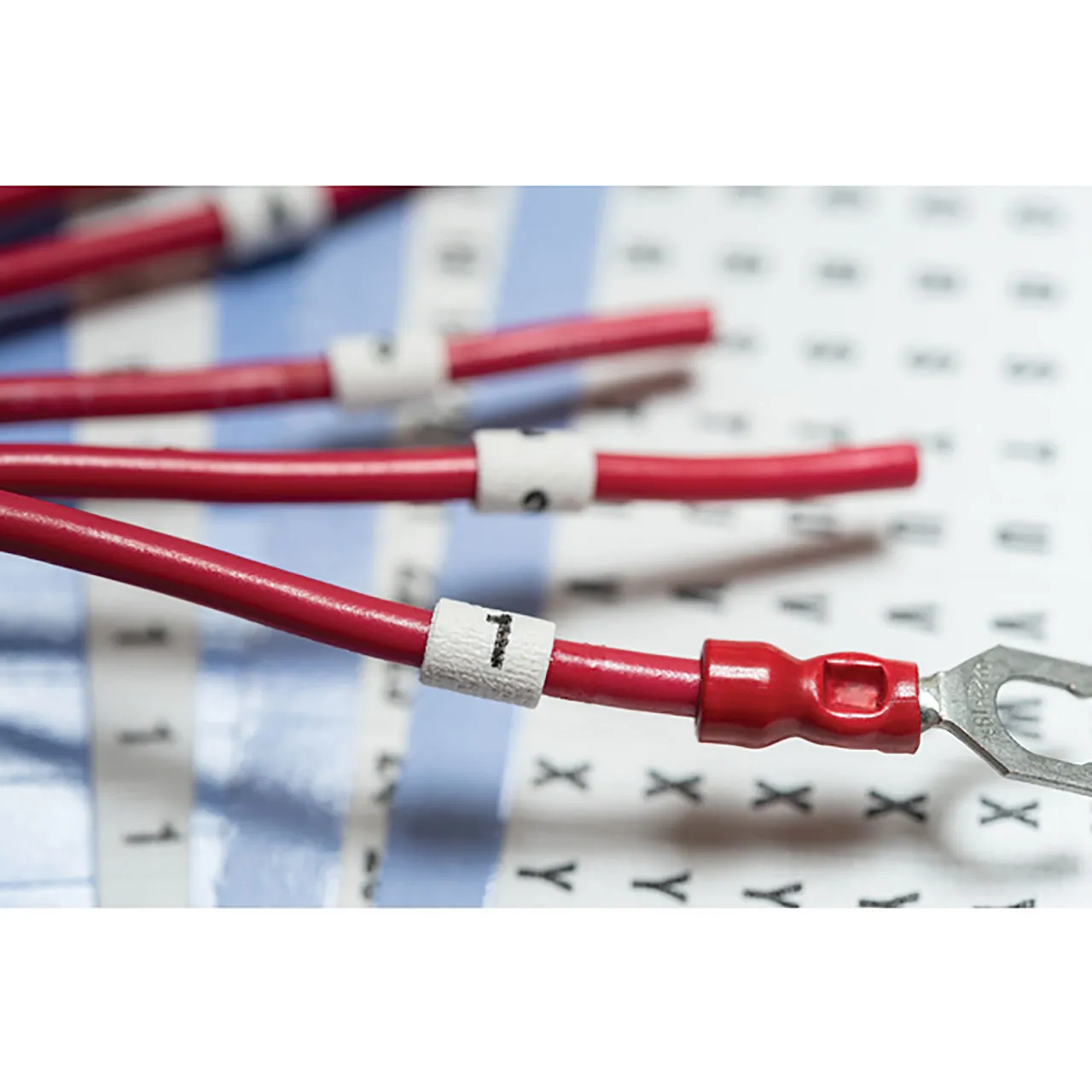

HellermannTyton Handi-Cards are easy release pre-printed cloth markers, on a plastic card, with a strong adhesive for a long lasting bond on wire and cable. The markers are available in Solid format where each marker on the card contains the same legend and Sequence format where each marker on the card contains a different number or letter which is usually printed in sequence from lowest to highest in sort order.
