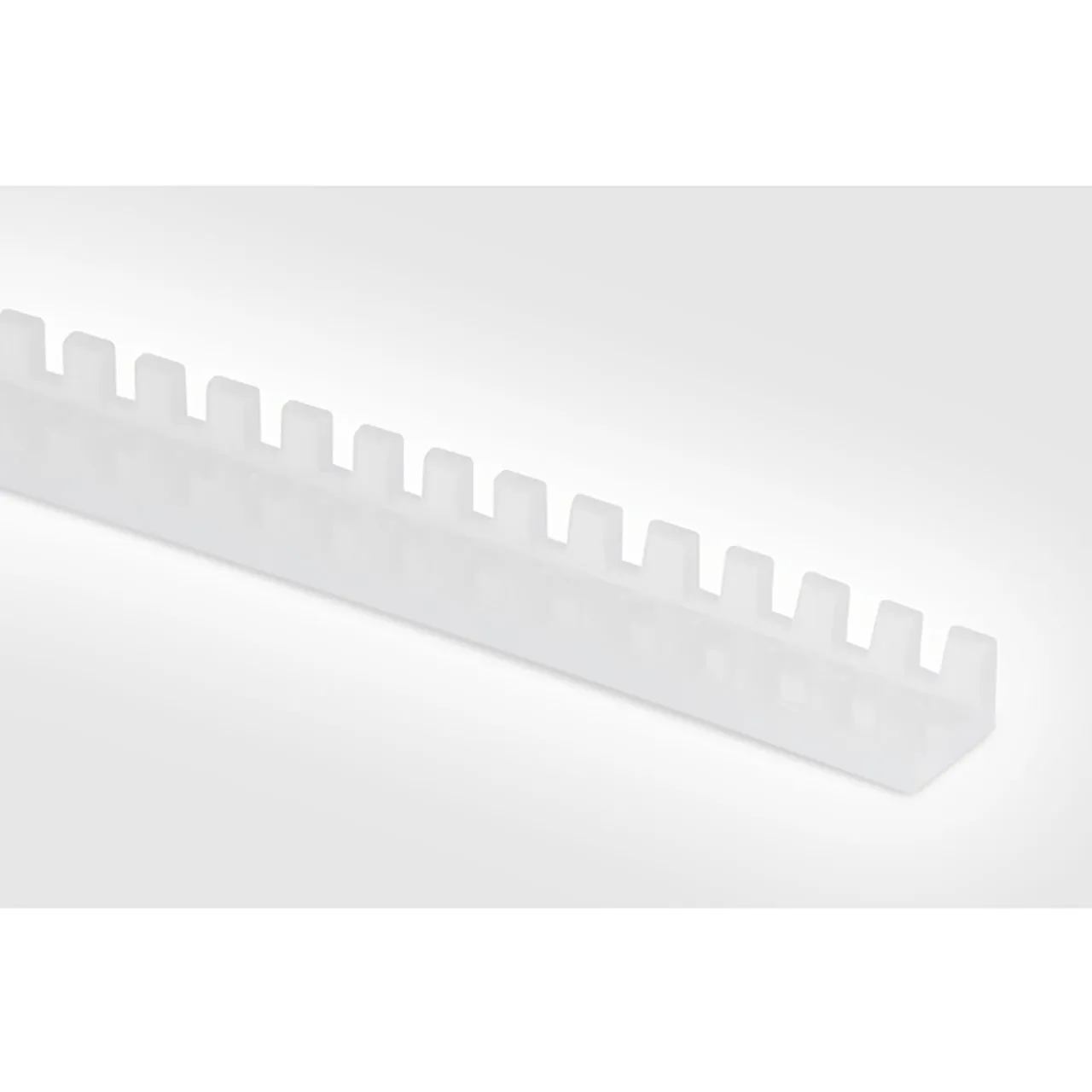

Grommet, Panel Thickness 0.319''-0.382'', PE, Natural, 82ft per Package

Features

• Can be cut to length with scissors, eliminating waste and keeping stock to a minimum. Available in 9 sizes, for thicknesses from .016" to .512", insuring proper fit.
• Product Type: Grommet Edging - General Purpose

Technical Specifications

• Material: Polyethylene (PE)
• Operating Temperature: -22°F to +176°F (-30°C to +80°C)
• Color: Natural (NA)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Focused Markets and Industries: Electronics Industry
• Height H (Imperial): 0.268"
• Height H (Metric): 6.8 mm
• Height H2 (Imperial): 0.189"
• Height H2 (Metric): 4.8 mm
• Length L (Imperial): 82.0 ft
• Panel Thickness (Imperial): 0.32 - 0.38"
• Panel Thickness (Metric): 8.1 - 9.7 mm
• Panel Thickness Max. (Imperial): 0.38"
• Panel Thickness Max. (Metric): 9.7 mm
• Panel Thickness Min. (Imperial): 0.32"
• Panel Thickness Min. (Metric): 8.1 mm
• Reel Length (imperial): 9.7 ft
• Variant: Open
• Weight (Lbs) per 1 Content Unit without Packaging: 0.06915019309892
• Width W (Imperial): 0.52"
• Width W (Metric): 13.2 mm
• Width W2 (Imperial): 0.398"
• Width W2 (Metric): 10.1 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 HB
• Halogen Free: Yes
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306016243

Overview

HellermannTyton's Flexiform grommet is a unique, continuous wire protection product which fits easily in all shapes and sizes of holes without the aid of tools or adhesives. Flexiform grommet can be used on any type of material including wood, steel, aluminum, plexiglass, and glass.
