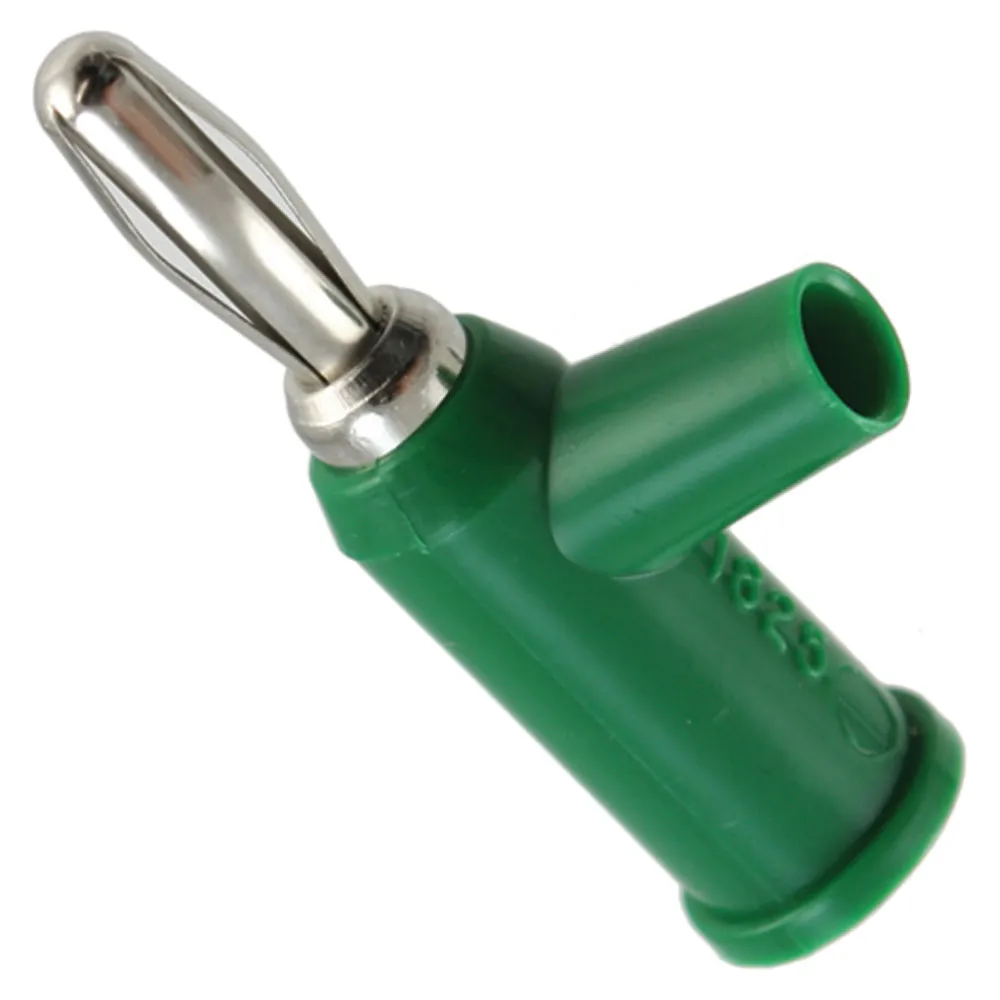

Green Standard Solderless Stackable Banana Plug with Safety Collar (10-Pack)
Features:
- Designed to fit on the end of any 22 AWG to 18 AWG wire
- Cross hole wire entry fits wires up to .12" (3mm) diameter
- Set screw simplifies assembly of test leads and jumpers by using a flat blade screwdriver
- Fits standard panel and binding post banana jacks .161" to .166" (4mm to 4.2mm) diameter
- Banana jack: Beryllium Copper, Gold-plated
- Banana Plug: Body - Brass, Nickel-plated; Spring - Beryllium Copper, Nickel-plated
- Insulation: Polypropylene
- Set screw: Steel, Zinc Plated, 8-32 Single Slot
- Voltage rating: 5000Vrms max.
- Current rating: 15 Amps
- Maximum operating temperature: +122°F (+50°C) max
- Dimensions: 1.55"L x 0.44" diameter
- Color: Green
- Comes in a package of 10 pieces
Product Identification
Additional Feature:Accepts 0.161" to 0.166" (4mm to 4.2mm) Plug, Safety Shield, Bag of 10
Product Type:Banana Plug, Stackable
Manufacturer Series:ValuePro
Dimensions & Appearance
Color:Green
Length:1.550 in.
Body Material:ABS
Mounting Type:Free Hanging
Features
Insulation Material:ABS
Contact Material:Brass
Insulation:Yes
Contact Plating:Nickel
Gender:Male
Wire Gauge (AWG):18-22
Termination:Screw, 8-32
Voltage Rating:5000 Vrms
Current Rating:15 A
