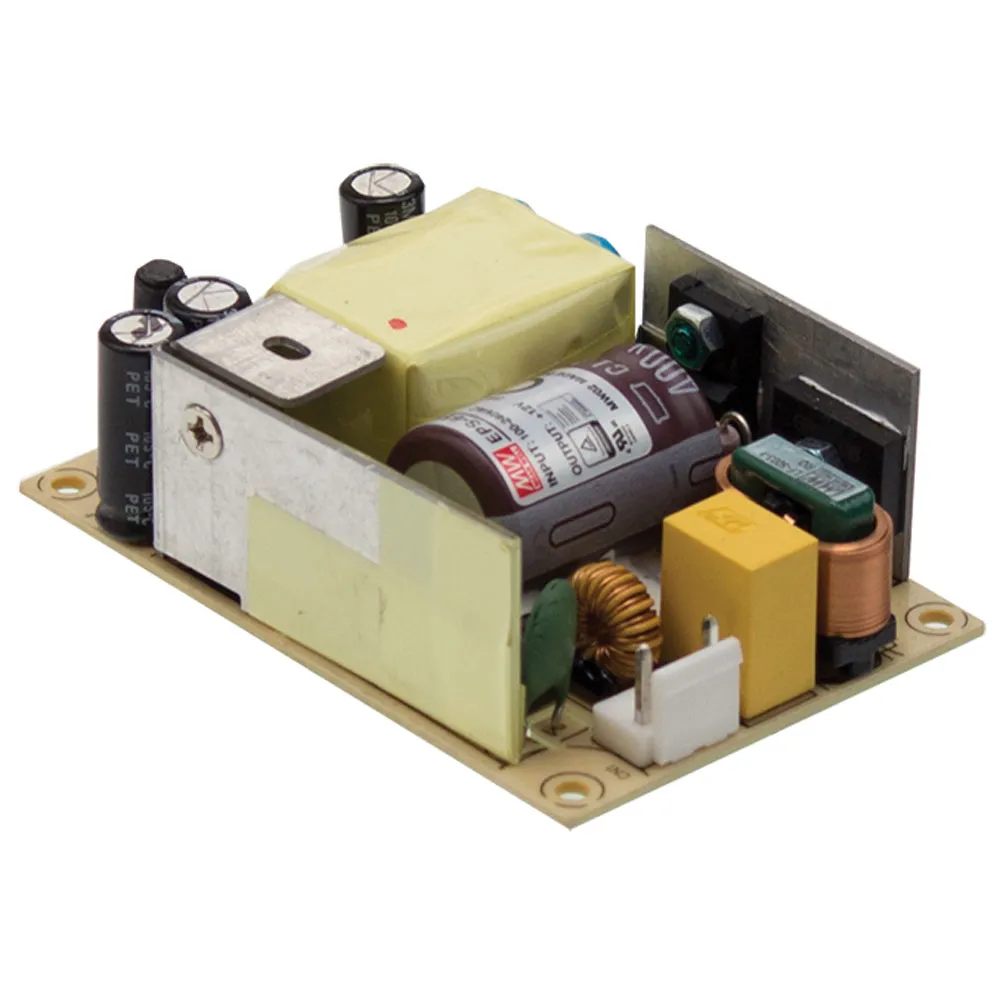

45W Single Output Open Frame Switching Power Supply

5 Volts @ 8 Amps

Features:

  • 3"x2" miniature size
  • Universal AC input/Full range
  • Class II (without FG) installations
  • For 1U applications
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • No load power consumption < 0.1W
  • 3 year warranty

    Applications:

  • Industrial electrical equipment
  • Mechanical equipment
  • Factory automation equipment
  • Handheld electronic device

    • Product Identification

    Manufacturer Series:EPS-45

    Compliance

    Agency Approvals: CCC, CE, CUL, EAC, EN, TUV, UKCA, UL

    Dimensions & Appearance

    Style:Open Frame
    Height:0.95 in.
    Width:2 in.
    Length:3 in.

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:85°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:80 VAC to 264 VAC
    Maximum Input Current:1.2 A

    Output

    Number of Outputs:1
    Output Connector Type:JST B2P-VH or equiv.
    Output Voltage:5 VDC
    Additional Output Voltages (VDC):N/A
    Output Current:8 A

    Features

    PFC Function:No
    Efficiency:83%
    Power Rating:40 W
    ,
