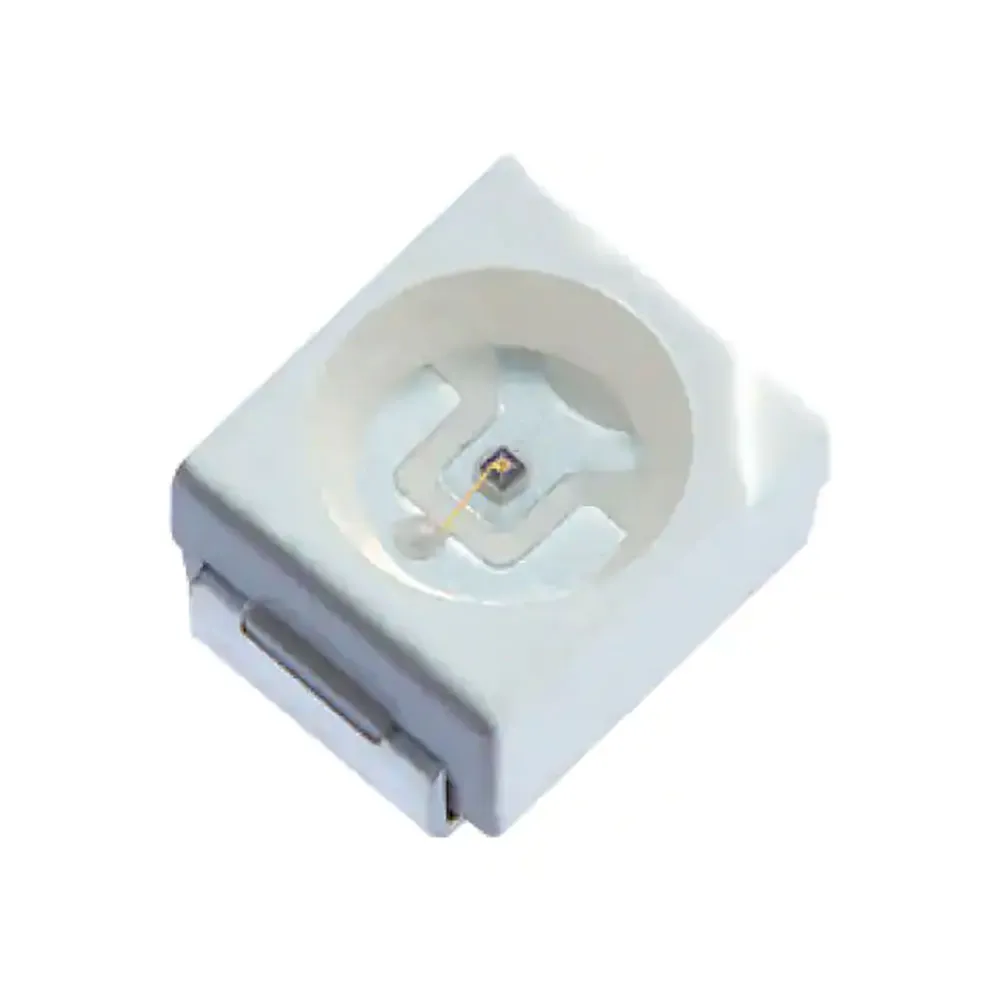

Green 525nm Discrete LED Indication 3.2V 1395mcd 2-PLCC

Specifications

  • Color: Green
  • Configuration: Standard
  • Lens Color: Colorless
  • Lens Transparency: Clear
  • Millicandela Rating: 1395 mcd
  • Lens Style: Round with Flat Top
  • Lens Size: 2.4 mm Diameter
  • Voltage - Forward (Vf) (Typ): 3.2 V
  • Current - Test: 20 mA
  • Viewing Angle: 120°
  • Mounting Type: Surface Mount
  • Wavelength - Dominant: 525 nm
  • Wavelength - Peak: 520 nm
  • Package: 2-PLCC
  • Size: 3.20mm L x 2.8 mm W
  • Height (Max): 2.1 mm

Product Identification

Product Type:SMD LED

Dimensions & Appearance

Color:Green
Height:2.10 mm
Width:2.80 mm
Length:3.20 mm
Mounting:SMD

Packaging

Package:PLCC-2

Features

Peak Wavelength:520 nm
Typical Forward Current:20 mA
Lens Type:Water Clear
Viewing Angle:120°
Typical Forward Voltage:3.2 V
Luminous Intensity:1395 mcd
,
