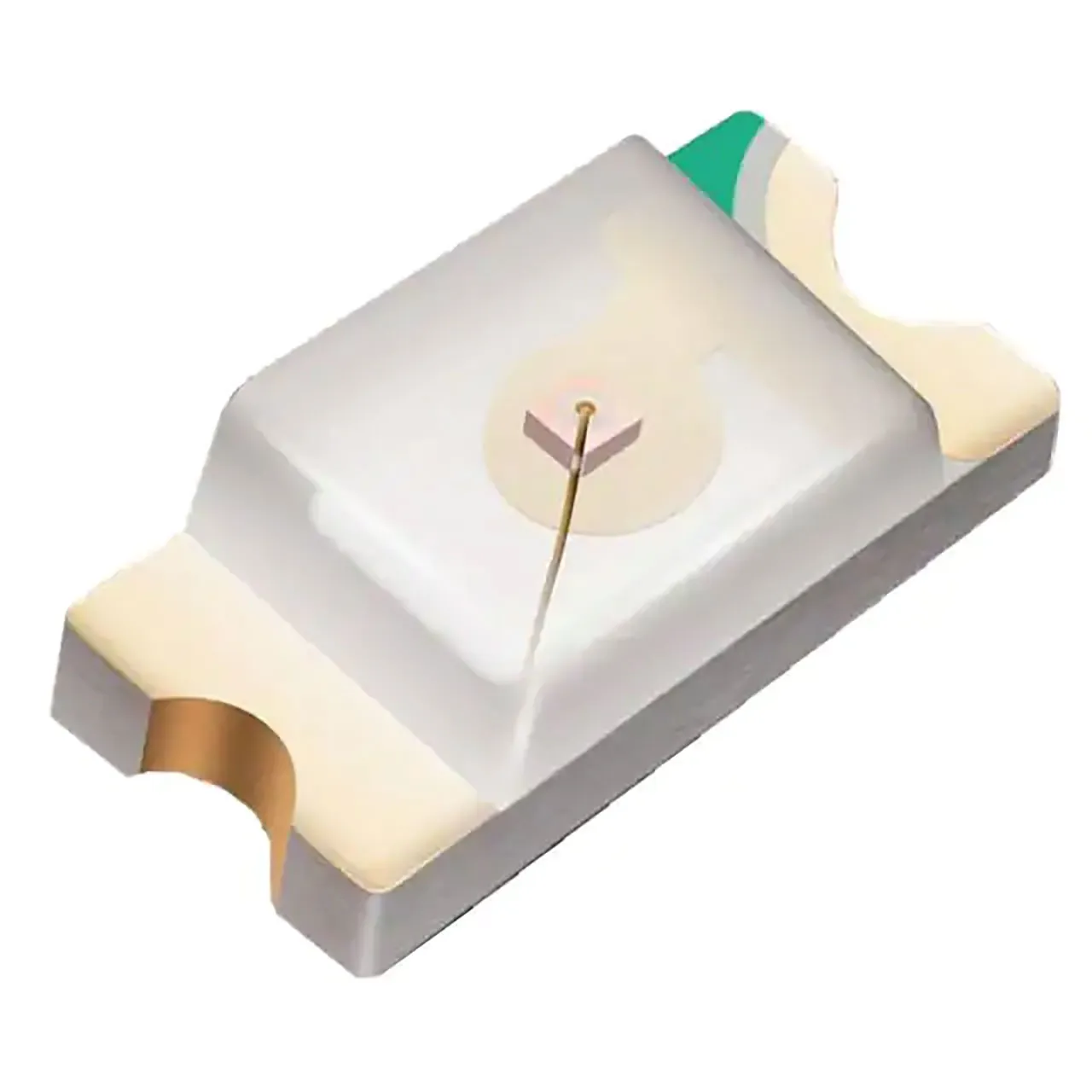

Green 520nm LED Indicator Discrete 3.2V 0603 (1608 Metric)

Features

  • Color: Green
  • Configuration: Standard
  • Lens Color: Colorless
  • Lens Transparency: Clear
  • Millicandela Rating: 300 mcd
  • Lens Style: Rectangle with Flat Top
  • Lens Size: 1.60 mm x 0.80 mm
  • Voltage - Forward (Vf) (Typ): 3.2 V
  • Current - Test: 20 mA
  • Viewing Angle: 130°
  • Mounting Type: Surface Mount
  • Wavelength - Dominant: 520 nm
  • Package: 0603 (1608 Metric)
  • Size: 1.60 mm L x 0.80 mm W
  • Height (Max): 0.60 mm

Product Identification

Product Type:SMD LED

Dimensions & Appearance

Color:Green
Height:0.60 mm
Width:0.80 mm
Length:1.60 mm
Mounting:SMD

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Packaging

Package:0603
Packaging:Tape & Reel

Features

Maximum Processing Temperature:260
Lens Shape Type:Rectangular
Reverse Voltage:5 V
LED Material:InGaN/Sapphire
Peak Wavelength:520 mn
Typical Forward Current:20 mA
Lens Type:Water Clear
Viewing Angle:130°
Typical Forward Voltage:3.2 V
Power Dissipation:120 mW
Luminous Intensity:300 mcd
,
